Product Overview

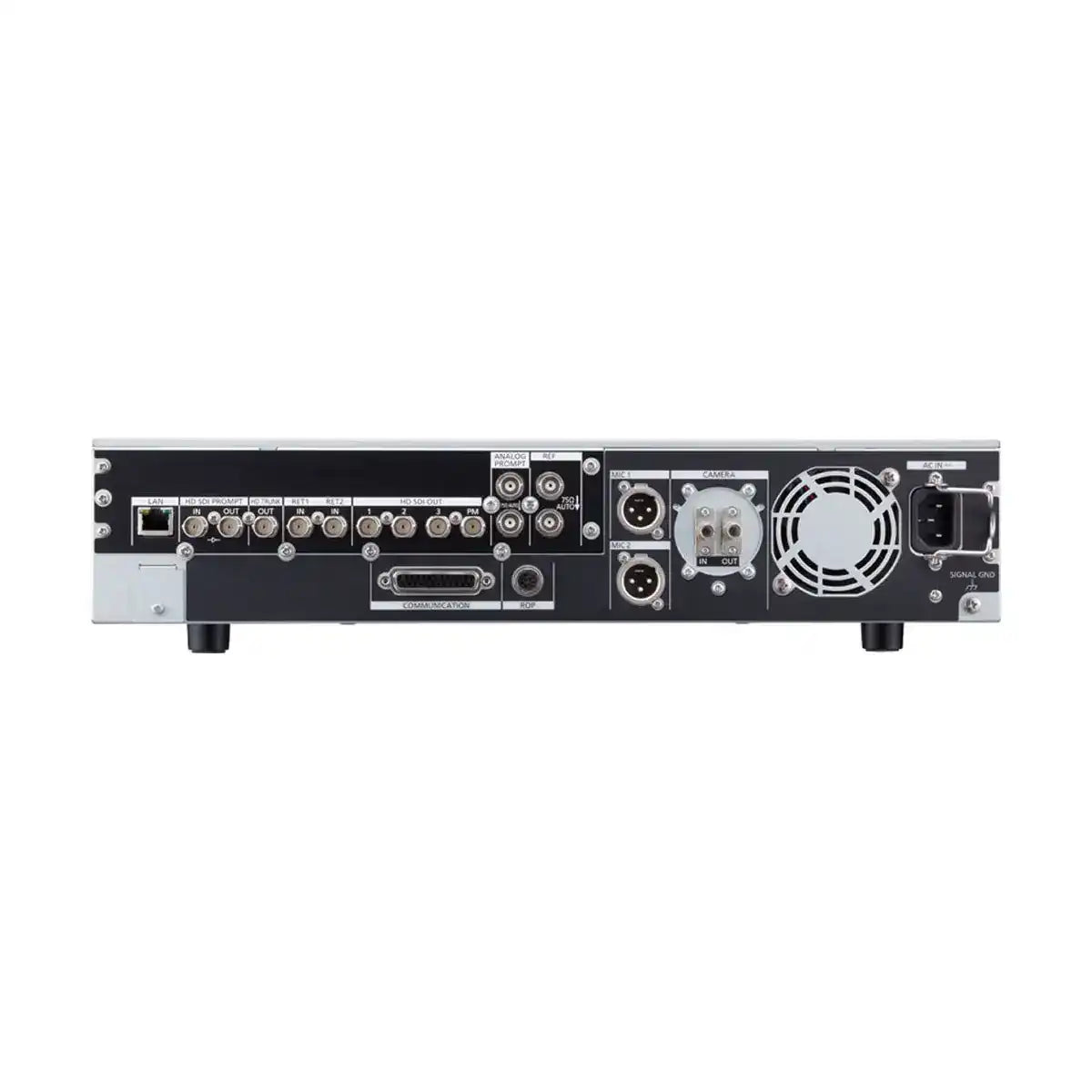

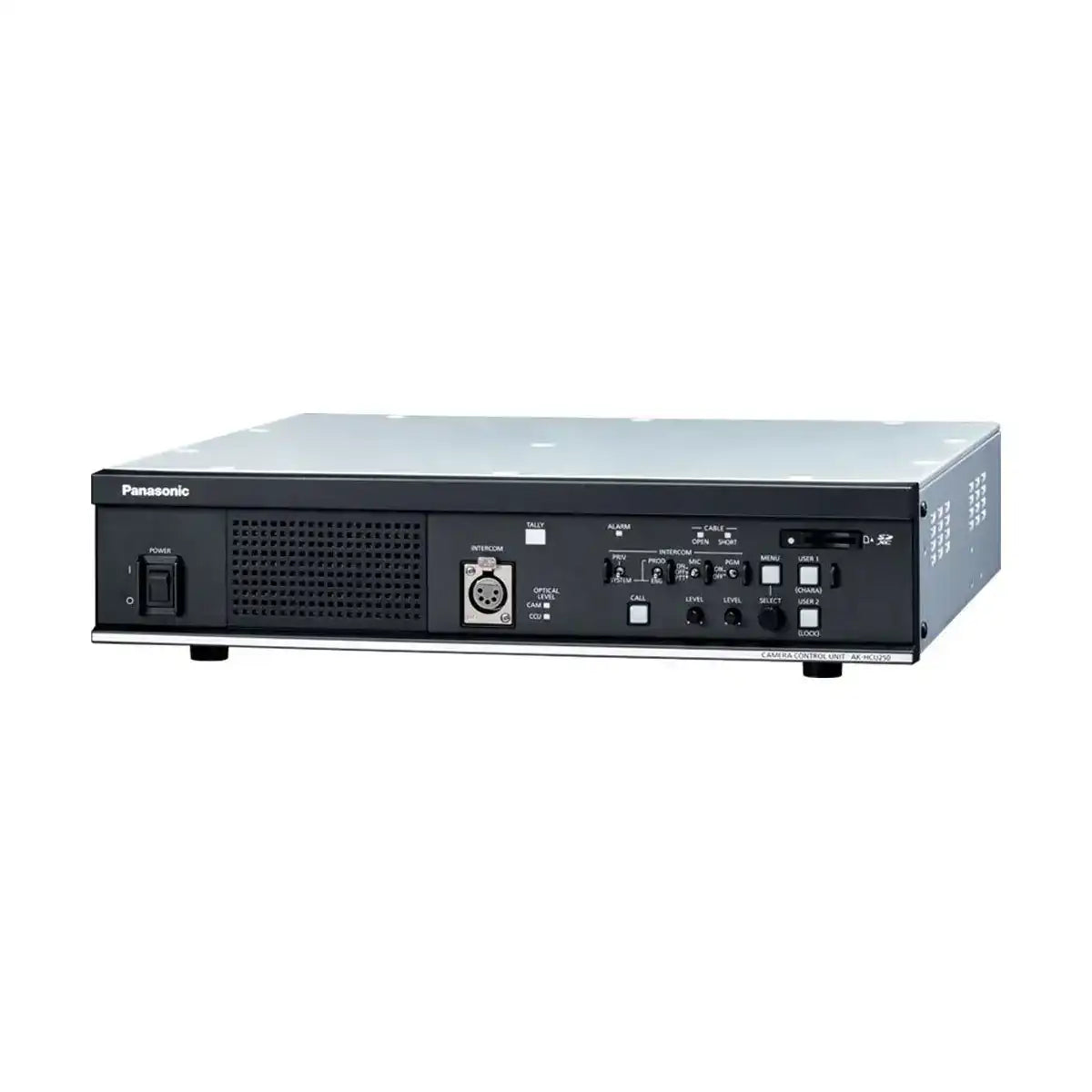

The Panasonic AK-HCU250PSJ is a rack-mount camera control unit (CCU) that manages long-distance optical transmission between a compatible Panasonic studio camera and the control room. Built into a compact 2U, rack-mountable chassis with a LEMO connector interface, it delivers 12G-SDI and 3G-SDI Quad Link 4K output and is designed for broadcast studio and live production environments where reliable long-cable performance is critical. This is the black-finish configuration.
Product Description
The AK-HCU250PSJ supports stable video signal transmission over long distances, with 12G-SDI and 3G-SDI Quad Link outputs available when configured for 4K. It includes RET input across two SDI channels, one intercom line, and two audio lines for production communication, plus 3G trunk and 3G prompter circuits between the camera and CCU to preserve signal integrity and minimize latency in live environments. The unit supplies camera power and integrates into multi-camera studio systems controlled from Panasonic remote operation panels. It pairs with Panasonic studio cameras such as the AK-HC3900 HDR studio camera system and the IP-ready AK-UCX100 4K studio camera. Note that a 4K/12G-SDI Interface Kit AK-HUC01 (sold separately) is required for 4K operation.
Key Features
- Long-Distance Transmission — Optical transmission between camera and CCU supports extended cable runs in large facilities.
- Compact 2U Rack-Mount — A space-efficient chassis fits standard equipment racks in control rooms and OB environments.
- 12G-SDI and 3G-SDI Quad Link — 4K output is supported with the AK-HUC01 interface kit for high-resolution workflows.
- RET Input — Two SDI return channels give camera operators flexible monitoring and feedback.
- Intercom and Audio — One intercom line and two audio lines support production communication.
- Trunk and Prompter Circuits — 3G trunk and 3G prompter paths between camera and CCU maintain signal integrity with low latency.
- LEMO Connector Interface — A robust hybrid connection between camera and CCU for power and signal.
Typical Applications
- Broadcast studio — Core of a multi-camera studio chain managing transmission and camera control.
- House of worship — Supports multi-camera worship broadcast with long cable runs to a control room.
- Auditorium — Connects stage-side studio cameras to a centralized production area.
- Government space — Fits chamber and legislative production systems requiring reliable camera control.
Technical Specifications
| Model | AK-HCU250PSJ |
|---|---|
| Brand | Panasonic |
| Type | Camera Control Unit (CCU) |
| Form Factor | 2U, rack-mountable |
| Camera Interface | LEMO connector, long-distance optical transmission |
| Video Output | 12G-SDI and 3G-SDI Quad Link (4K with AK-HUC01 upgrade) |
| Return Input | RET input, two SDI channels |
| Communication | One intercom line; two audio lines |
| Trunk / Prompter | 3G trunk and 3G prompter circuits between camera and CCU |
| Camera Power Supply | DC 190V at 0.6A |
| Finish | Black |
| In the Box | AK-HCU250PSJ control unit; Panasonic 1-year limited warranty |
| Required for 4K | AK-HUC01 4K/12G-SDI interface kit (sold separately) |
Specifications sourced from Panasonic / vendor data. Exact dimensions, weight, mains power input, and the full list of compatible camera heads require manual review against the current Panasonic AK-HCU250PSJ spec sheet.
Frequently Asked Questions
Which cameras work with the AK-HCU250PSJ? It is designed for compatible Panasonic studio camera heads using the LEMO optical interface; confirm the specific camera model and firmware with Creation Networks before ordering.
Is 4K output included? 12G-SDI and 3G-SDI Quad Link 4K output requires the AK-HUC01 4K/12G-SDI interface kit, sold separately.
How is it mounted? The unit is 2U and rack-mountable, fitting standard control-room and OB equipment racks.
Does it carry intercom and prompter signals? Yes. It provides one intercom line, two audio lines, and dedicated 3G trunk and prompter circuits between the camera and CCU.
What warranty applies? The unit ships with a Panasonic 1-year limited warranty; confirm extended coverage options with Creation Networks.
