Panasonic AK-HC3900 1080p HDR studio camera system
Panasonic AK-HC3900 1080p HDR studio camera system is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.

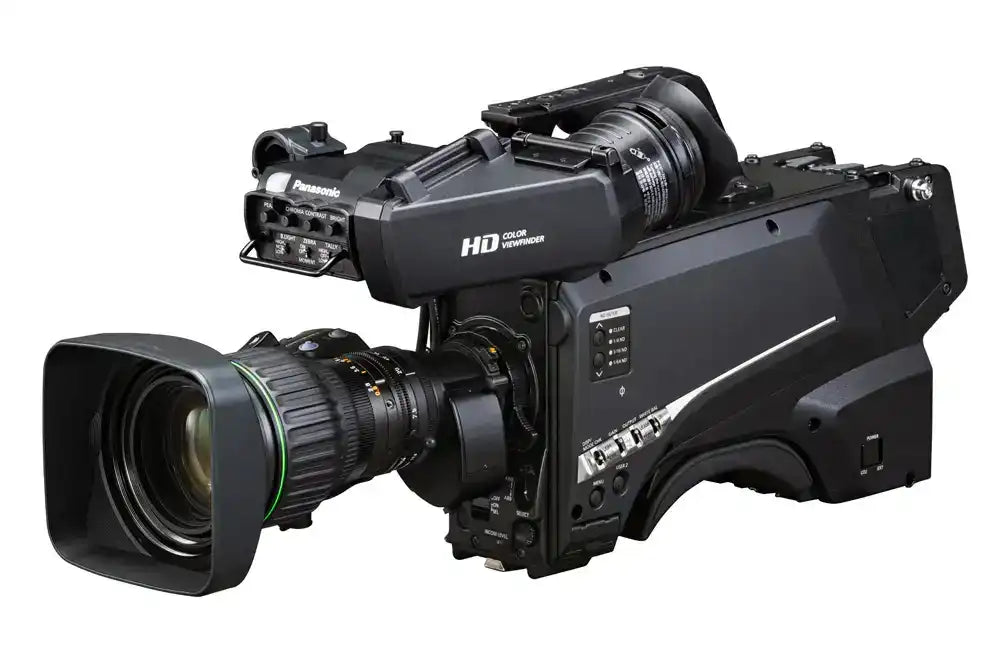

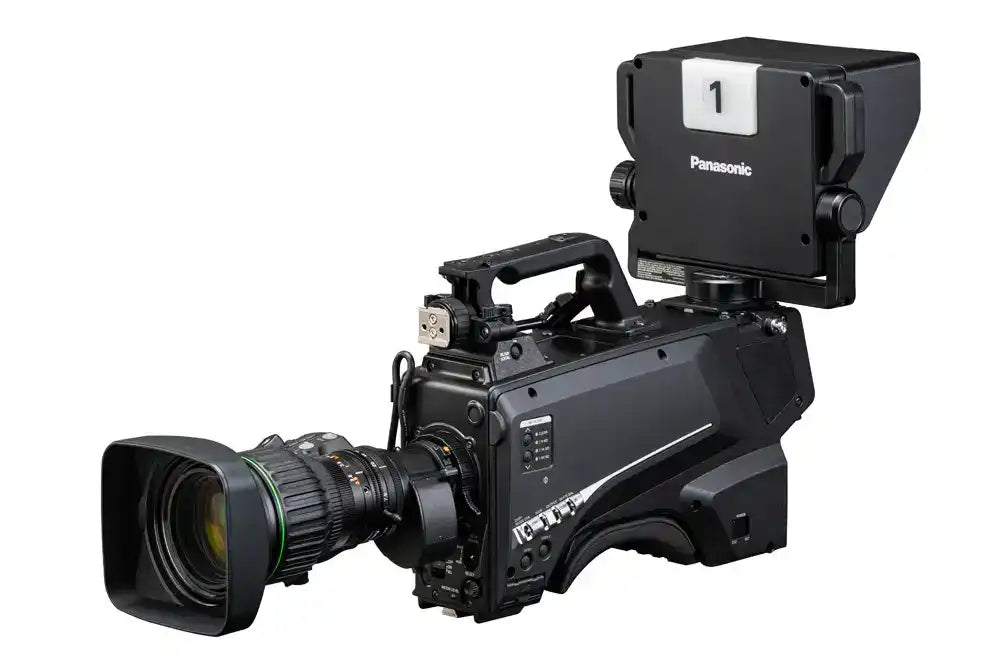

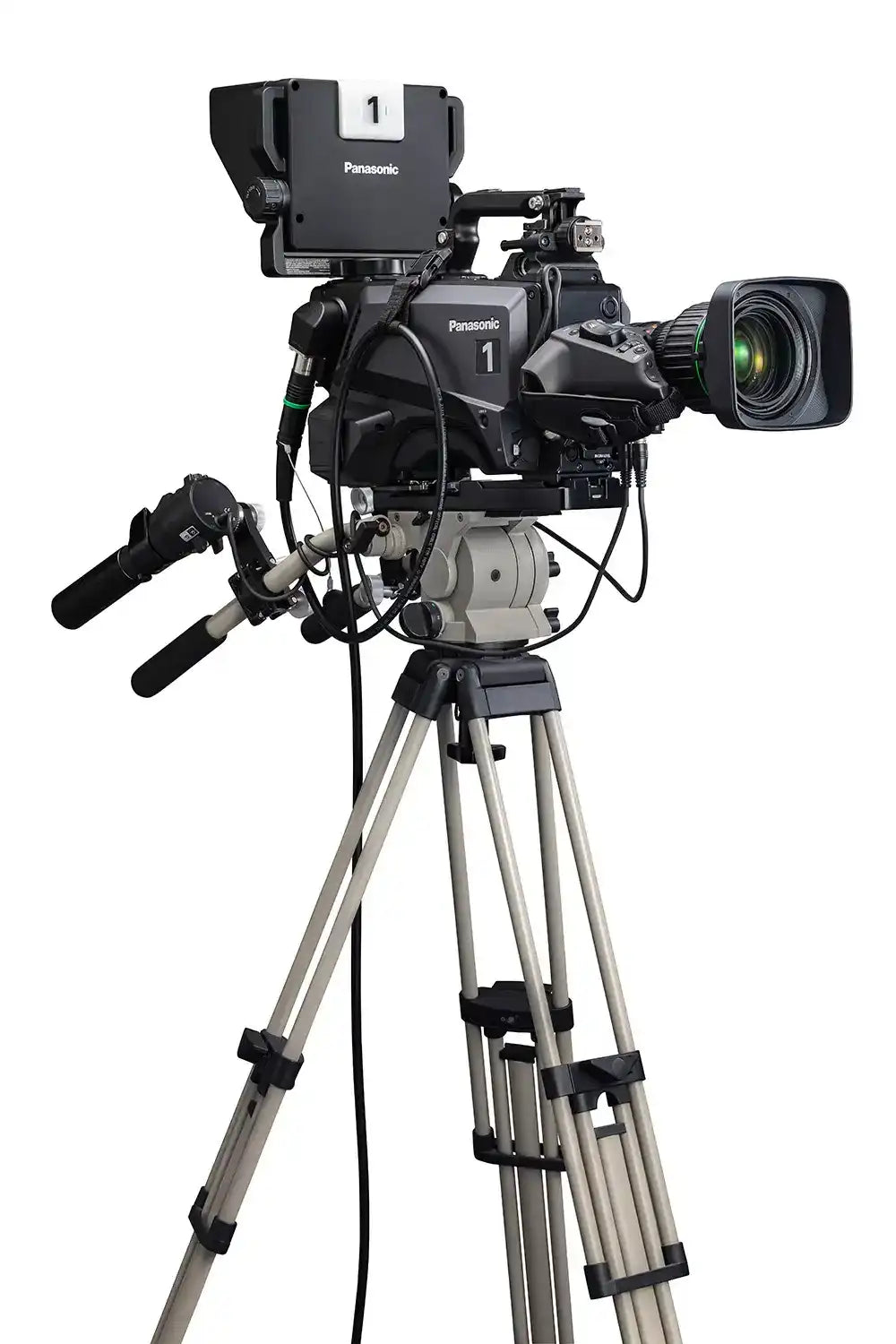

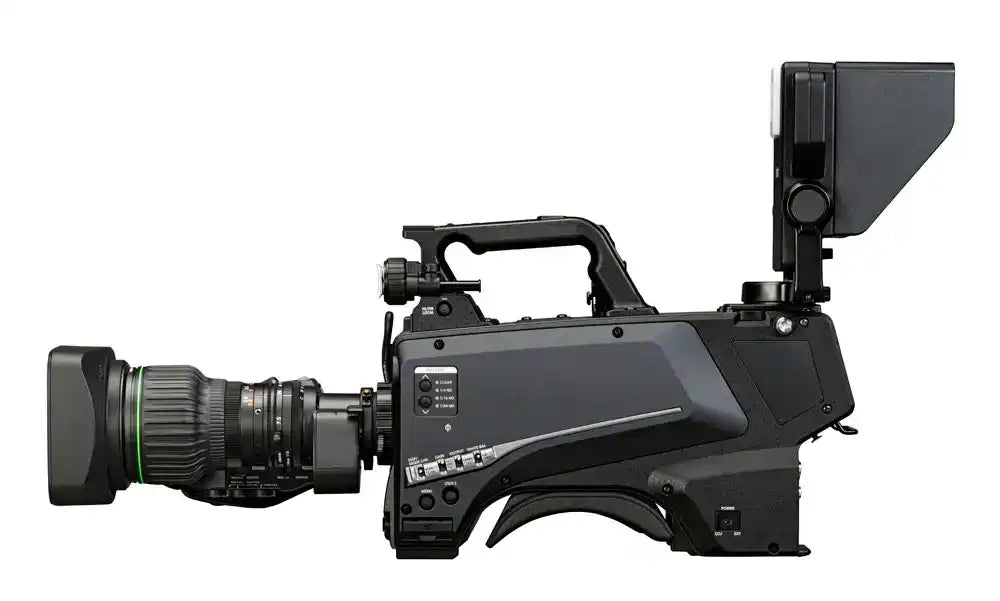

Panasonic AK-HC3900 1080p HDR studio camera system
Product Overview

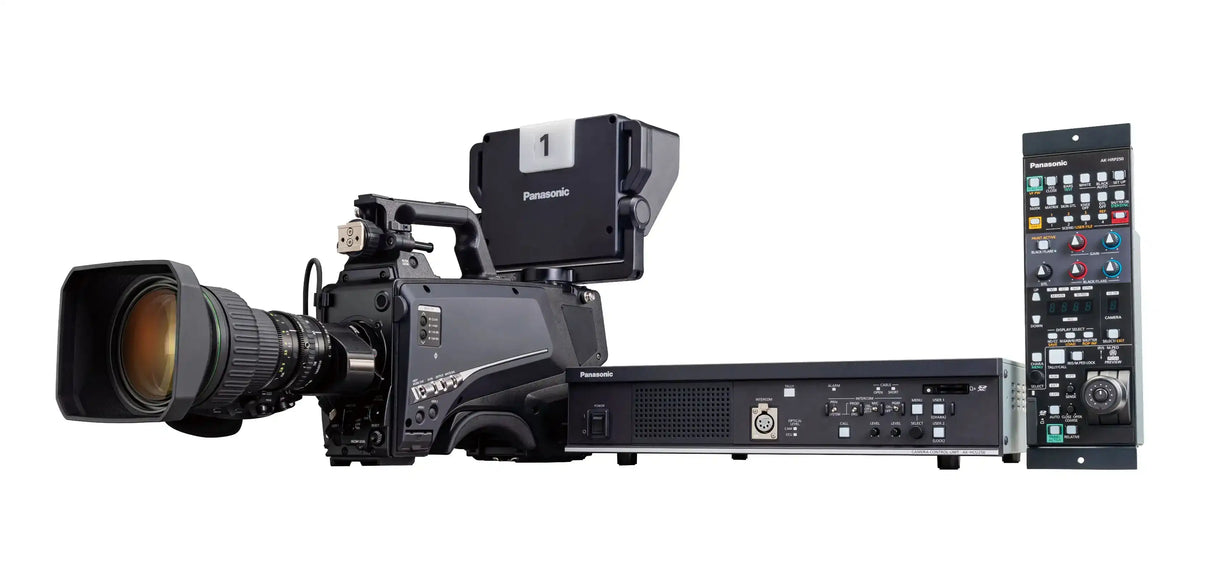

The Panasonic AK-HC3900 is a 1080p HDR studio camera system built for broadcast studios, live events, higher education and corporate production. A large 4K-CMOS imaging system captures internally to deliver HD HDR images with ITU-R BT.2020 wide color, and the camera is upgradable to native 4K 60p/50p. Paired with the AK-HCU250 camera control unit and a remote operation panel, it forms a cost-effective long-distance fiber studio camera system.
Product Description
The AK-HC3900 draws its image from an internal 4K sensor, achieving high sensitivity of F10 at 59.94 Hz and a 62 dB signal-to-noise ratio with a built-in motorized ND filter. Simultaneous HDR/SDR output and expanded multi-format support (1080 at 59.94p/50p/59.94i/50i/PsF rates, plus 720 at 59.94p/50p) suit mixed-delivery workflows, while an optional kit upgrades the system to native 4K with 2,000 TV-line horizontal resolution. Combined with the cost-effective AK-HCU250PSJ camera control unit, the head connects over optical fiber or SMPTE hybrid cable for uncompressed video, control and power. For 4K-native acquisition, the store also carries the AK-UC3300 and AK-UC4000 system cameras.
Key Features
- Large 4K-CMOS Sensor — 11.14-megapixel MOS imager delivers high sensitivity and low noise from internal 4K capture.
- High Sensitivity and Low Noise — F10 at 59.94 Hz and a 62 dB S/N ratio in High Sense mode for demanding studio lighting.
- Simultaneous HDR/SDR — Outputs HDR and SDR together, with BT.709 in HD and BT.2020 in 4K mode.
- 4K Upgrade Path — Optional kit enables native 4K 60p/50p with 2,000 TV-line horizontal resolution.
- Fiber Studio System — Connects to the AK-HCU250 CCU over optical fiber or SMPTE hybrid cable for video, control and power.
- Image Processing — CAC, skew reduction, DRS and a 2x digital extender support clean live imagery.
- Built-In Motorized ND — Clear, 1/4, 1/16 and 1/64 ND positions for fast exposure control.
Typical Applications
- Broadcast studio multi-camera production
- Auditorium and house of worship live capture
- Training rooms and university lecture/event production
- All-hands rooms and corporate broadcast spaces
Technical Specifications
| Camera Type | 1080p HDR studio camera, internal 4K capture, 4K upgradable |
|---|---|
| Pickup Device | 11.14-megapixel MOS sensor |
| Lens Mount | 2/3-type bayonet |
| Sensitivity | High Sens: F10 (59.94 Hz) / F11 (50 Hz); Normal: F6 (59.94 Hz) / F7 (50 Hz) |
| S/N Ratio | 62 dB or above |
| Horizontal Resolution | HD: 1000 TV lines or above; 4K: 2000 TV lines or above (with AK-HUC01) |
| Optical ND Filter | Clear, 1/4, 1/16, 1/64 |
| Formats | 1920 x 1080 at 59.94p/50p/29.97p/25p/23.98p; 3840 x 2160 with AK-HUC01 |
| Video I/O | 2x HD-SDI (3G/1.5G) BNC, 1x AUX BNC (SDI/VBS switchable) |

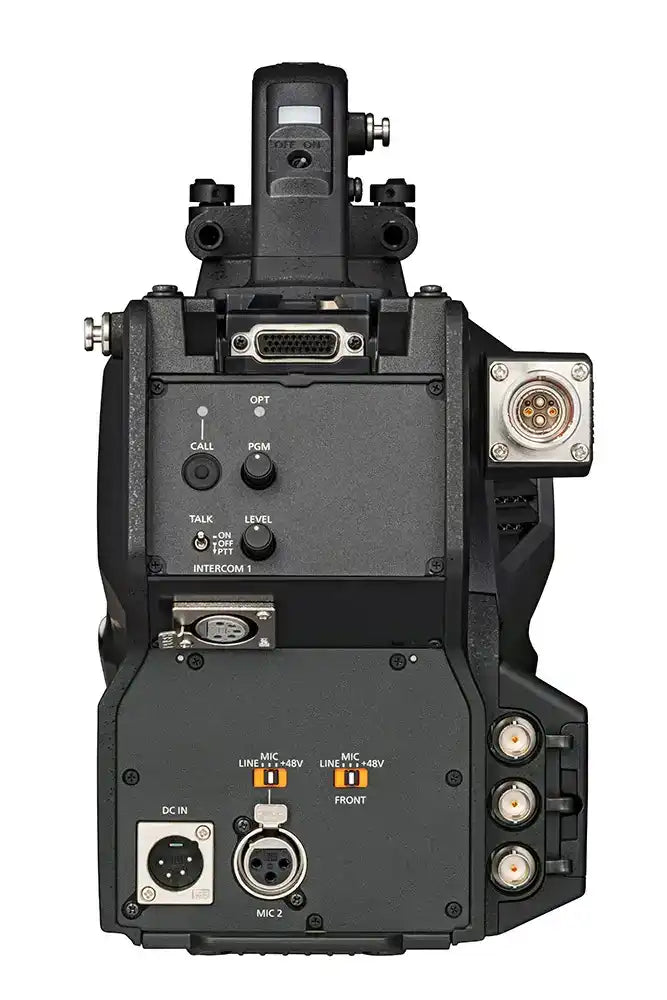

| Other I/O | Optical fiber composite, 12-pin lens, VF, DC IN (XLR 4-pin 12 V), RJ-45 LAN, intercom XLR 5-pin |
| Power Supply | DC 12 V (external) or DC 190 V via AK-HCU250 CCU |
| Power Consumption | 82 W (external 12 V) / 92 W (with AK-HCU250) |
| Dimensions (W x H x D) | 151 x 267 x 369 mm (excluding protrusions) |
| Weight | Approx. 4.0 kg (8.80 lb), body only |
Specifications sourced from Panasonic / vendor data. 4K upgrade-kit dependencies (AK-HUC01) and exact CCU/ROP pairing require manual review against the current Panasonic AK-HC3900 spec sheet before specifying.
Competitor Comparison
| Criteria | Panasonic AK-HC3900 | Sony HDC-3500 | Grass Valley LDX 100 |
|---|---|---|---|
| Native acquisition | 1080p HDR with internal 4K capture, optional 4K upgrade | Native 4K 3-chip 2/3-inch system camera | Native 4K/UHD CMOS system camera |
| Sensor | Single large 4K-CMOS MOS imager | Three 2/3-inch 4K CMOS sensors | Single large-format CMOS imager |
| Sensitivity | F10 (59.94 Hz) in High Sense mode | F10 class, very high sensitivity | High sensitivity, varies by mode |
| HDR workflow | Simultaneous HDR/SDR, BT.2020 in 4K | Simultaneous HDR/SDR with SR Live | HDR via Creative Grading workflow |
| Transmission | Optical fiber / SMPTE hybrid via AK-HCU250 | SMPTE fiber via HDCU control unit | SMPTE fiber / IP via base station |
| Upgrade path | Cost-effective HD now, 4K kit later | 4K native from the outset | Native 4K, license-based feature scaling |
| Best fit | Budget-aware studios wanting a 4K migration path | Top-tier broadcast 4K studios | 4K/IP-forward broadcast facilities |
Frequently Asked Questions
Is the AK-HC3900 a 4K camera? It captures internally in 4K and outputs 1080p HDR; an optional kit (AK-HUC01) enables native 4K 60p/50p with 2,000 TV-line resolution.
What control unit does it need? It pairs with the AK-HCU250 camera control unit and a remote operation panel for a fiber-based studio system carrying video, control and power.
How does it connect over long distances? The head links to the CCU over optical fiber or SMPTE hybrid cable, supporting long-distance studio and venue runs.
Does it support HDR and SDR at the same time? Yes. The system outputs HDR and SDR simultaneously, with BT.709 in HD and BT.2020 in 4K mode.
What warranty and support apply? The camera is backed by Panasonic professional broadcast warranty and support; confirm current terms at the time of purchase.
