Panasonic 3x AW-UE160 PTZ Cameras w/ FREE AW-RP150 Controller (Black)
Panasonic 3x AW-UE160 PTZ Cameras w/ FREE AW-RP150 Controller (Black) is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Panasonic 3x AW-UE160 PTZ Cameras w/ FREE AW-RP150 Controller (Black)
Product Overview

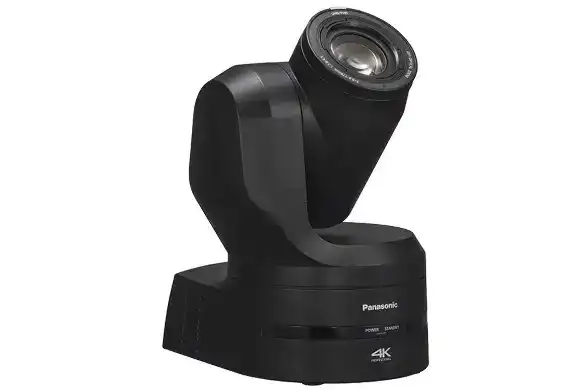

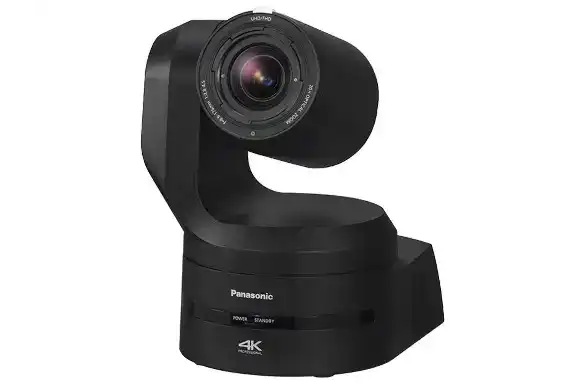

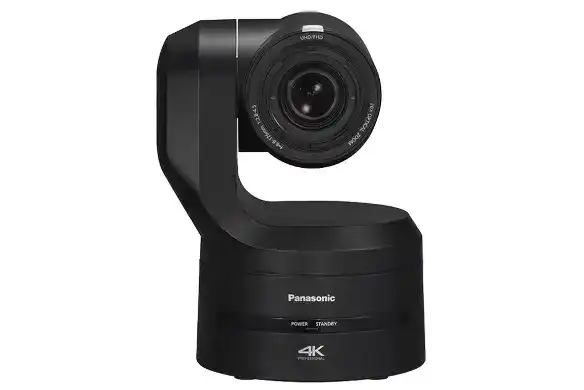

The Panasonic AW-UE160 PTZ camera bundle pairs three AW-UE160 4K PTZ cameras (black) with a free AW-RP150 touchscreen remote camera controller, delivering a complete multi-camera package for broadcast studios, houses of worship, and large commercial meeting spaces. Built around Panasonic's highest-sensitivity 1-inch 4K MOS sensor, this broadcast PTZ camera system captures clean images in difficult lighting while one operator manages all three heads from a single panel. It is a turnkey 4K PTZ camera kit with controller for venues standardizing on remote-operated production cameras.
Product Description

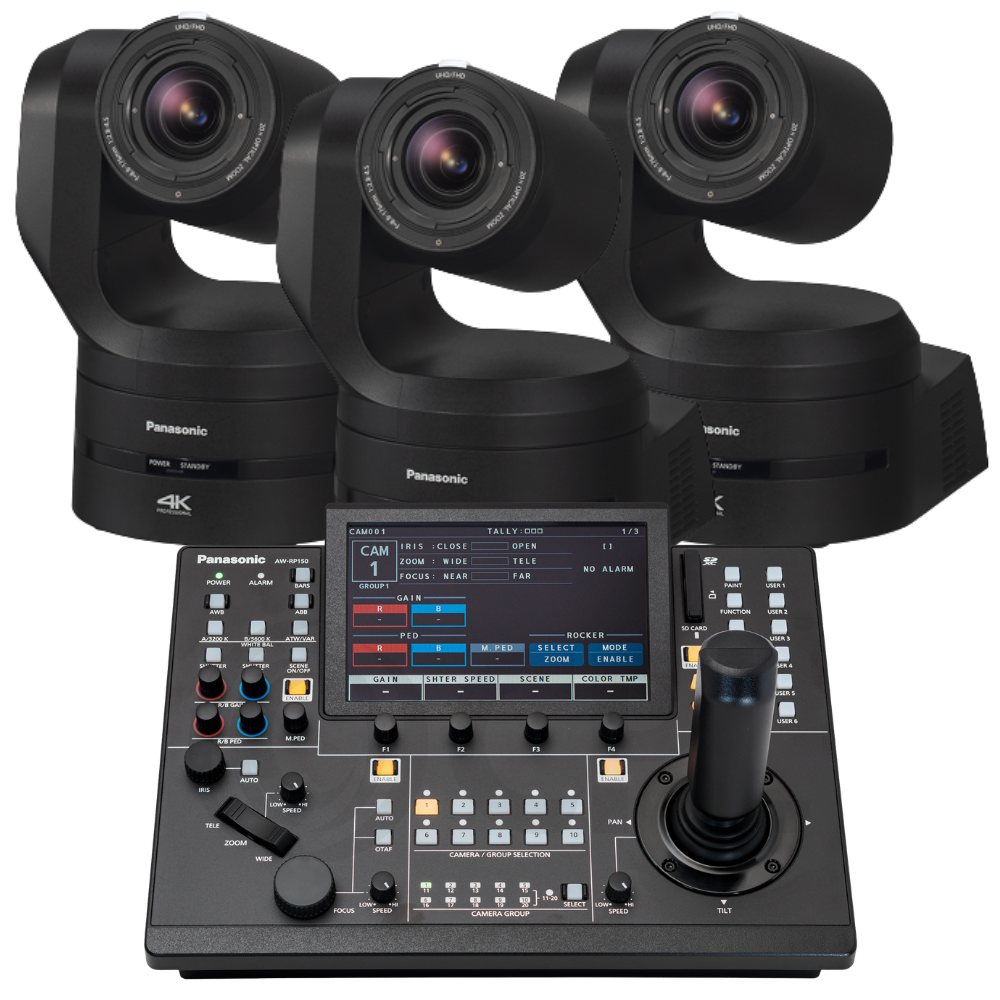

This package consists of three AW-UE160 cameras and one AW-RP150 controller, configured for live multi-camera switching out of the box. The AW-UE160's 1-inch 4K MOS sensor and 20x optical zoom (F2.8–F4.5, 24.5–490 mm 35 mm-equivalent) suit long throws in auditoriums and worship rooms, while the optical low-pass filter reduces moiré against LED video walls in rental and staging environments. Each head accepts PoE++ (IEEE 802.3bt) for single-cable power and data, simplifying rigging and rack-mount infrastructure. The bundled AW-RP150 provides joystick PTZ control, preset recall, and IP-based management for all three cameras, and the system scales further with additional Panasonic controllers such as the AW-RP60. Integrators standardizing a fleet can mix this kit with single AW-UE160 heads, step down to the AW-UE150A, or add the streaming-focused AW-UE100. A matching pearl white bundle is available for bright-finish rooms.
Key Features
- Three 4K PTZ Cameras Plus Controller — The package includes three AW-UE160 heads and one AW-RP150 controller for immediate multi-camera deployment.
- 1-Inch 4K MOS Sensor — Approximately 9.62 million effective pixels deliver Panasonic's highest PTZ-line sensitivity for clean low-light capture.
- 20x Optical Zoom — An F2.8–F4.5 lens covering a 24.5–490 mm 35 mm-equivalent range reaches distant subjects in large venues.
- Optical Low-Pass Filter — Reduces moiré when shooting against LED walls in rental, staging, and worship settings.
- PoE++ Power and Control — IEEE 802.3bt support allows single-cable power and data to each camera for cleaner installations.
- Centralized Operation — The AW-RP150 manages preset recall, joystick control, and IP configuration across the fleet.
Typical Applications
- House of worship multi-camera services
- Broadcast studio and all-hands rooms
- Auditorium and large commercial meeting spaces
- Training rooms and multi-purpose rooms with remote production
Technical Specifications
| Bundle Contents | 3x AW-UE160 (black) + 1x AW-RP150 controller |
|---|---|
| Imaging Sensor | 1-type (1") 4K MOS, approx. 9,620,000 effective pixels |
| Optical Zoom | 20x, F2.8–F4.5, f=8.8–176.0 mm (24.5–490.0 mm 35 mm-equivalent) |
| Optical Filter | Through, 1/4, 1/16, 1/64; low-pass filter equipped |
| Minimum Illumination | 2 lx (F2.8, 59.94p, 50 IRE, +42 dB) |
| Gain | Auto, 0 dB to 36 dB (1 dB steps) |
| Power | 12 V DC ±10%; PoE++ (IEEE 802.3bt) |
| Current Consumption | 5.0 A (XLR IN), 1.5 A (PoE++) |
| Operating Temperature | 0 °C to +40 °C (32 °F to 104 °F) |
| Mass (per camera) | Approx. 4.6 kg (10.14 lb), excluding mount bracket |
| Supported Controllers | AW-RP150, AW-RP60, AK-HRP1010, AK-HRP1015, AK-HRP250 |
Specifications sourced from Panasonic / vendor data. Video output interfaces (12G-SDI / 3G-SDI / HDMI), NDI and SMPTE ST 2110 / IP capabilities, and the complete list of supported frame rates require manual review against the current Panasonic AW-UE160 spec sheet.
Competitor Comparison
| Criteria | Panasonic AW-UE160 | Sony BRC-X1000 | Canon CR-N700 |
|---|---|---|---|
| Sensor | 1-inch 4K MOS, approx. 9.62 MP, highest sensitivity in Panasonic's PTZ line | 1-inch Exmor R CMOS, a mature 1-inch broadcast PTZ option | 1-inch CMOS, strong color science from Canon's broadcast lineage |
| Optical Zoom | 20x optical reaching 490 mm equivalent for long auditorium throws | 12x optical, shorter reach in large venues | 15x optical, between the two for mid-size rooms |
| Low-Light Floor | 2 lx minimum illumination for dim worship and stage settings | Roughly 1.7 lx, comparable dim-room performance | Around 0.003 lx in low-light mode but with noise trade-offs |
| LED Wall Handling | Optical low-pass filter specifically reduces moiré on LED walls | Relies on processing rather than a dedicated low-pass filter | Processing-based moiré control, no equivalent optical filter callout |
| Power | PoE++ (802.3bt) plus 12 V DC for single-cable rigging | Typically external DC, fewer single-cable options at this tier | PoE+ supported, lower power budget than 802.3bt |
| Bundle Value | Three heads plus AW-RP150 controller in one package | Sold individually; controller purchased separately | Sold individually; controller purchased separately |
Frequently Asked Questions
Does the bundle include everything needed to start switching cameras? The package provides three AW-UE160 heads and one AW-RP150 controller. You supply mounts, network switching infrastructure (PoE++ capable), and cabling appropriate to your room.
How are the cameras powered and controlled? Each AW-UE160 accepts PoE++ (IEEE 802.3bt) for single-cable power and data, or 12 V DC. The AW-RP150 manages PTZ, presets, and configuration over IP.
Will it integrate with our existing Panasonic control infrastructure? The AW-UE160 supports AW-RP150, AW-RP60, AK-HRP1010, AK-HRP1015, and AK-HRP250 controllers, so the cameras can join an existing Panasonic remote-operation system.
Can I mix camera finishes? Yes. Black and pearl white AW-UE160 heads can be combined within the same system; a white bundle is available separately.
What warranty applies? Coverage follows Panasonic's standard professional warranty for the AW-UE160 and AW-RP150; confirm current terms and any extended-warranty options at the time of purchase.
