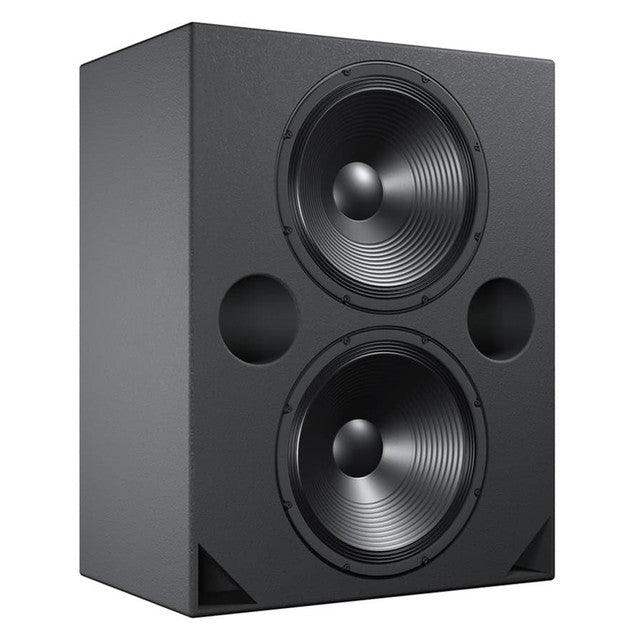

Meyer Sound X-800C 2x18" Active Cinema Subwoofer - 09.087.001.11

Product Overview

The Meyer Sound X-800C is a high-power, self-powered cinema subwoofer that delivers very low frequencies with ample headroom for the low-frequency effects (LFE) channel and screen channel low-end support. Built around two 18-inch drivers, it reproduces clean, punchy transients down to 20 Hz with a 133 dB linear peak SPL. Excellent phase coherence allows smooth transitions from the screen channels to the LFE channel. It is intended for motion picture theaters, residential cinema, and production and postproduction facilities requiring extended bandwidth and very low distortion.

Product Description

The X-800C houses two Meyer Sound long-excursion, high-efficiency 18-inch drivers in an optimally tuned, vented cabinet. Its output rolls off well below 250 Hz to avoid comb-filtering effects when multiple X-800C subwoofers are arrayed. An integral two-channel class AB/H amplifier with complementary MOSFET output stages supplies 1240 W, with TruPower limiting on each channel to maximize reliability and minimize power compression. The Intelligent AC power supply provides automatic voltage selection, EMI filtering, soft turn-on, and surge suppression, while onboard processing applies phase and frequency correction. It pairs with ACHERON screen channels such as the ACHERON-100 and ACHERON-80, and complements the more compact X-400C cinema subwoofer. Additional Meyer Sound cinema products are available in the Meyer Sound collection. The optional RMS remote monitoring system reports loudspeaker parameters to a computer running Compass control software.

Key Features

• Dual 18-inch Drivers — Two long-excursion, high-efficiency 18-inch cone drivers in a tuned, vented cabinet deliver high-output low frequencies.
• Extended Low Frequency — Reproduces clean, punchy transients down to 20 Hz even at very high levels.
• High Output — A 133 dB linear peak SPL (M-noise) provides ample headroom for the most demanding digital soundtracks.
• Array-Friendly Roll-Off — Output rolls off well below 250 Hz to avoid comb-filtering effects when multiple units are arrayed.
• TruPower Limiting — Each amplifier channel features TruPower limiting to maximize reliability, minimize power compression, and extend component life.
• Class AB/H Amplification — An integral two-channel class AB/H amplifier supplies 1240 W with distortion below 0.02 percent.
• Optional RMS Monitoring — The optional RMS remote monitoring system reports operating parameters to a computer running Compass software.

Typical Applications

• Auditorium
• Broadcast studio
• Multi-purpose room

Technical Specifications

Specifications sourced from Meyer Sound. Subject to change without notice.

Competitor Comparison

Frequently Asked Questions

Is the X-800C self-powered?
Yes. It includes an integral two-channel class AB/H amplifier with TruPower limiting and an Intelligent AC power supply, so no external amplifier is required.

How low does the X-800C extend?
It delivers extended low-frequency output down to 20 Hz with clean, punchy transients even at very high levels.

Can multiple X-800C subwoofers be arrayed?
Yes. Its output rolls off well below 250 Hz to avoid adverse comb-filtering effects generated by the proximity of other X-800C subwoofers in arrays.

How does the X-800C compare to the X-400C?
The X-800C uses two 18-inch drivers for higher output in larger rooms, while the X-400C uses a single 18-inch driver in a more compact cabinet for smaller installations.

Is the X-800C covered by a warranty?
Yes, it is covered under Meyer Sound's standard product warranty. For details, please contact us.
