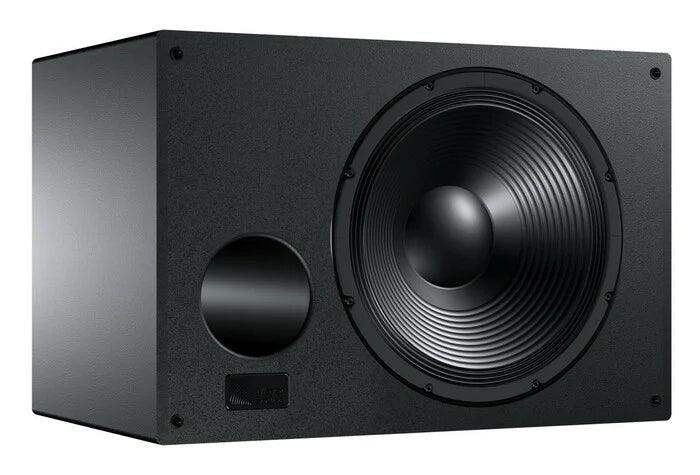

Product Overview
The Meyer Sound X-400C is a compact, self-powered cinema subwoofer that boosts low-frequency headroom in cinema applications and other fixed installations. Built around a single 18-inch long-excursion driver, it reproduces clean, punchy transients down to 20 Hz with a 127.5 dB linear peak SPL and excellent phase coherence. It offers sonic characteristics similar to the larger X-800C in a more compact cabinet that can be installed singly or as multiple units. It is intended for motion picture theaters, residential cinema, and production and postproduction facilities.
Product Description
The X-400C comprises a single 18-inch low-frequency, long-excursion cone driver in an optimally tuned, vented cabinet powered by a single-channel amplifier producing 900 W peak. Onboard processing includes driver protection, low-pass filtering, and correction filters for flat phase and frequency response, and a switchable -7.5 dB input pad reduces upstream noise when the unit is close to listeners. The Intelligent AC power supply provides automatic voltage selection, EMI filtering, soft turn-on, and surge suppression. It integrates with ACHERON screen channel loudspeakers such as the ACHERON-100 and HMS surround loudspeakers, and complements the higher-output X-800C cinema subwoofer in larger rooms. Additional Meyer Sound cinema products are available in the Meyer Sound collection. An optional grille frame with black cloth is available, and the optional RMS remote monitoring system reports loudspeaker parameters to a computer running Compass control software.
Key Features
- Single 18-inch Driver — A single long-excursion 18-inch cone driver in a tuned, vented cabinet delivers high-output low frequencies in a compact form.
- Extended Low Frequency — Reproduces clean, punchy transients with extended low-frequency response down to 20 Hz.
- Compact Cabinet — Offers sonic characteristics similar to the X-800C in a more compact cabinet that can be installed singly or in multiples.
- Switchable Input Pad — A -7.5 dB input pad reduces upstream noise when the subwoofer is in close proximity to listeners.
- Low Distortion — Distortion below 0.02 percent provides exceptional low-frequency clarity.
- Cinema Integration — Integrates with ACHERON screen channel loudspeakers and HMS surround loudspeakers.
- Optional RMS Monitoring — The optional RMS remote monitoring system reports operating parameters to a computer running Compass software.
Typical Applications
- Auditorium
- Broadcast studio
- Multi-purpose room
Technical Specifications
| Operating Frequency Range | 20 Hz – 200 Hz |
| Frequency Response | 23 Hz – 160 Hz ±4 dB |
| Phase Response | 32 Hz – 175 Hz ±30° |
| Linear Peak SPL | 127.5 dB (M-noise, crest factor >11.5 dB); 127.5 dB (pink noise); 131.5 dB (B-noise) |
| Transducer | One 18-inch long-excursion cone driver; 4 Ω nominal |
| Amplifier | Single channel; 900 W peak |
| Cooling | Convection |
| Audio Input | Differential, electronically balanced; XLR 3-pin female input with male loop output; switchable -7.5 dB pad |
| AC Power Connector | powerCON 20 input with loop output |
| Dimensions | W 31.00 in (787 mm) x H 20.65 in (525 mm) x D 20.79 in (528 mm) |
| Weight | 85 lb (38.6 kg) |
| Enclosure | Premium multi-ply birch with slightly textured black finish |
Specifications sourced from Meyer Sound. Subject to change without notice.
Competitor Comparison
| Criterion | Meyer Sound X-400C | JBL 4642A |
| Amplification | The X-400C is self-powered with an integral single-channel amplifier and onboard correction filters. | The JBL 4642A is a passive cinema subwoofer that requires an external amplifier and processor. |
| Driver Configuration | It uses a single 18-inch long-excursion driver in a compact tuned, vented cabinet. | The 4642A also uses a single 18-inch driver but in a larger passive enclosure. |
| Onboard Processing | The X-400C includes built-in low-pass and correction filters and a switchable input pad. | The 4642A relies on external DSP and amplifier settings configured by the installer. |
| Installation | The self-powered design simplifies installation by removing external amplifier and cabling variables. | A passive design requires sizing and wiring an external amplifier and rack space. |
| Monitoring | An optional RMS remote monitoring system reports operating parameters to a host computer. | The 4642A has no integrated remote monitoring of amplifier parameters. |
| Footprint | Its compact cabinet supports single or multiple-unit installation where space is limited. | The 4642A enclosure is larger, requiring more installation space per cabinet. |
Frequently Asked Questions
Is the X-400C self-powered?
Yes. It includes a single-channel amplifier and an Intelligent AC power supply with onboard processing, so no external amplifier is required.
How does the X-400C compare to the X-800C?
The X-400C uses a single 18-inch driver in a more compact cabinet for smaller installations, while the X-800C uses two 18-inch drivers for higher output in larger rooms; both extend down to 20 Hz.
What is the input pad switch for?
The switchable -7.5 dB input pad reduces upstream noise when the subwoofer is placed in close proximity to listeners.
Is the X-400C covered by a warranty?
Yes, it is covered under Meyer Sound's standard product warranty. For details, please contact us.
