Meyer Sound ULTRA-X82 2x12" 2-way Active Point-Source Loudspeaker (Milan) - 09.331.001.02
Meyer Sound ULTRA-X82 2x12" 2-way Active Point-Source Loudspeaker (Milan) - 09.331.001.02 is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Meyer Sound ULTRA-X82 2x12" 2-way Active Point-Source Loudspea...
Product Overview
The Meyer Sound ULTRA-X82 (Milan) is a self-powered point source loudspeaker configured for Milan AVB networked audio in longer-throw installed and portable systems. Its narrower 50-degree horizontal by 40-degree vertical pattern concentrates output for deep audience areas in auditoriums, houses of worship, and multi-purpose performance spaces. Dual 12-inch long-excursion drivers and a 4-inch diaphragm compression driver deliver high SPL with the tonal accuracy of the Meyer Sound point source line. Onboard amplification, processing, and a Milan-certified digital input make it a complete networked loudspeaker in a single enclosure.
Product Description
This Milan configuration of the ULTRA-X82 provides a tighter 50-degree horizontal by 40-degree vertical pattern from its rotatable horn, suiting longer throws and rooms where pattern control limits reflections. It pairs two 12-inch long-excursion cone drivers with a single 4-inch diaphragm compression driver in a premium multi-ply birch enclosure with a textured black finish and powder-coated steel grille. Both standard analog and AVB/Milan-certified digital audio inputs are provided, supporting deterministic networked audio distribution. For wider coverage in shorter rooms, the Meyer Sound ULTRA-X80 offers a 95-degree horizontal pattern, and the broader range is available through the Meyer Sound collection. Low-frequency extension can be added with a companion subwoofer such as the Meyer Sound 750-LFC. Integrated amplification and telemetry make it a self-contained networked loudspeaker for demanding applications.
Key Features
- Milan AVB Networking — Milan-certified digital input supports deterministic, low-latency networked audio distribution.
- 50-degree Horizontal Coverage — The narrower 50-degree by 40-degree pattern concentrates output for longer throws and deep audience areas.
- Point Source Design — A unified two-way point source format delivers consistent coverage and predictable pattern control.
- Dual 12-inch Low Frequency — Two 12-inch long-excursion cone drivers provide substantial low-frequency output and headroom.

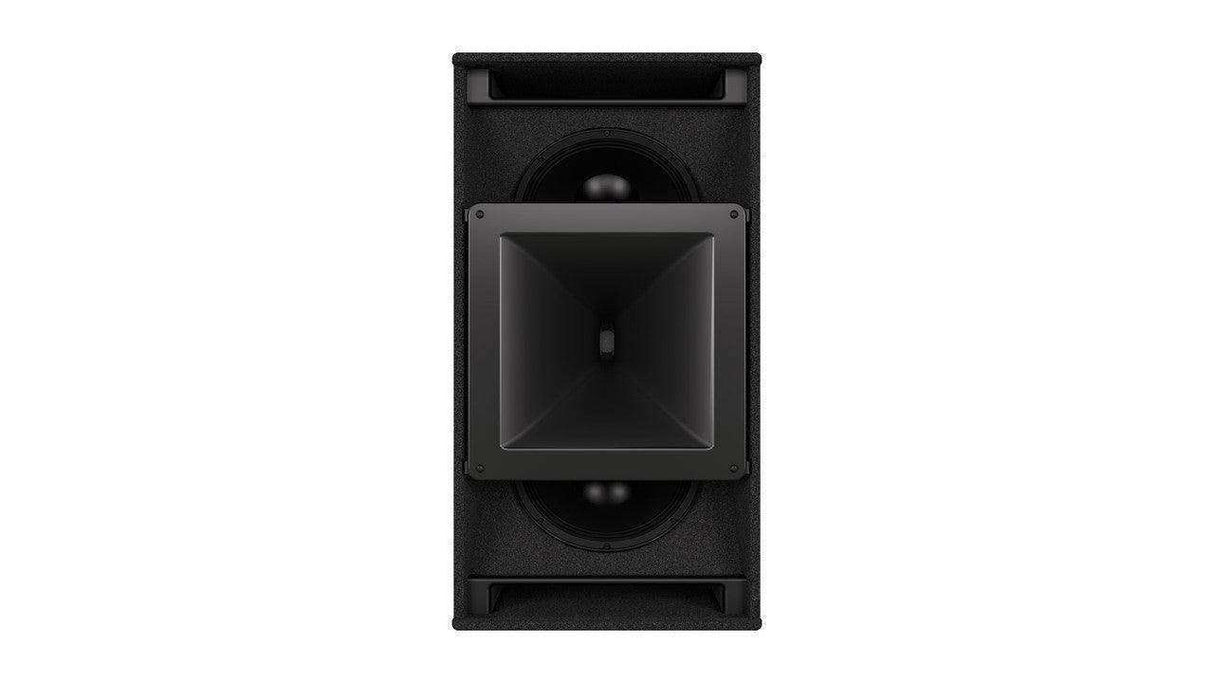

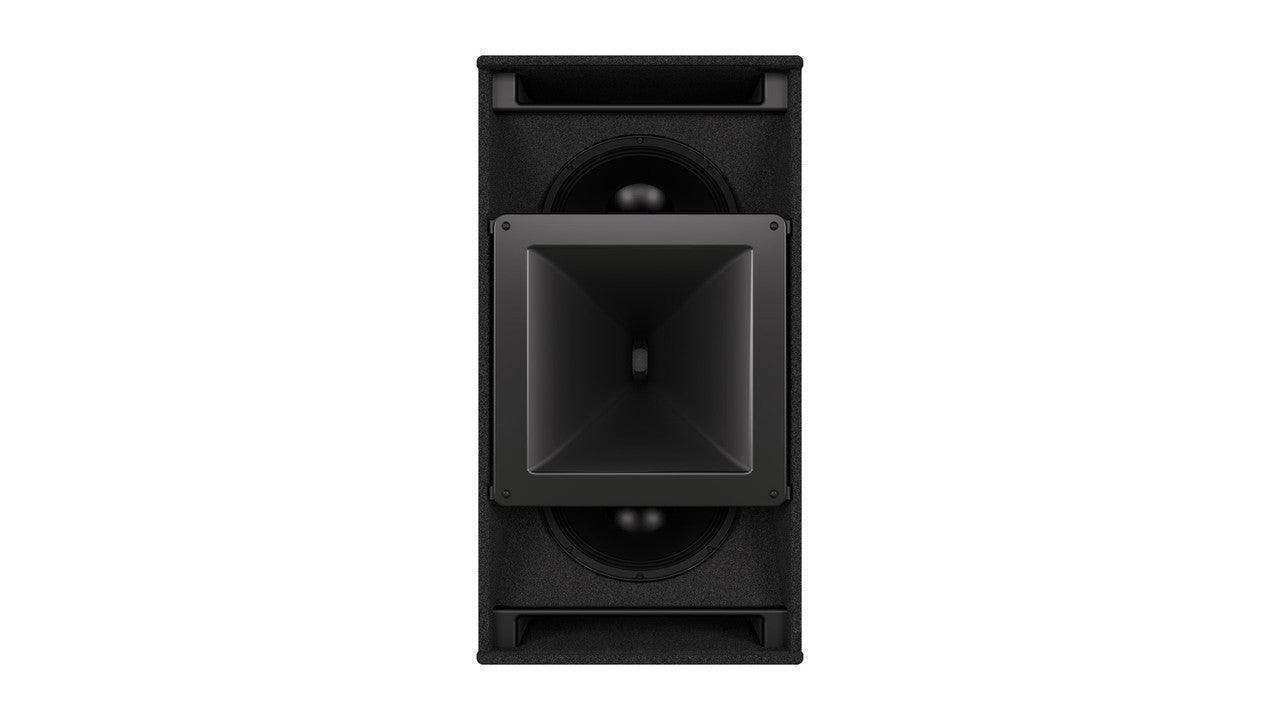

- Rotatable Horn — The 4-inch diaphragm compression driver mounts to a rotatable horn for horizontal or vertical orientation.
- Self-Powered — Onboard amplification and signal processing make the loudspeaker a complete system in a single enclosure.
- Loudspeaker Telemetry — Telemetry transmitted over the Ethernet port allows remote monitoring in Meyer Sound software.
Typical Applications
- Auditorium and performing arts reinforcement
- House of worship main and longer-throw systems
- Multi-purpose performance rooms
- Government and civic assembly spaces
- All-hands and large meeting venues
Technical Specifications
| Operating Frequency Range | 55 Hz - 18 kHz, ±6 dB |
| AES75 Maximum Linear SPL | 123 dBZ, 141 dBZpk, 121 dBA (RMS input +3.0 dBV, 50°C) |
| Horizontal Coverage | 50° |
| Vertical Coverage | 40° |
| Low Frequency | Two 12-inch long-excursion cone drivers |
| High Frequency | One 4-inch diaphragm compression driver on a rotatable horn |
| Weight | 62.6 kg (138 lb) |
| Enclosure | Premium multi-ply birch, textured black finish |
| Rigging | M8 x 1.25 mm attachment points, six on bottom, six on top |
| AC Connector | Neutrik powerCON TRUE1 TOP |
| Operating Voltage | 200 - 240 V AC, 50 or 60 Hz |
| Max Long-Term Continuous Power | 900 W (>10 sec) |
| Burst Power | 2400 W (<1 sec) |
| Idle Power | 55 W |

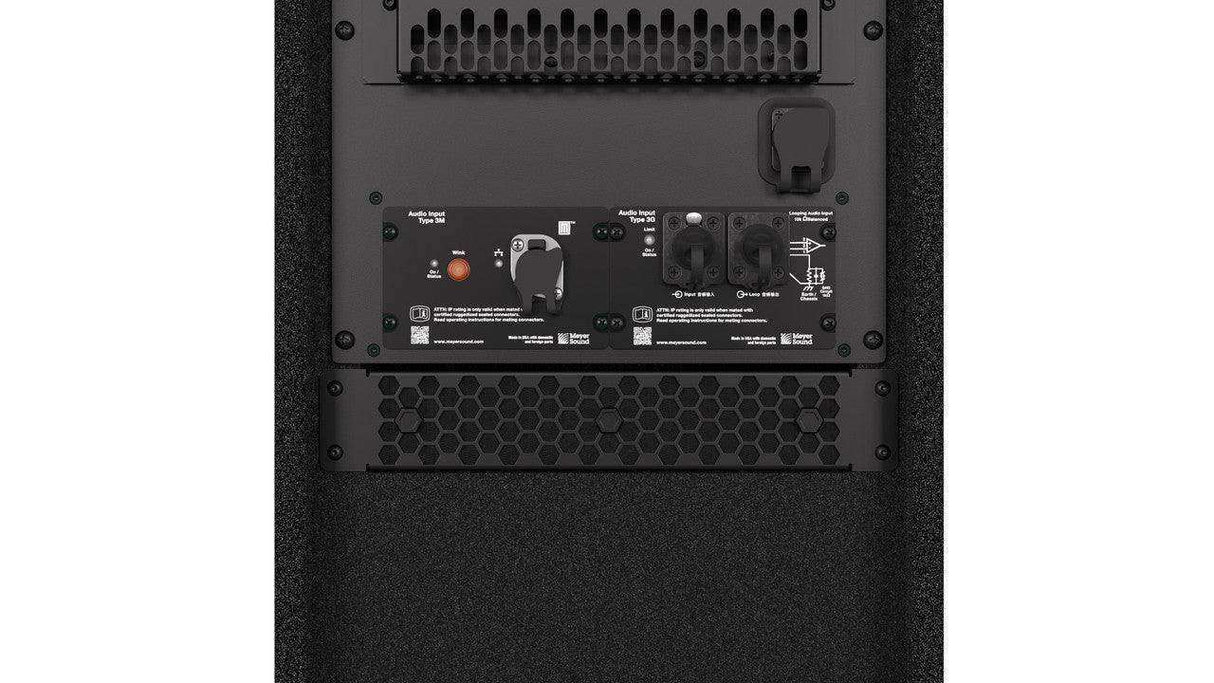

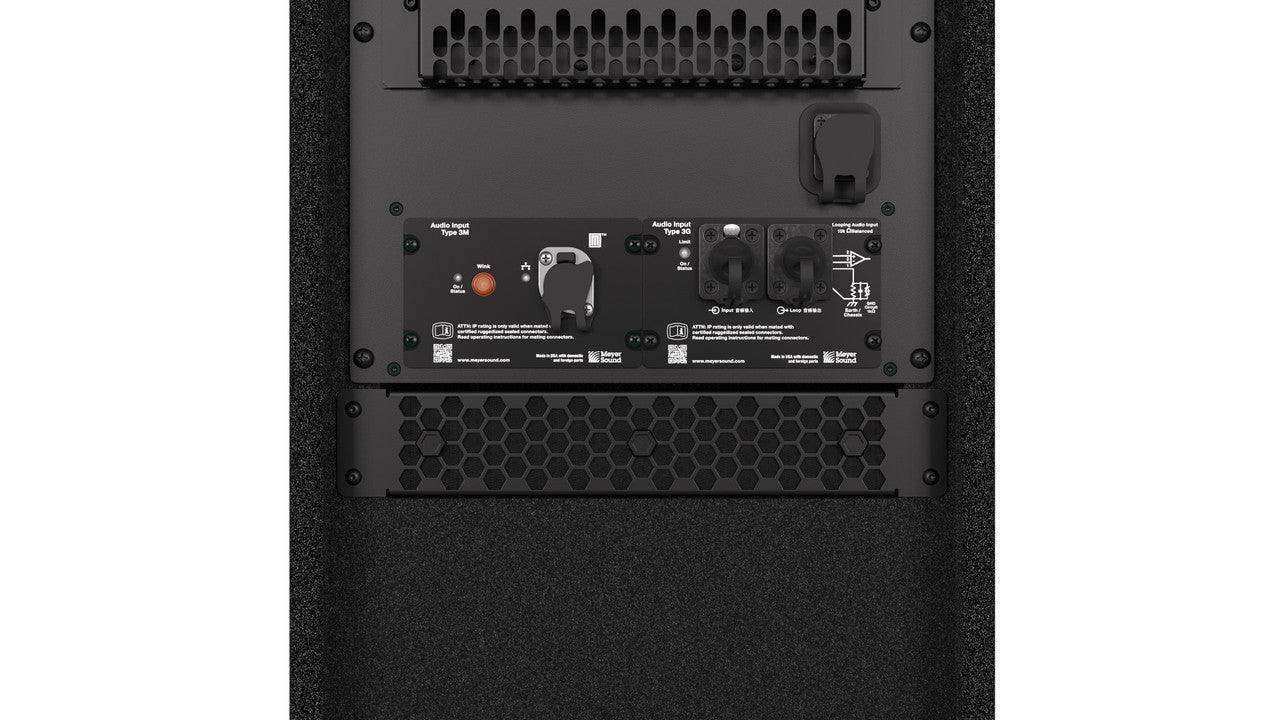

| Analog Input | Neutrik XLR 3-pin TOP female input with male loop output |
| Digital Input | Neutrik etherCON TOP; AVB, Milan Certified |
Specifications sourced from Meyer Sound. Subject to change without notice.
Competitor Comparison
| Criteria | Meyer Sound ULTRA-X82 (Milan) | L-Acoustics X15 HiQ | d&b E12 |
| Format | The ULTRA-X82 is a self-powered two-way point source with dual 12-inch low-frequency drivers and onboard amplification. | The X15 HiQ is a passive coaxial point source requiring external L-Acoustics amplification. | The E12 is a passive two-way point source driven by an external d&b amplifier. |
| Amplification | Amplification and processing are built into the ULTRA-X82 enclosure. | The X15 HiQ relies on external amplifier controllers for power and processing. | The E12 relies on external d&b amplifiers for power and processing. |
| Coverage | The ULTRA-X82 provides a tighter 50-degree horizontal by 40-degree vertical pattern for longer throws. | The X15 HiQ offers a rotatable 40-degree by 60-degree pattern. | The E12 offers a rotatable 75-degree by 40-degree pattern. |
| Networked Audio | This Milan configuration provides a Milan-certified AVB digital input at the loudspeaker. | The X15 HiQ uses analog input at the loudspeaker with networking handled upstream. | The E12 uses analog input at the loudspeaker with networking handled upstream. |
| Monitoring | The ULTRA-X82 transmits loudspeaker telemetry over Ethernet for remote monitoring. | The X15 HiQ provides monitoring through its external amplified controllers. | The E12 provides monitoring through its external d&b amplifiers. |
Frequently Asked Questions
What does the Milan designation mean?
This configuration provides a Milan-certified AVB digital audio input for deterministic, interoperable networked audio.
How does the ULTRA-X82 differ from the ULTRA-X80?
The ULTRA-X82 provides a narrower 50-degree horizontal pattern for longer throws, while the ULTRA-X80 offers a wider 95-degree pattern.
Is the ULTRA-X82 self-powered?
Yes. Amplification and signal processing are built into the enclosure, so no external amplifier is required.
Can I add a subwoofer?
Yes. A companion subwoofer such as the Meyer Sound 750-LFC can extend low-frequency response for full-range systems.
What warranty applies?
This product is covered under Meyer Sound's standard product warranty. For details, please contact us.
