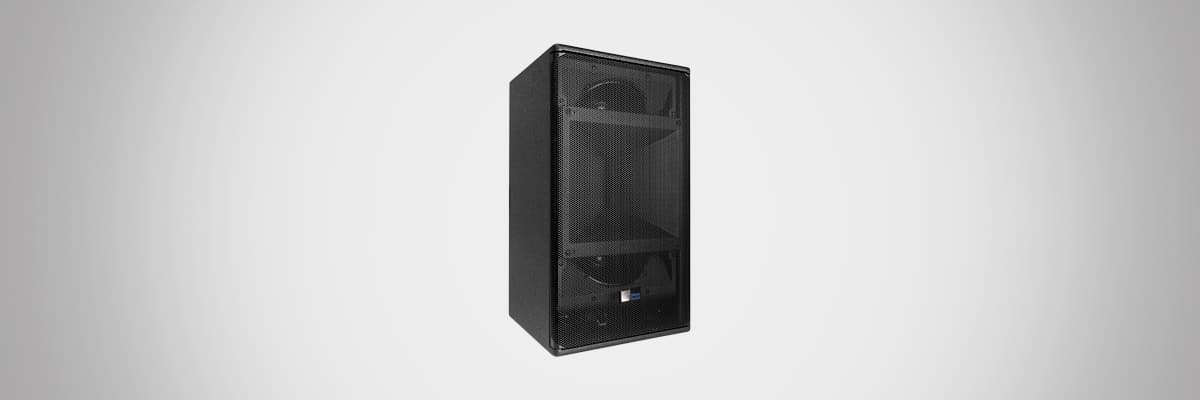

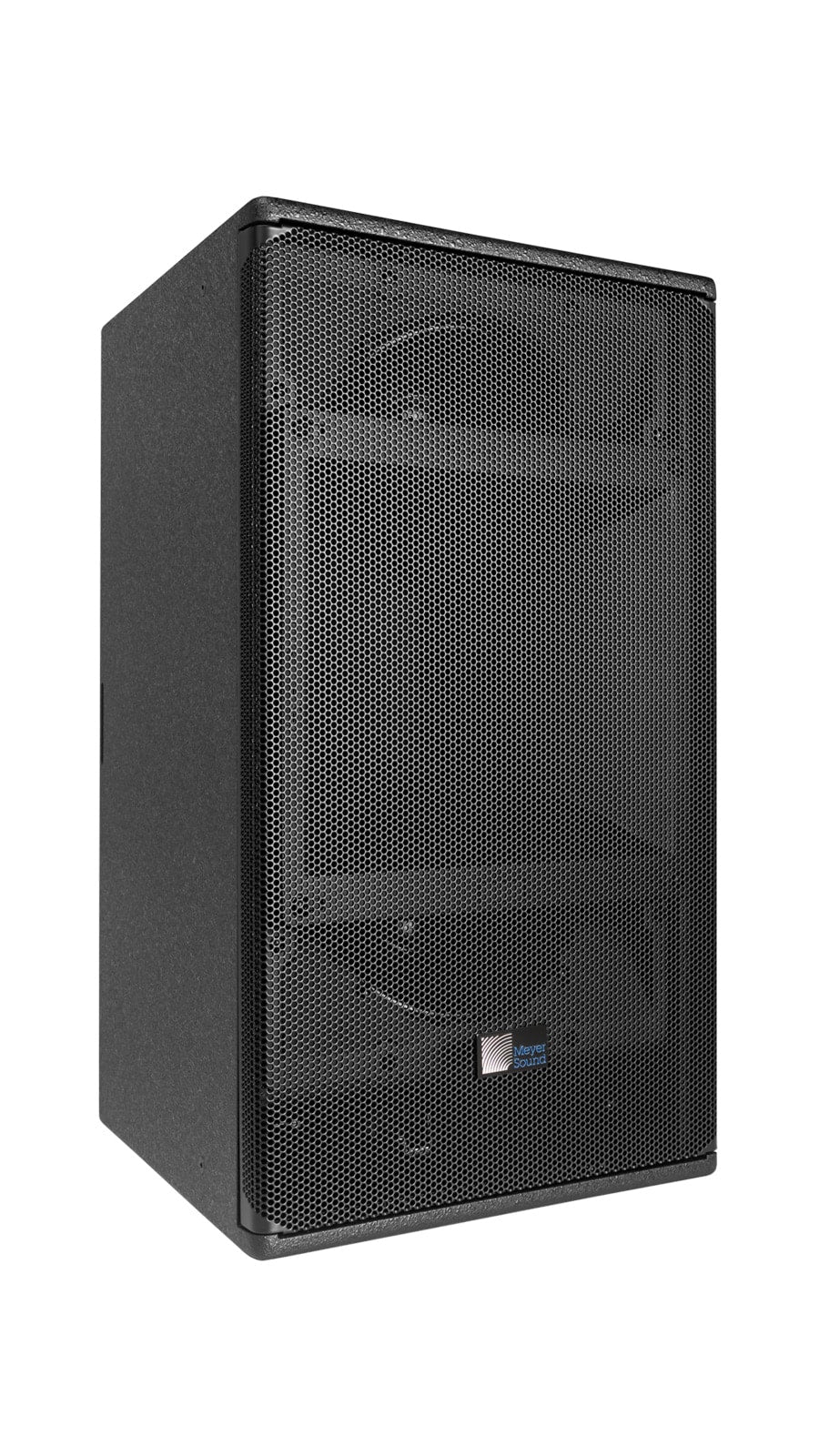

Meyer Sound ULTRA-X42-3 2x8" 2-Way Active Speaker, 3-Pin Input (with Weather Protection) - 09.294.001.05

Product Overview

The Meyer Sound ULTRA-X42-3 with Weather Protection is a compact self-powered point-source loudspeaker engineered for controlled coverage in outdoor and exposed sound reinforcement. Its rotatable 70° x 50° Constant-Q horn delivers a focused pattern, making it well suited to auditoriums, houses of worship, multi-purpose rooms, and outdoor venues. Two 8-inch low-frequency cone drivers and a 3-inch compression driver produce high SPL with low distortion in a single weather-protected enclosure. This 3-pin input model accepts a standard balanced analog signal for integration into permanent AV systems.

Product Description

This Weather Protection variant adds environmental treatment to the controlled-coverage ULTRA-X42-3 for installations exposed to the elements. A proprietary three-channel Class-D amplifier produces 1950 watts peak, and onboard processing handles electronic crossover, phase and frequency correction, and driver protection. The concentric driver configuration provides coaxial behavior with directional control extending down to 400 Hz, and the rotatable horn allows the cabinet to be deployed in horizontal or vertical orientation without changing the coverage pattern. For broader coverage, the Meyer Sound ULTRA-X40 with Weather Protection offers a 110° x 50° horn. To extend low-frequency output, pair it with the Meyer Sound 750-LFC powered subwoofer. Additional Meyer Sound loudspeakers are available in the Meyer Sound collection. The cabinet integrates 11 M8 rigging points plus a 35 mm pole mount with M20 thread for flexible installation.

Key Features

• Weather Protection — Environmental treatment allows deployment in outdoor and exposed installations.
• Controlled Coverage Pattern — A rotatable 70° x 50° Constant-Q horn delivers focused, even coverage for longer-throw and pattern-critical applications.
• Two-Way Active Design — Two 8-inch cone low-frequency drivers and one 3-inch diaphragm compression driver provide full-range output from a single compact enclosure.
• Self-Powered Amplification — An onboard three-channel Class-D amplifier produces 1950 watts peak with total harmonic distortion below 0.02 percent.
• High Output — Maximum SPL of 140 dB supports demanding speech and music reinforcement.
• Concentric Driver Configuration — The coaxial-style driver arrangement supports directional control of frequencies down to 400 Hz for consistent polar response.
• Intelligent AC Power — Automatic voltage selection across 90 to 265 V AC with EMI filtering, transient suppression, and soft-start power-up.

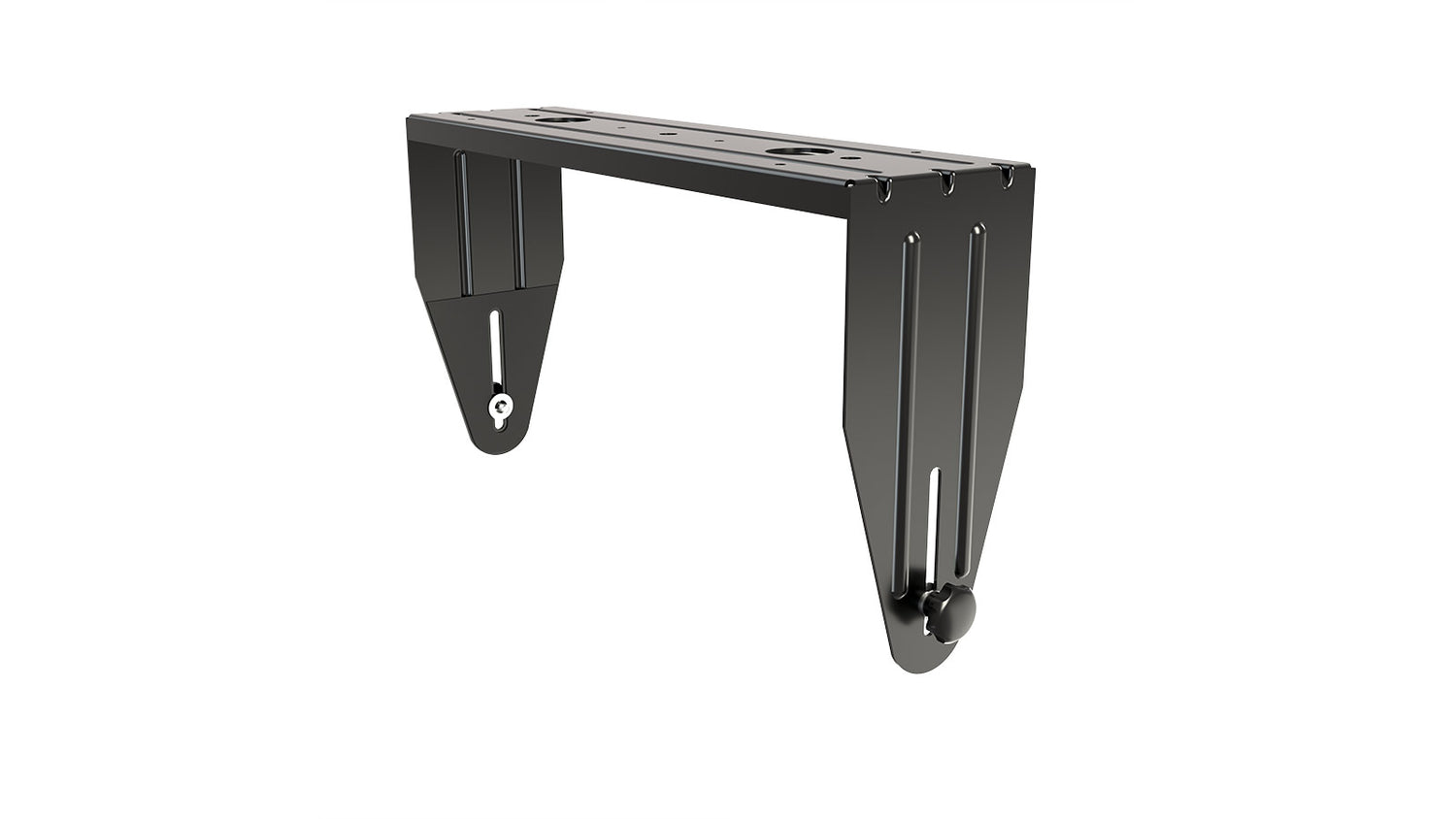

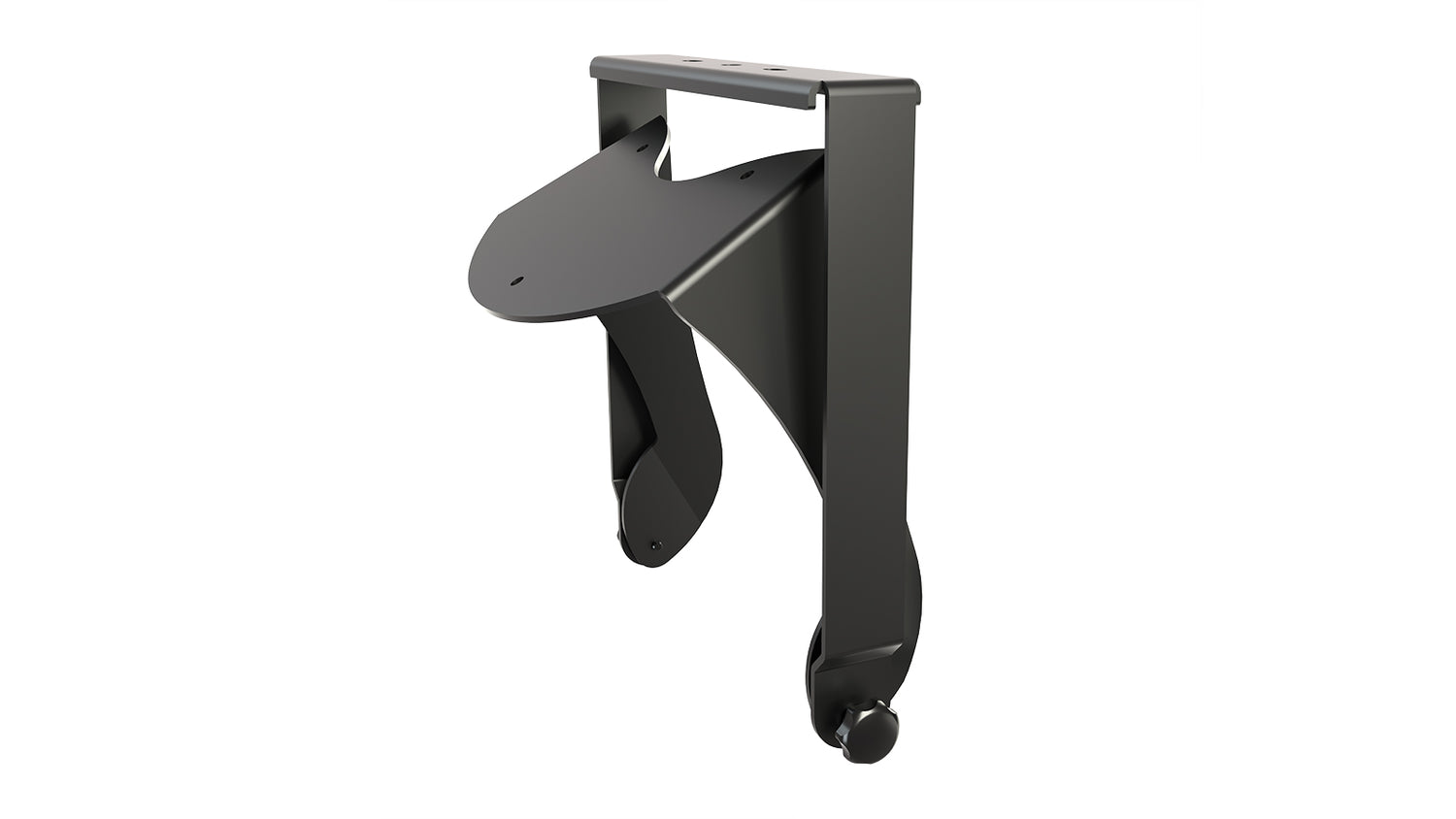

• Integrated Rigging — Eleven M8 threaded points and a 35 mm pole mount with M20 thread accommodate pole, yoke, U-bracket, and cluster mounting.

Typical Applications

• Auditorium — The controlled pattern places energy on the audience while limiting reflections off side walls.
• House of Worship — Delivers focused reinforcement for deeper rooms, balconies, and outdoor gathering areas.
• Multi-Purpose Room — The compact enclosure and rotatable horn adapt to changing event configurations.
• All-Hands Room — Reinforces presentations and live audio in large corporate gathering spaces.
• Government Space — Suits public meeting facilities and exterior plazas requiring controlled speech intelligibility.
• Training Room — Supports clear program audio for instructional and learning environments.

Technical Specifications

Specifications sourced from Meyer Sound. Subject to change without notice.

Competitor Comparison

Frequently Asked Questions

What does the Weather Protection option add?
It applies Meyer Sound's environmental treatment to the loudspeaker so it can be deployed in outdoor and exposed installations.

What is the difference between the ULTRA-X42 and the ULTRA-X40?
The ULTRA-X42 uses a more controlled 70° x 50° horn for focused coverage, while the ULTRA-X40 uses a wider 110° x 50° horn. Both share the same amplifier, transducers, and enclosure.

Does this model require an external amplifier?
No. The ULTRA-X42-3 is self-powered with an onboard three-channel Class-D amplifier rated at 1950 watts peak.

Can the horn orientation be changed?
Yes. The horn is rotatable, allowing the cabinet to be deployed horizontally or vertically while maintaining its coverage pattern.

Is this loudspeaker covered by a warranty?
Yes. This product is covered under Meyer Sound's standard product warranty. For details, please contact us.
