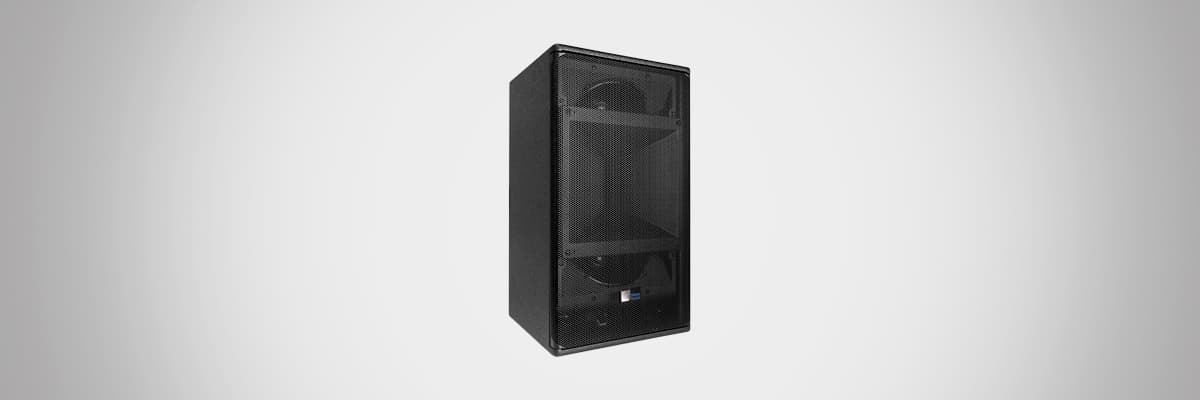

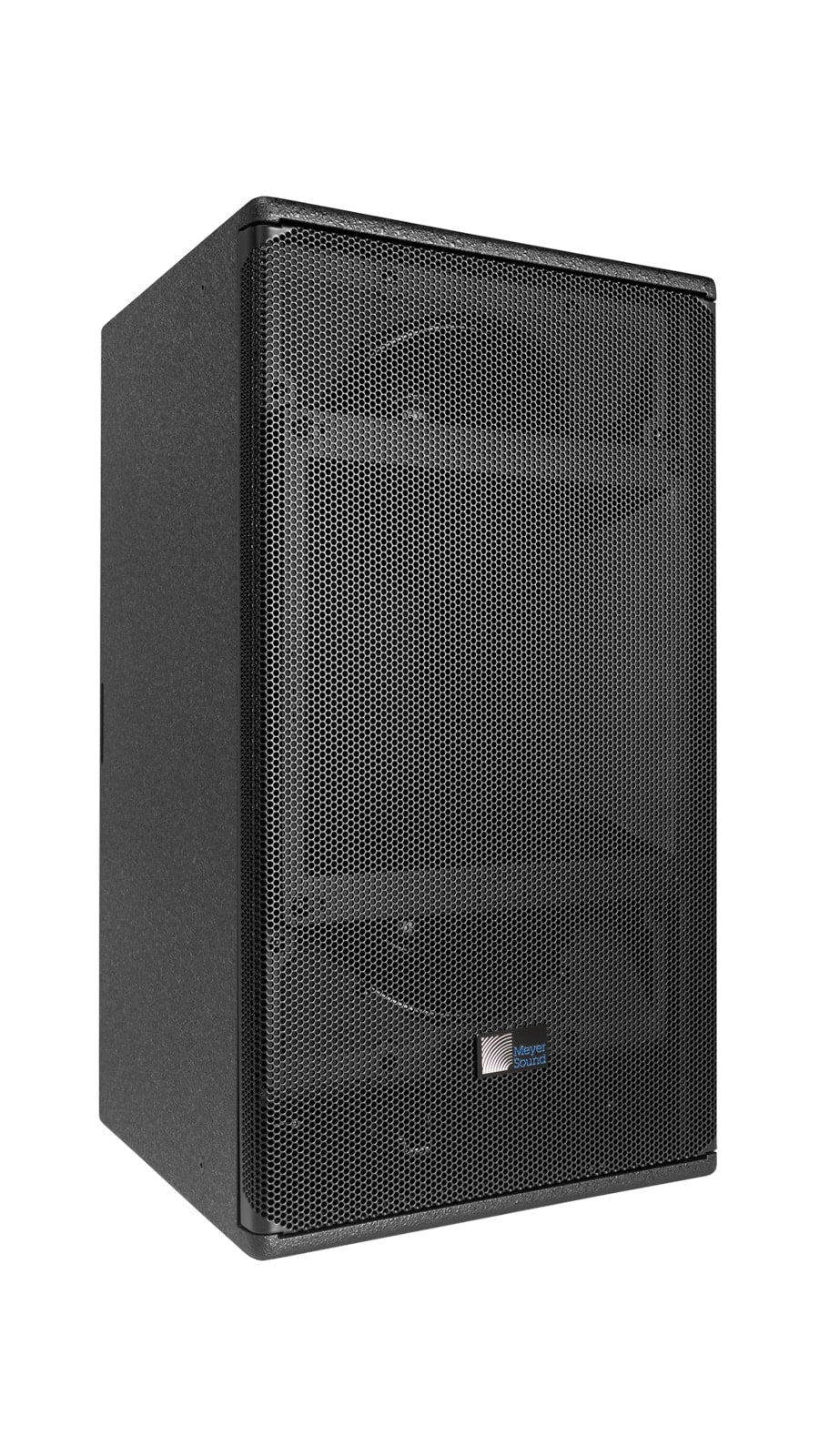

Meyer Sound ULTRA-X40 2x8" 2-Way Active Speaker, 3-Pin Input (with Weather Protection) - 09.287.001.05

Product Overview

The Meyer Sound ULTRA-X40 with Weather Protection is a compact self-powered point-source loudspeaker built for high-output sound reinforcement in outdoor and exposed installations. Its rotatable 110° x 50° Constant-Q horn makes it well suited to houses of worship, auditoriums, multi-purpose rooms, and outdoor venues. Two 8-inch low-frequency cone drivers and a 3-inch compression driver deliver high SPL with low distortion in a single weather-protected enclosure. This 3-pin input model accepts a standard balanced analog signal for straightforward integration into permanent AV systems.

Product Description

This Weather Protection variant adds environmental treatment to the standard ULTRA-X40 for use in installations exposed to the elements. A proprietary three-channel Class-D amplifier produces 1950 watts peak, and onboard processing handles electronic crossover, phase and frequency correction, and driver protection. The concentric driver configuration provides coaxial behavior with directional control extending down to 400 Hz, and the rotatable horn allows the cabinet to be deployed in horizontal or vertical orientation without changing the coverage pattern. For a tighter pattern, the closely related Meyer Sound ULTRA-X42-3 with Weather Protection offers a 70° x 50° horn. To extend low-frequency output, pair it with the Meyer Sound 750-LFC powered subwoofer. Additional Meyer Sound loudspeakers are available in the Meyer Sound collection. The cabinet integrates 11 M8 rigging points plus a 35 mm pole mount with M20 thread for flexible installation.

Key Features

• Weather Protection — Environmental treatment allows deployment in outdoor and exposed installations.
• Wide Coverage Pattern — A rotatable 110° x 50° Constant-Q horn delivers broad, even coverage that can be oriented horizontally or vertically.
• Two-Way Active Design — Two 8-inch cone low-frequency drivers and one 3-inch diaphragm compression driver provide full-range output from a single compact enclosure.
• Self-Powered Amplification — An onboard three-channel Class-D amplifier produces 1950 watts peak with total harmonic distortion below 0.02 percent.
• Concentric Driver Configuration — The coaxial-style driver arrangement supports directional control of frequencies down to 400 Hz for consistent polar response.
• Intelligent AC Power — Automatic voltage selection across 90 to 265 V AC with EMI filtering, transient suppression, and soft-start power-up.
• 3-Pin Analog Input — XLR 3-pin female input with male loop output for straightforward signal distribution across multiple cabinets.

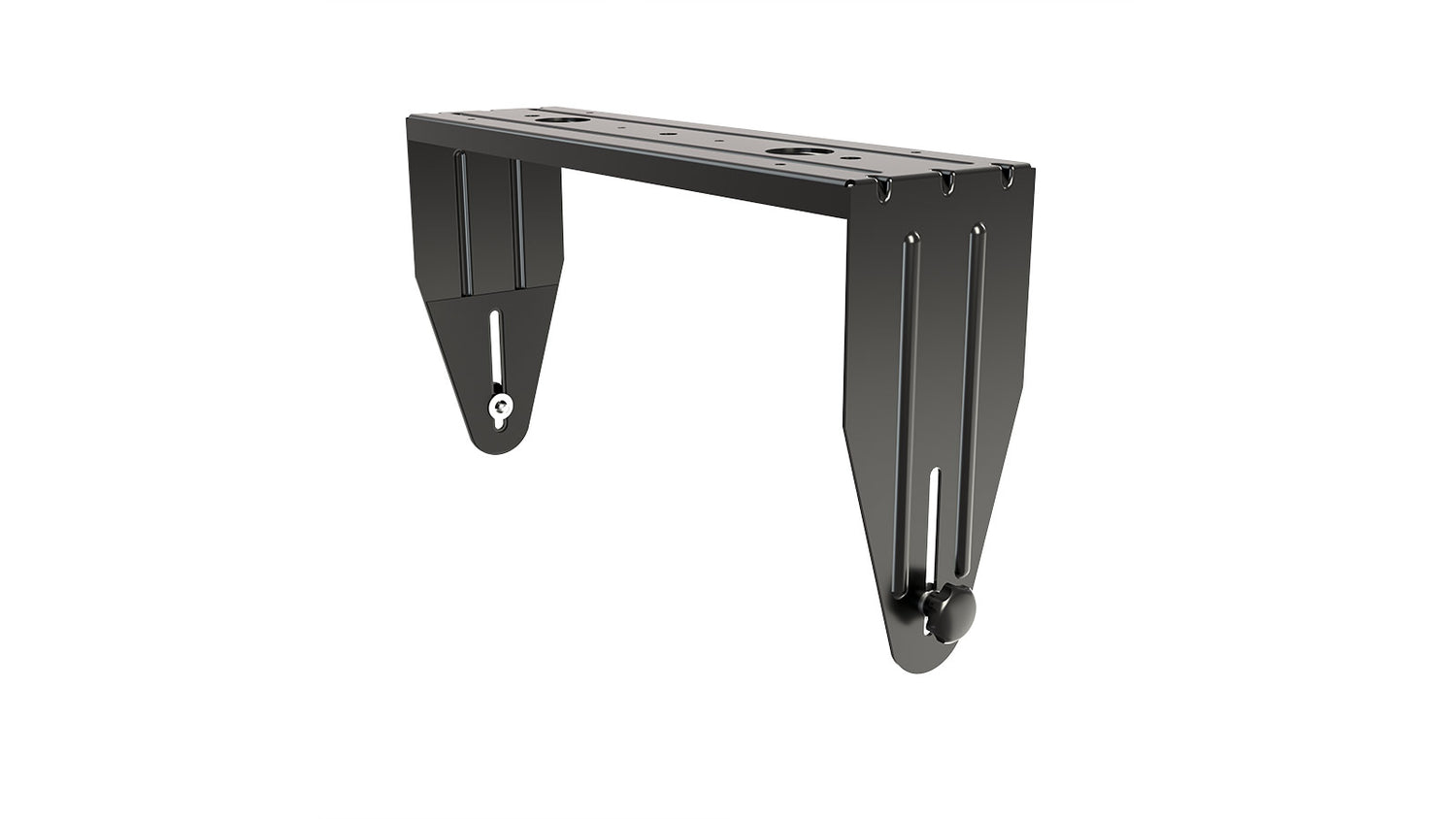

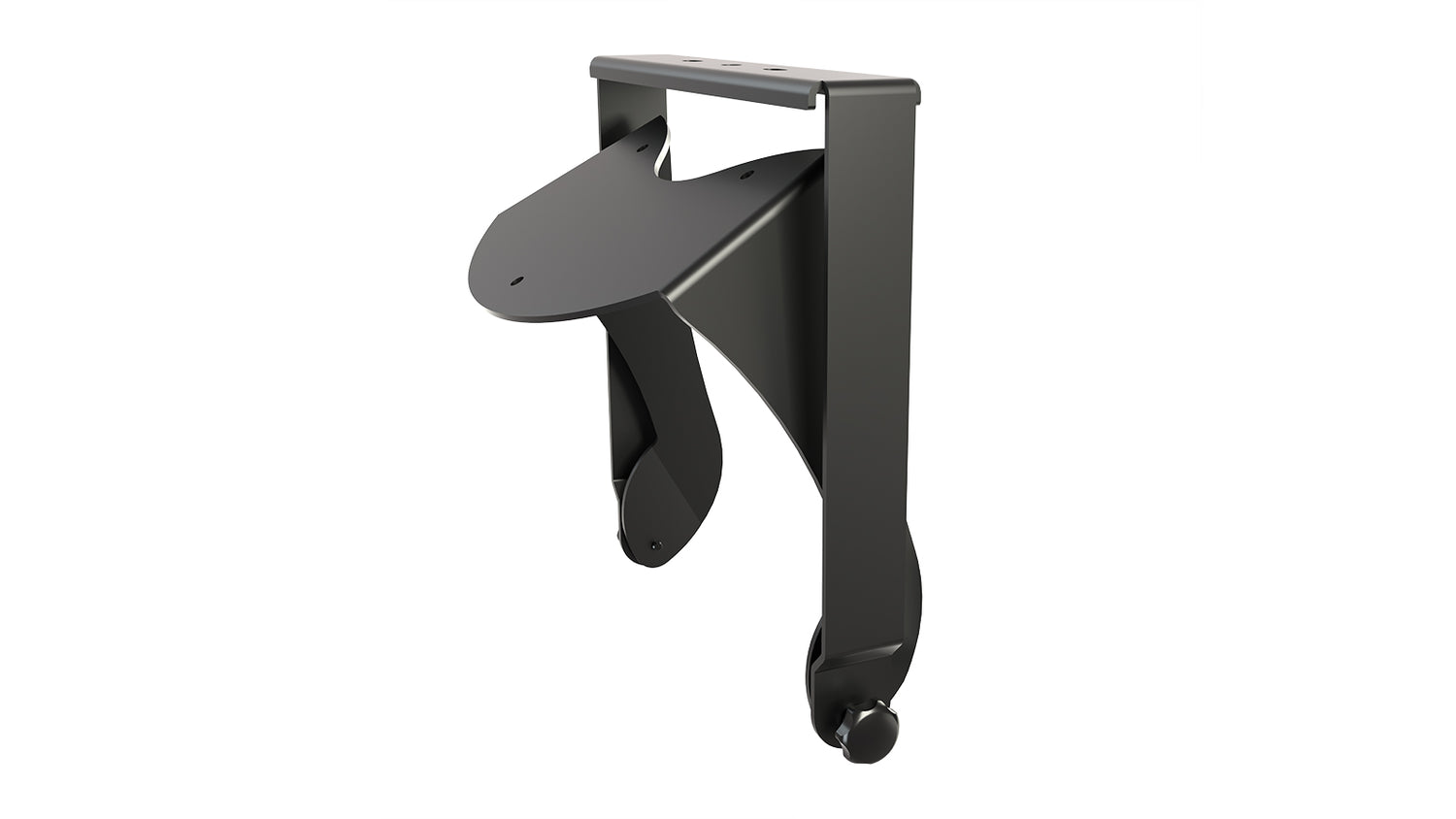

• Integrated Rigging — Eleven M8 threaded points and a 35 mm pole mount with M20 thread accommodate pole, yoke, U-bracket, and cluster mounting.

Typical Applications

• House of Worship — Provides clear vocal and music reinforcement across the congregation, including outdoor courtyards and entrances.
• Auditorium — Delivers high SPL with predictable polar behavior for speech and performance audio.
• Multi-Purpose Room — The compact enclosure and rotatable horn adapt to changing event configurations.
• All-Hands Room — Reinforces presentations and live audio in large corporate gathering spaces.
• Government Space — Suits public meeting facilities and exterior plazas requiring reliable speech intelligibility.
• Training Room — Supports clear program audio for instructional and learning environments.

Technical Specifications

Specifications sourced from Meyer Sound. Subject to change without notice.

Competitor Comparison

Frequently Asked Questions

What does the Weather Protection option add?
It applies Meyer Sound's environmental treatment to the loudspeaker so it can be deployed in outdoor and exposed installations.

What is the difference between the ULTRA-X40 and the ULTRA-X42?
The ULTRA-X40 uses a wide 110° x 50° horn, while the ULTRA-X42 uses a more controlled 70° x 50° horn. Both share the same amplifier, transducers, and enclosure.

Does this model require an external amplifier?
No. The ULTRA-X40 is self-powered with an onboard three-channel Class-D amplifier rated at 1950 watts peak.

Can the horn orientation be changed?
Yes. The horn is rotatable, allowing the cabinet to be deployed horizontally or vertically while maintaining its coverage pattern.

Is this loudspeaker covered by a warranty?
Yes. This product is covered under Meyer Sound's standard product warranty. For details, please contact us.
