Meyer Sound ULTRA-X20XP Compact Wide Coverage Loudspeaker - 09.297....
Product Overview

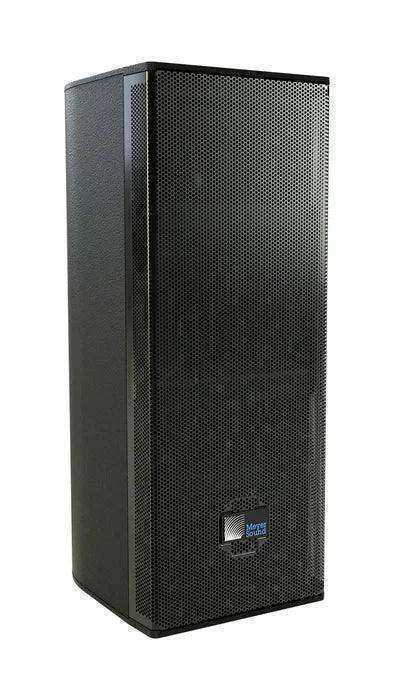

The Meyer Sound ULTRA-X20XP is the externally powered, IntelligentDC version of the compact wide-coverage point-source loudspeaker, designed for installed AV systems that benefit from remote powering. Its rotatable 110° x 50° constant-Q horn delivers even, predictable coverage for conference rooms, houses of worship, auditoriums, and multi-purpose spaces. Two 5-inch low-frequency drivers and a 2-inch compression driver are driven by an internal three-channel Class-D amplifier that receives DC power and balanced audio over a single cable. A Phoenix 5-pin connection carries both power and audio from a Meyer Sound MPS IntelligentDC power supply.
Product Description
The ULTRA-X20XP uses Meyer Sound's IntelligentDC technology to receive 48 V DC power and balanced audio through a single Phoenix 5-pin connector, eliminating the need for AC wiring conduits at each loudspeaker while preserving self-powered performance. The amplifier and processing circuits store DC power and tolerate voltage drops, accommodating light-gauge cables and runs up to 150 feet with about 1 dB of loss using 18 AWG power conductors. A concentric driver configuration provides coaxial-style point-source behavior with directional control of frequencies down to 600 Hz, and phase-corrected electronics maintain flat amplitude and phase response. Power is supplied by the two-channel MPS-482HP or the eight-channel MPS-488HP. For the self-powered AC version, see the standard ULTRA-X20; for the broad-coverage IntelligentDC model, see the ULTRA-X23XP, or browse the full Meyer Sound range. Pair with a 750-LFC to extend low-frequency output.
Key Features
- IntelligentDC Powering — Receives 48 V DC power and balanced audio over a single Phoenix 5-pin connector from a Meyer Sound MPS power supply.
- Long Cable Runs — Tolerates voltage drops up to 30% and supports composite cable runs up to 150 feet with about 1 dB of loss using 18 AWG power conductors.
- Wide 110° x 50° Coverage — A rotatable constant-Q horn projects an even, wide pattern across broad audience areas.
- Concentric Driver Configuration — Two 5-inch cone drivers and a 2-inch compression driver provide point-source performance with directional control down to 600 Hz.
- Onboard Three-Channel Amplifier — A Class-D amplifier delivers 860 W peak with integrated crossover, correction filters, and driver protection.
- Compact Aluminum Enclosure — A 27 lb (12.3 kg) vented aluminum cabinet with textured black finish suits size- and weight-critical installations.

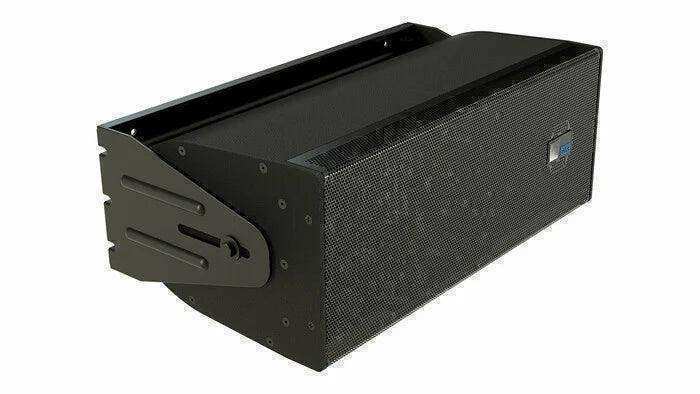

- Flexible Rigging — Integral M8 points on each end plus rear M6 threaded holes support pole, yoke, U-bracket, wall, and ceiling mounting.
Typical Applications
- House of Worship — Remote DC powering and wide coverage simplify distributed loudspeaker layouts across sanctuary seating.
- Conference Room — Single-cable power and audio streamline installation in networked AV and conferencing rooms.
- Multi-Purpose Room — IntelligentDC distribution adapts to reconfigurable event and assembly spaces.
- Auditorium — Centralized powering and point-source predictability simplify larger system designs.
- Government Space — Conduit-free DC distribution suits managed institutional AV installations.
Technical Specifications
| Operating Frequency Range | 60 Hz – 18 kHz |
| Frequency Response | 65 Hz – 17.5 kHz ±4 dB |
| Phase Response | 95 Hz – 18 kHz ±45° |
| Linear Peak SPL | 127 dB with 20 dB crest factor (M-noise); 123.5 dB (Pink Noise); 125.5 dB (B-noise) |
| Coverage | Rotatable horn: 110° x 50° |
| Low Frequency | Two 5-inch cone drivers; 6 Ω nominal impedance |
| High Frequency | One 2-inch diaphragm compression driver on a rotatable horn; 8 Ω nominal impedance |
| Audio Input | Differential, electronically balanced; Phoenix 5-pin male connector (power and audio) |
| Input Impedance | 10 kΩ differential |
| Amplifier | Three-channel, Class-D; 860 W peak total output |
| THD, IM, TIM | <0.02% |
| DC Power | 48 V DC via Phoenix 5-pin; Meyer Sound MPS-482HP or MPS-488HP required (NEC Class 2 wiring approved) |
| Dimensions | W: 7.44 in (189 mm) x H: 19.04 in (484 mm) x D: 8.66 in (220 mm) |
| Weight | 27 lb (12.3 kg) |
| Enclosure | Aluminum with slightly textured black finish; powder-coated, round-perforated steel grille |
| Rigging | Two integrated M8 points on each end; four rear M6 threaded holes (127 mm x 70 mm pattern) |
Specifications sourced from Meyer Sound. Subject to change without notice.
Frequently Asked Questions
How is the ULTRA-X20XP powered?
It uses Meyer Sound's IntelligentDC technology, receiving 48 V DC power and balanced audio through a single Phoenix 5-pin connector from an MPS-482HP or MPS-488HP power supply.
How does it differ from the standard ULTRA-X20?
The XP version is externally powered over a single composite cable rather than using a local AC connection, while retaining the same 110° x 50° coverage and acoustic performance.
How long can the cable runs be?
Composite cables such as Belden 1502 or equivalent can deliver power and audio up to 150 feet with about 1 dB of peak SPL loss using 18 AWG power conductors; longer runs are possible with heavier-gauge wire.
Does the ULTRA-X20XP require an external power supply?
Yes. A Meyer Sound MPS IntelligentDC power supply (MPS-482HP or MPS-488HP) is required and sold separately.
Is the ULTRA-X20XP covered by warranty?
Yes. It is covered under Meyer Sound's standard product warranty. For details, please contact us.
