Meyer Sound AMIE-SUB 7.1 (DB25) Bass MNGMT Input Kit - 40.251.451.01
Product Overview
The Meyer Sound AMIE-SUB 7.1 (DB25) Bass Management Input Kit is the 7.1 integration input module for the Amie-Sub compact subwoofer. It adds bass management and a dedicated LFE input over industry-standard multi-pin DB-25 connectors, enabling the Amie-Sub to anchor bass-managed systems up to 7.1 channels with AMIE precision monitors. This is a field-installable input module accessory for the Amie-Sub.
Product Description

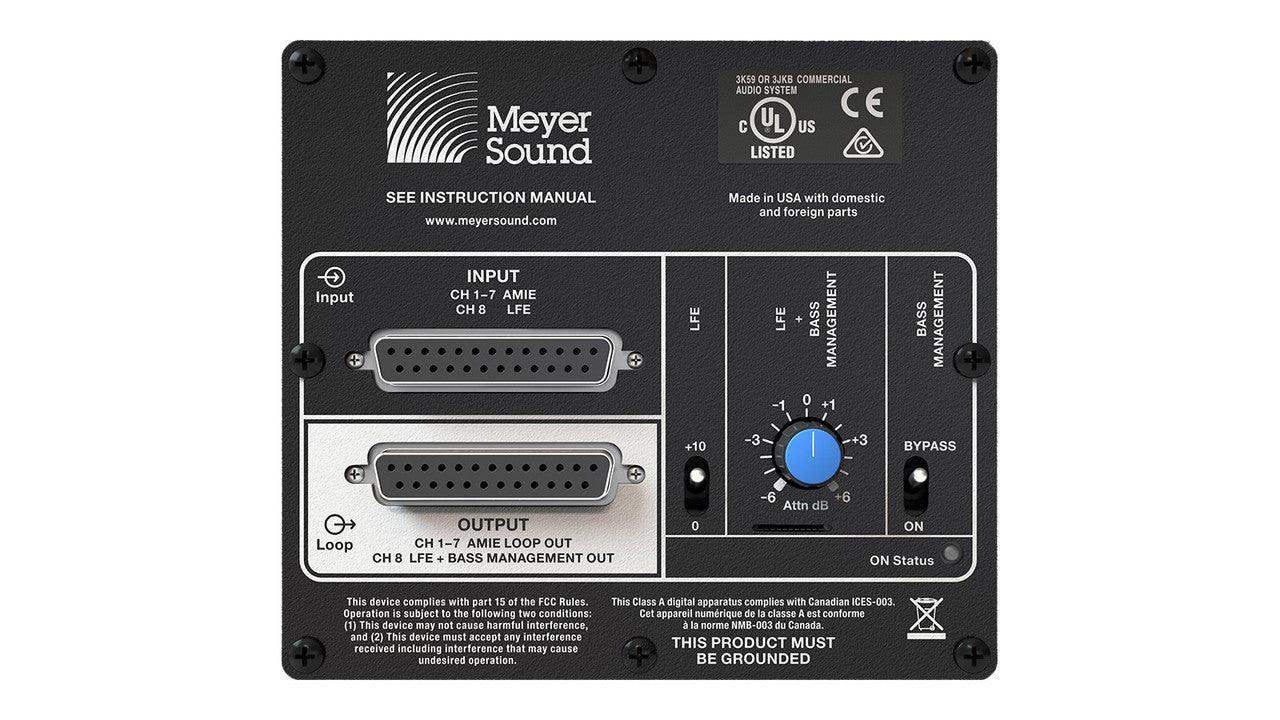

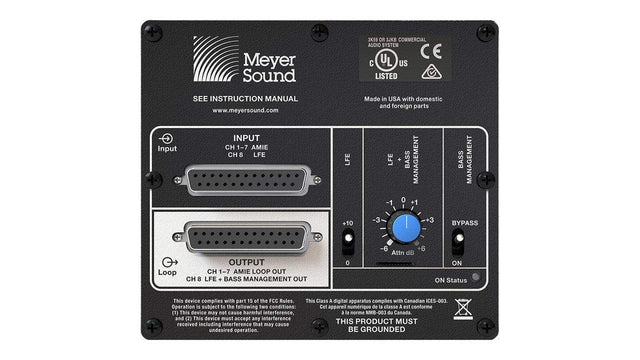

The 7.1 integration module provides DB-25 female input and output connectors for channels 1 through 7 plus LFE, wired to the industry-standard analog pinout. It enables the Amie-Sub to create a bass-managed system up to 7.1 channels using third-party high-quality 8-channel DB-25-to-XLR cables, which are required and not included. The module includes bass management processing and a dedicated phase-matched LFE input with selectable +10 dB boost to meet a variety of standards. It is intended for installation in the Amie-Sub compact subwoofer and used with AMIE precision studio monitors. Additional Meyer Sound products are available in the Meyer Sound collection.
Key Features
- 7.1 Bass Management — Enables the Amie-Sub to create bass-managed systems up to 7.1 channels.
- DB-25 Connectivity — Provides DB-25 female inputs and outputs for channels 1 to 7 plus LFE on the standard analog pinout.
- Dedicated LFE Input — Includes a phase-matched LFE input with selectable +10 dB boost to meet a variety of standards.
- Amie-Sub Module — Designed as the field-installable 7.1 integration module for the Amie-Sub.
Technical Specifications
| Model | AMIE-SUB 7.1 (DB25) Bass Management Input Kit |
| SKU | 40.251.451.01 |
| Compatibility | Amie-Sub compact subwoofer |
| Connectors | DB-25 female inputs (channels 1–7 and LFE); DB-25 female outputs (channels 1–7 and LFE + bass management) |
| LFE Boost | Selectable +10 dB |
| Cables | Third-party 8-channel DB-25-to-XLR cables required (not included) |
Specifications sourced from Meyer Sound. Subject to change without notice.
