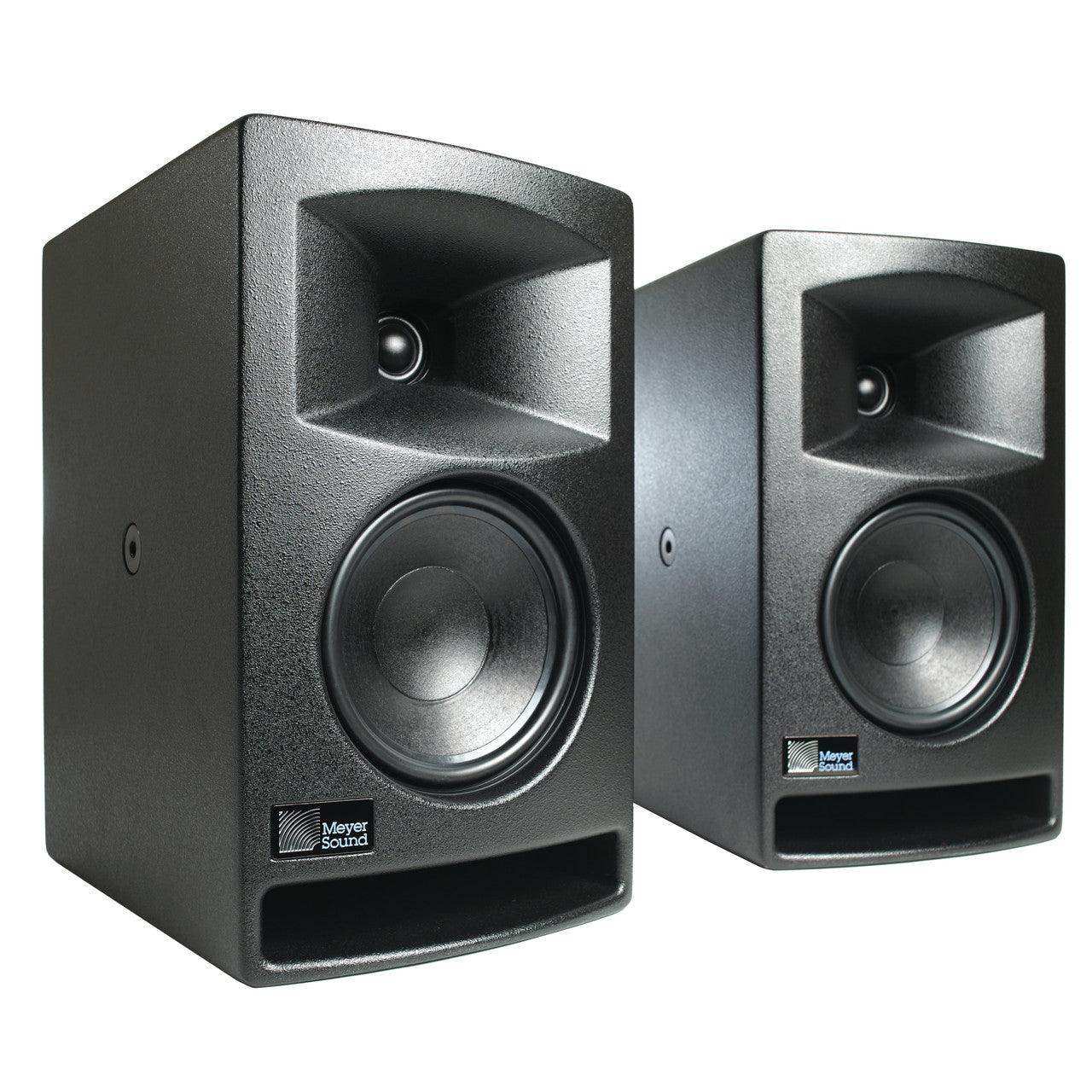

Meyer Sound AMIE-3 6.5" 2-Way Active Speaker, 3-Pin Input - 09.249.001.01

Product Overview

The Meyer Sound AMIE is a compact, self-powered precision studio monitor for critical audio work in music, film, broadcast, and game post-production where accurate translation to larger systems matters. The 3-Pin input version accepts balanced analog audio on a looping XLR connector for straightforward integration into stereo and multichannel monitoring setups. Drawing on technology from Meyer Sound's ACHERON screen channel loudspeakers, AMIE delivers a flat frequency response and phase-linear behavior for precise imaging. It is well suited to small- to medium-sized mixing and editing rooms.

Product Description

AMIE pairs a 6.5-inch long-excursion cone driver with a 1-inch dome tweeter on a constant-directivity waveguide, yielding uniform 80° horizontal by 50° vertical coverage with a smooth roll-off outside the pattern. A two-channel Class-D amplifier produces 900 W peak with onboard DSP and crossover circuitry that optimize phase response for transparency and spatial imaging. The phase-linear design produces a well-behaved impulse response and reduces listener fatigue during extended sessions. For full-range monitoring, the system extends down to 22 Hz when paired with the Amie-Sub compact subwoofer, which offers 2.1 and 7.1 integration modules for bass-managed stereo and immersive systems. Additional Meyer Sound studio and cinema products are available in the Meyer Sound collection. powerCON 20 loop-through connectors simplify multichannel installation, with up to seven AMIE loudspeakers safely looped.

Key Features

• Phase-Linear Imaging — Phase linearity and low distortion produce accurate imaging and reduce listener fatigue from time smearing.
• Constant-Directivity Waveguide — A 1-inch dome tweeter on a constant-directivity waveguide delivers precise 80° x 50° coverage and reduces room interaction.
• Accurate Translation — Linear frequency and amplitude response with sonic accuracy at any level helps mixes translate consistently to larger systems.
• High Peak Power — A two-channel Class-D amplifier producing 900 W peak minimizes distortion and compression with a high crest factor.
• Self-Powered Design — Onboard amplification removes amplifier and cable variables, so results are consistent wherever AMIE is used.
• Loop-Through Power — powerCON 20 loop output allows up to seven AMIE loudspeakers to be safely looped, reducing AC outlet requirements.
• Optional Mounting — 3/8-inch-16 threaded side points accept the optional MUB-Amie U-bracket and desktop stand for wall, ceiling, pole, or desk placement.

Typical Applications

• Broadcast studio
• Multi-purpose room
• Training room

Technical Specifications

Specifications sourced from Meyer Sound. Subject to change without notice.

Frequently Asked Questions

What does the 3-Pin input designation mean?
This AMIE version accepts balanced analog audio on a standard XLR 3-pin female input with a male loop output, allowing the signal to be passed to additional units.

How do I extend the low-frequency response?
Pairing AMIE with the Amie-Sub compact subwoofer extends the system response down to 22 Hz and, with the optional 2.1 or 7.1 integration modules, creates a bass-managed stereo or immersive system.

How many AMIE monitors can share AC power?
Up to seven AMIE loudspeakers may be safely looped from the powerCON 20 loop output, reducing the number of AC outlets required.

Is the AMIE covered by a warranty?
Yes, it is covered under Meyer Sound's standard product warranty. For details, please contact us.
