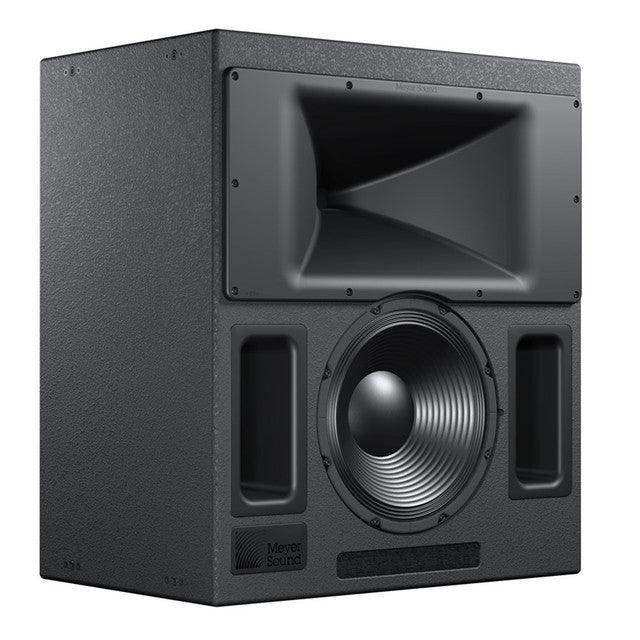

Meyer Sound ACHERON-STUDIO-YM 15" Cinema Screen Loudspeaker with Mounting Yoke - 09.195.001.04

Product Overview

The Meyer Sound ACHERON-STUDIO-YM is a compact, self-powered two-way cinema screen channel loudspeaker supplied with side rigging attachment points and the MYA-AST mounting yoke for suspended installation. A more compact version of the ACHERON 80, it serves the left, center, and right channels behind perforated screens in mid-size theaters, re-recording stages, custom private theaters, and postproduction mix facilities. It offers the same 38 Hz to 17 kHz frequency response as the ACHERON 80 with a 131.5 dB linear peak SPL and very low distortion. Convection cooling allows fanless, quiet operation in critical listening rooms.

Product Description

This yoke-equipped version of the ACHERON Studio uses the same patented horn technology developed for the ACHERON 80, with a soft roll-off outside its 80° horizontal by 50° vertical coverage pattern. The horn is fixed within the enclosure to ensure an accurate acoustic crossover, phase response, and consistent vertical pattern, with a 580 Hz crossover that places most of the dialog in the horn. Transducers include one 15-inch low-frequency cone driver and one 4-inch diaphragm compression driver, driven by a two-channel class AB/bridged amplifier producing 700 W. It integrates with HMS surround loudspeakers and the X-400C and X-800C cinema subwoofers. Additional Meyer Sound cinema products are available in the Meyer Sound collection. The included MYA-AST yoke and side attachment points allow the loudspeaker to be suspended where floor placement is not practical.

Key Features

• Yoke-Mounted Configuration — Supplied with side rigging attachment points and the MYA-AST mounting yoke for suspended installation.
• Compact Screen Channel — A more compact version of the ACHERON 80, sized for mid-size theaters, re-recording stages, and postproduction facilities.
• Consistent ACHERON Fidelity — The shared 38 Hz to 17 kHz response matches the ACHERON 80 for accurate translation across rooms.
• Constant-Q Cinema Horn — The fixed 80° horizontal by 50° vertical horn yields uniform response and a flat amplitude and phase response.
• Convection Cooling — Fanless convection cooling supports quiet operation in critical listening environments.
• Class AB/Bridged Amplification — A two-channel class AB/bridged amplifier produces 700 W with distortion below 0.02 percent.
• Optional RMS Monitoring — The optional RMS remote monitoring system reports operating parameters to a computer running Compass Control Software.

Typical Applications

• Auditorium
• Broadcast studio
• Multi-purpose room

Technical Specifications

Specifications sourced from Meyer Sound. Subject to change without notice.

Frequently Asked Questions

What does the YM designation indicate?
The YM version ships with side rigging attachment points and the MYA-AST mounting yoke, allowing the loudspeaker to be suspended where floor placement is not practical.

How does the ACHERON-STUDIO-YM compare to the ACHERON 80?
It is a more compact version of the ACHERON 80 with the same 80° x 50° horn and 38 Hz to 17 kHz response, intended for mid-size theaters, re-recording stages, and postproduction mix facilities.

Which subwoofers pair with this loudspeaker?
It integrates with the X-400C and X-800C cinema subwoofers, as well as HMS surround loudspeakers, to complete a cinema system.

Is the ACHERON-STUDIO-YM covered by a warranty?
Yes, it is covered under Meyer Sound's standard product warranty. For details, please contact us.
