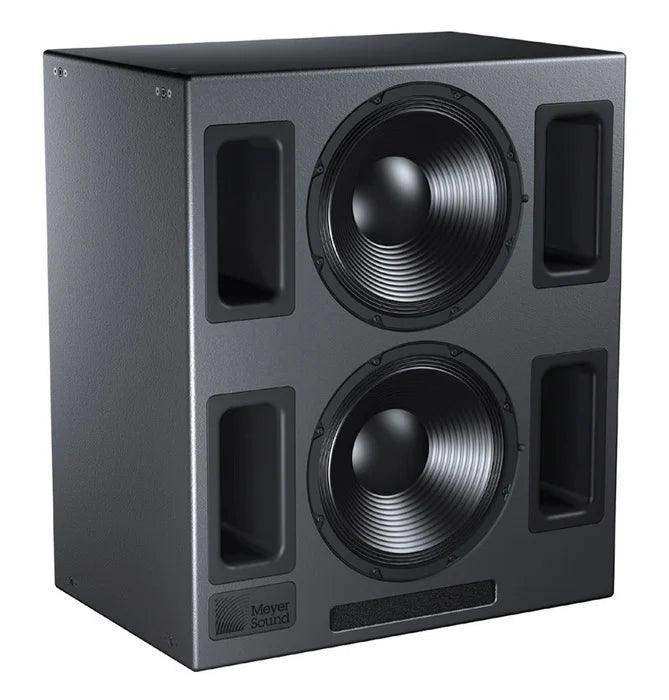

Meyer Sound ACHERON-LF 2 x 15" Cinema Screen Subwoofer - 09.193.001.03

Product Overview

The Meyer Sound ACHERON-LF is a self-powered cinema screen channel subwoofer designed exclusively to extend the low-frequency headroom of ACHERON 80 and ACHERON 100 screen channel loudspeakers in larger theaters. Housing dual 15-inch drivers, it operates from 37 Hz to 370 Hz and delivers a 133 dB linear peak SPL. Its frequency and phase responses are tailored to complement the ACHERON loudspeakers, converting each into a column of three aligned low-frequency drivers. The result is roughly 10 dB of additional low-frequency headroom on the LCR channels, depending on room and loading conditions.

Product Description

The ACHERON-LF uses a multi-way, gradated design in which all drivers are active at the lowest frequencies, with each rolling off one at a time via the integral active crossover. This technique eliminates interference between drivers at shorter wavelengths, maintaining ideal polar, phase, and frequency response through the low and low-mid range. It shares the same high-power 15-inch cone driver and rectangular footprint as the ACHERON, and is powered by a two-channel class AB/H amplifier producing 4500 W peak. It is intended to pair with the ACHERON-100 or ACHERON-80 screen channels, and complements the X-800C cinema subwoofer used for LFE. Additional Meyer Sound cinema products are available in the Meyer Sound collection. The ACHERON 80 or ACHERON 100 can be stacked on top of the ACHERON-LF with uptilt or downtilt using optional stacking brackets.

Key Features

• Dedicated Screen Channel Subwoofer — Designed exclusively to add low-frequency headroom to ACHERON 80 and ACHERON 100 screen channels in larger theaters.
• Dual 15-inch Drivers — Two high-power 15-inch cone drivers with 4-inch voice coils in a tuned, vented enclosure deliver maximum low-frequency impact.
• Gradated Multi-Way Design — Drivers roll off one at a time through the active crossover to eliminate interference and maintain ideal polar and phase response.
• Matched Response — The 37 Hz to 370 Hz operating range and phase response are chosen to complement the ACHERON loudspeakers.
• High Output — A 133 dB linear peak SPL and 4500 W peak amplifier provide ample headroom for demanding digital soundtracks.
• Shared Footprint — The cabinet shares the same rectangular footprint as the ACHERON, allowing the screen channel to stack on top with uptilt or downtilt.
• Optional RMS Monitoring — The optional RMS remote monitoring system reports operating parameters to a host computer running Compass software.

Typical Applications

• Auditorium
• Broadcast studio
• Multi-purpose room

Technical Specifications

Specifications sourced from Meyer Sound. Subject to change without notice.

Frequently Asked Questions

Can the ACHERON-LF be used as a standalone subwoofer?
No. The ACHERON-LF was designed exclusively for use with ACHERON 80 and ACHERON 100 screen channel loudspeakers to extend their low-frequency headroom, not as a general-purpose or LFE subwoofer.

How much additional headroom does it provide?
Pairing the ACHERON-LF with an ACHERON screen channel adds approximately 10 dB more low-frequency headroom, depending on room acoustics and loading conditions.

Can an ACHERON screen channel be stacked on the ACHERON-LF?
Yes. The ACHERON 80 or ACHERON 100 can be mounted on top of the ACHERON-LF with uptilt or downtilt using optional stacking brackets, since both share the same rectangular footprint.

Is the ACHERON-LF covered by a warranty?
Yes, it is covered under Meyer Sound's standard product warranty. For details, please contact us.
