Listen Technologies LA-82 – 6-Way RF Antenna Combiner
Product Overview

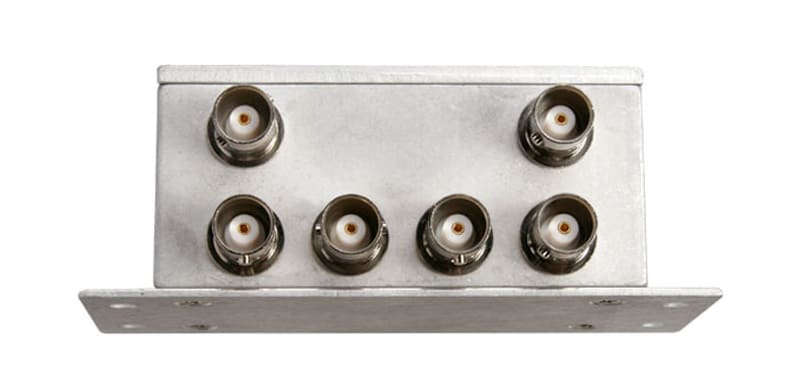

The Listen Technologies LA-82 is a 6-way RF antenna combiner, allowing up to six RF assistive listening transmitters to share a single antenna. Venues running multiple simultaneous channels — a main programme feed plus several interpretation languages — need one transmitter per channel, and running an antenna for each is neither practical nor electrically sound. The combiner is what makes a multi-channel RF installation work.
Product Description
Multi-channel RF assistive listening requires one transmitter per channel. A conference venue running four interpretation languages alongside the floor feed needs five transmitters.
Running a separate antenna for each is the obvious approach and the wrong one: adjacent antennas interfere with each other, coverage becomes unpredictable, and the installation multiplies cable runs and mounting points for no benefit.
The LA-82 combines up to six transmitter outputs onto one antenna feed, so coverage is defined by a single antenna position and the RF environment stays predictable. Where only four transmitters are involved, the 4-way combiner is the appropriate part. Antenna cable is ordered separately: RG-58 for shorter runs or low-loss RG-8 where the antenna is remote.
Key Features
- Six transmitter inputs — Combines up to six RF transmitter outputs onto a single antenna feed.
- Single antenna coverage — Keeps coverage defined by one antenna position rather than several interfering ones.
- Multi-channel installations — Supports venues running simultaneous interpretation or audio description channels.
- BNC connector family — Matches the connector standard used across the Listen stationary RF range.
Typical Applications
- Auditorium
- House of worship
- Conference room
- Government space
- Training room
- Multi-purpose room
- Commercial meeting space
Technical Specifications
| Manufacturer | Listen Technologies |
|---|---|
| Part Number | LA-82 |
| Type | RF antenna combiner |
| Inputs | 6 |
| Impedance | 50 ohm |
| Application | Multi-transmitter RF assistive listening installations |
Specifications sourced from the Listen Technologies product listing.
Frequently Asked Questions
When do I need a combiner?
Whenever more than one RF transmitter has to share an antenna, which is any venue running simultaneous interpretation or audio description channels.
Why not run one antenna per transmitter?
Adjacent antennas interfere with each other and make coverage unpredictable, as well as multiplying cable runs and mounting points.
Should I specify the 4-way or 6-way?
Match the combiner to the transmitter count, allowing for planned expansion. The LA-81 covers up to four transmitters, the LA-82 up to six.
What cable connects it to the antenna?
50 ohm coaxial, RG-58 for shorter runs or low-loss RG-8 where the antenna is remote from the rack.
Does combining reduce coverage?
A combiner introduces insertion loss, so factor that into the antenna cable budget on long runs. It remains preferable to the interference caused by parallel antennas.
What warranty and support apply?
Warranty terms are set by Listen Technologies. Contact Creation Networks for current terms and multi-channel RF design support.
