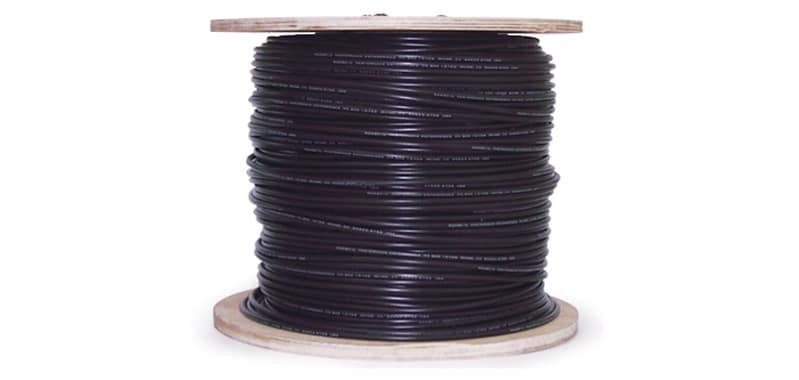

Listen Technologies LA-112-500 – RG-58 50 Ohm Coaxial Cable, 500 ft
Listen Technologies LA-112-500 – RG-58 50 Ohm Coaxial Cable, 500 ft is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Listen Technologies LA-112-500 – RG-58 50 Ohm Coaxial Cable, 500 ft
Product Overview
The Listen Technologies LA-112-500 is a 500 ft spool of RG-58 50 ohm coaxial cable for RF assistive listening antenna runs. In a stationary RF installation the antenna is positioned for coverage rather than convenience, which means a cable run between the transmitter rack and the antenna position. RG-58 suits shorter runs where cable loss is not the limiting factor. Supplied on a spool for field termination to the required length.
Product Description
Antenna placement determines RF coverage far more than transmitter power does, so the antenna goes where the coverage is needed and the cable follows.
RG-58 is the standard 50 ohm coaxial cable for shorter antenna runs where accumulated loss does not become the limiting factor. Where the run is long enough for loss to matter, low-loss RG-8 is specified instead.
Supplied on a spool for field termination. Terminate with RG-58 BNC connectors, and use a BNC coupler where two runs have to be joined.
Where several transmitters share a single antenna, specify a 4-way or 6-way RF antenna combiner rather than running parallel antennas, which will interfere.
Key Features
- RG-58 50 ohm construction — Matches the impedance of Listen RF transmitters and antennas.
- Standard loss cable — Economical choice for shorter antenna runs where accumulated loss is not the limiting factor.
- Supplied on a spool — Cut and terminated on site to the exact run length required.
- BNC connector family — Uses the same connector standard as Listen stationary RF transmitters and antennas.
Typical Applications
- Auditorium
- House of worship
- Conference room
- Government space
- Training room
- Multi-purpose room
- Commercial meeting space
Technical Specifications
| Manufacturer | Listen Technologies |
|---|---|
| Part Number | LA-112-500 |
| Cable Type | RG-58 50 ohm coaxial |
| Impedance | 50 ohm |
| Form | 500 ft spool |
| Loss Characteristic | Standard |
| Application | RF assistive listening antenna run |
Specifications sourced from the Listen Technologies product listing.
Frequently Asked Questions
How do I choose between RG-58 and RG-8?
By run length. RG-8 has lower loss per foot and is specified for long runs to a remote antenna. RG-58 is the economical choice where the run is short enough that accumulated loss is not the limiting factor.
Should I use preassembled or spool cable?
Preassembled removes field termination and the risk of a poorly made connector degrading the antenna path. Spool cable suits runs where the exact length is not known until first fix.
Can two runs be joined?
Yes, with a BNC coupler. Keep the number of joints to a minimum, since each is a potential point of loss and a future service item.
What connectors are required?
BNC connectors matched to the cable type — RG-58 in this case. Preassembled cables arrive terminated.
Can several transmitters share one antenna?
Yes, through an RF combiner. Running parallel antennas instead will cause interference between transmitters.
Where should the antenna be positioned?
Above and central to the seating area where the structure allows. Coverage depends far more on antenna placement than on transmitter power.
What warranty and support apply?
Contact Creation Networks for supply terms and RF design support on antenna cable schedules.
