LEA Professional Connect Series Glass – PoE In-Wall Touch Controller with Bluetooth, Streaming & Dante

What is the LEA Professional Connect Series Glass?

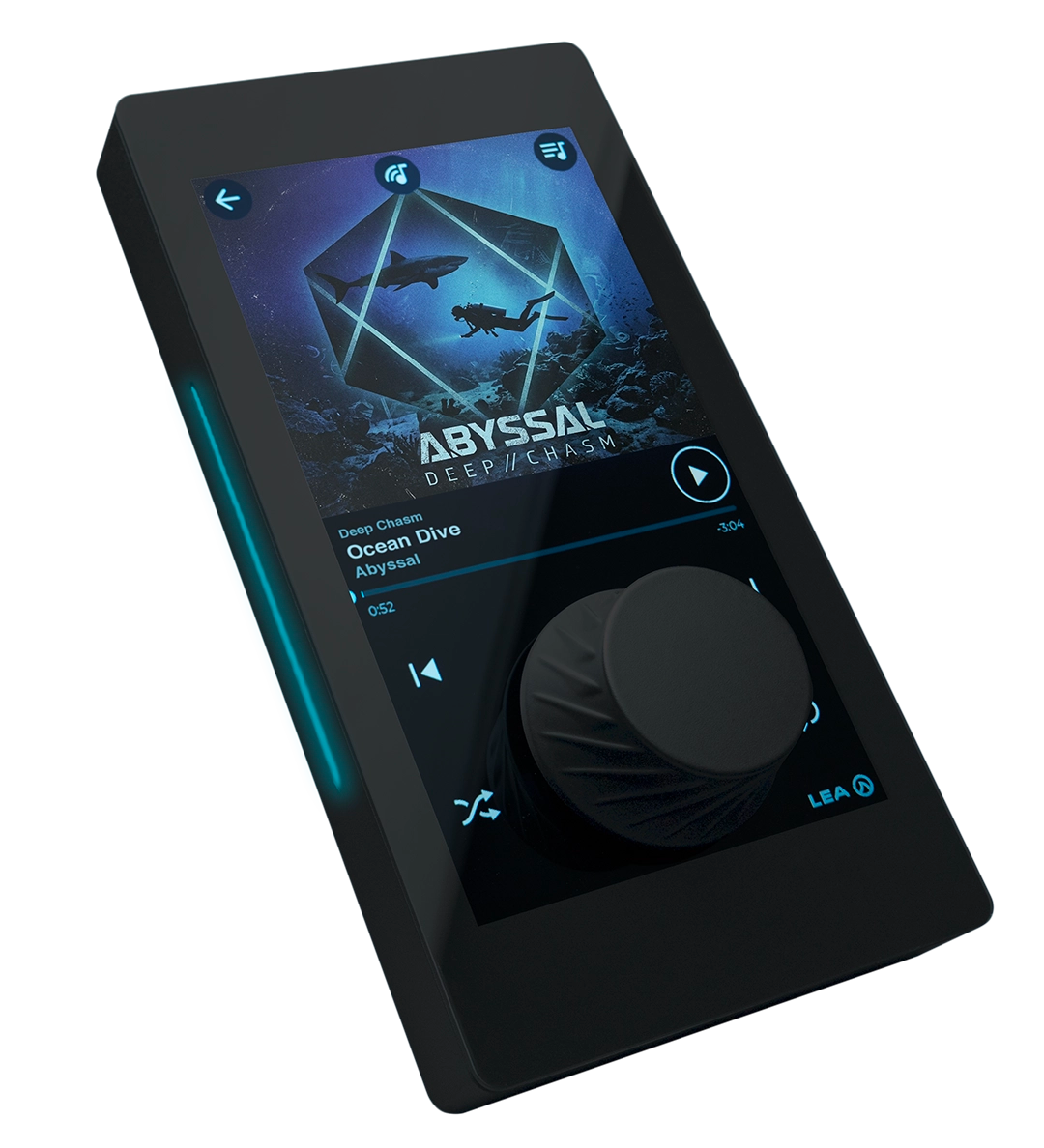

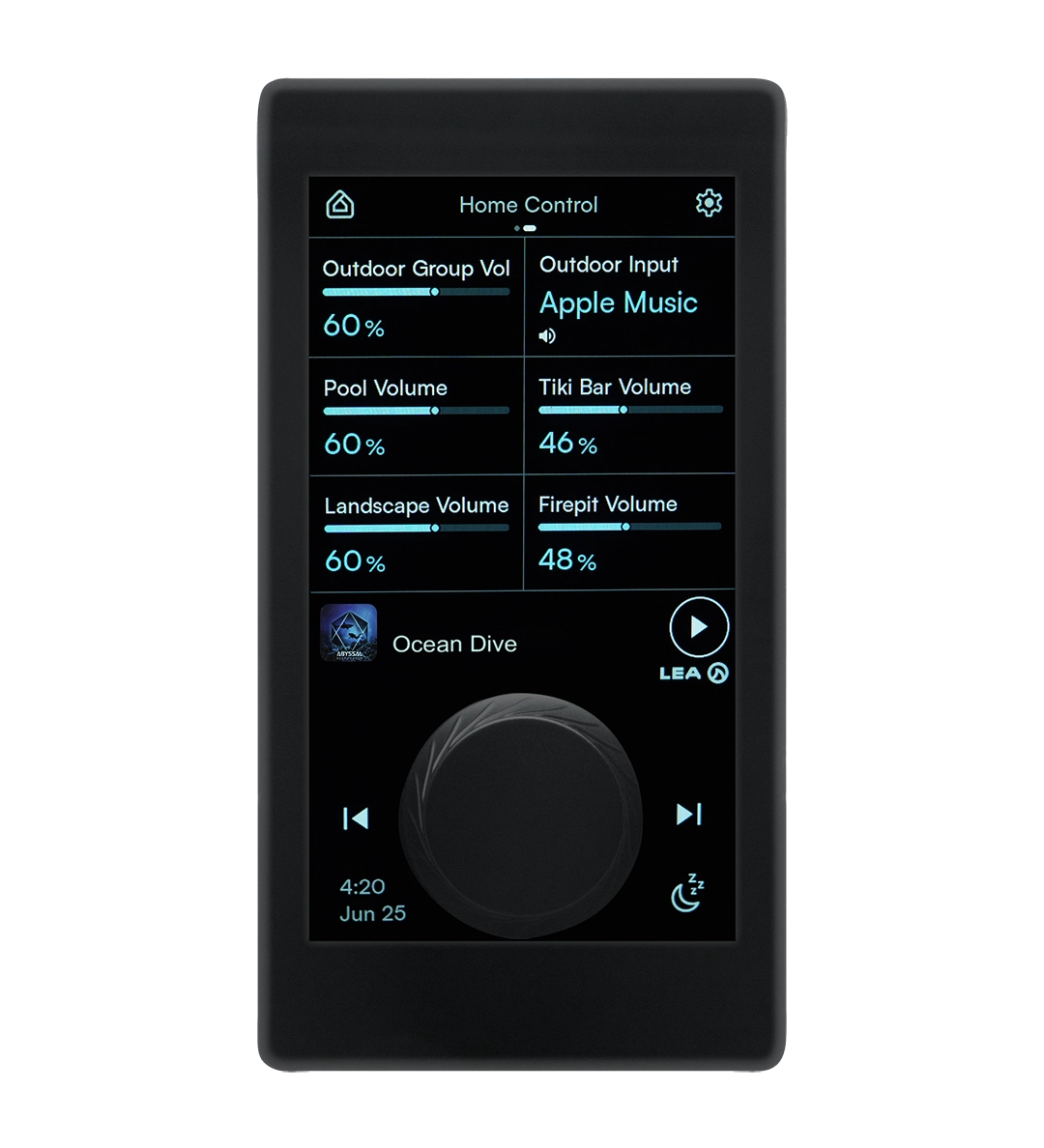

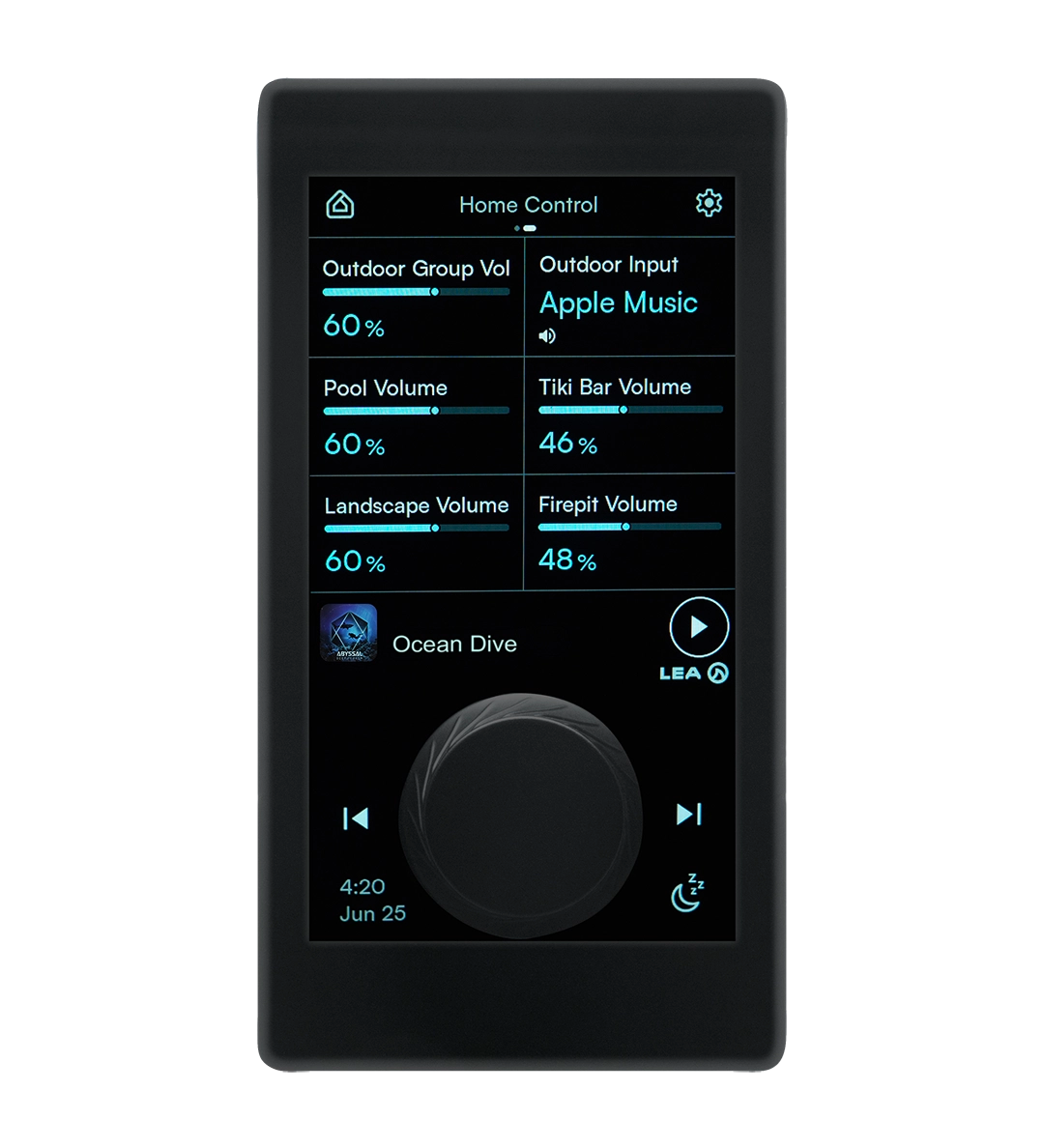

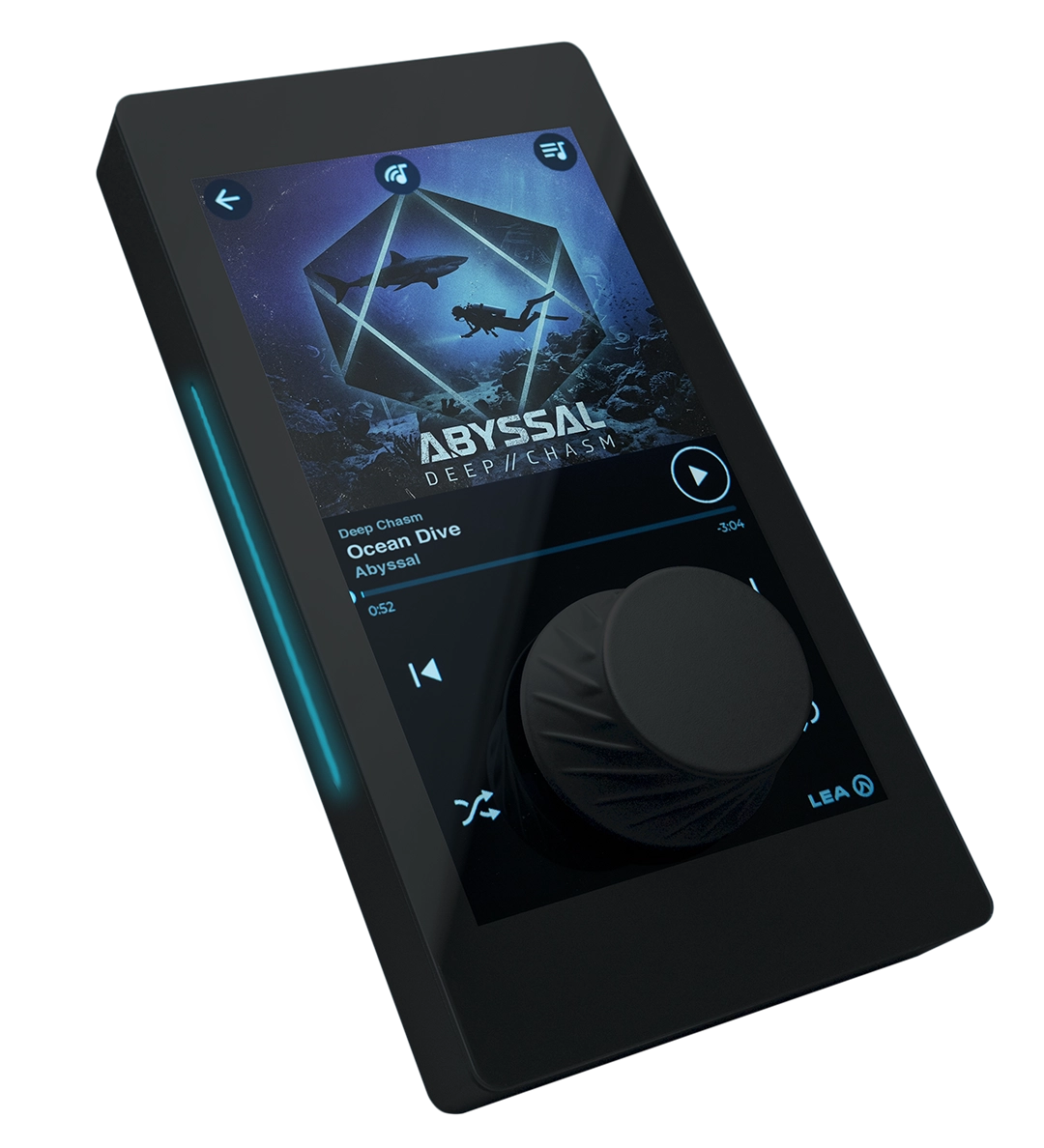

The LEA Professional Connect Series Glass is a PoE-powered, in-wall touch controller for LEA Professional amplifiers. A full-color touchscreen and a rotary knob let anyone pick a source and set the volume for a room or a group of zones. It also plays audio on its own: built-in Bluetooth and streaming services feed the system, and Dante sends that audio across the network to any LEA amplifier. It comes in black or white glass.

What is included?

• Connect Series Glass wall controller in black or white

• Powered by your PoE network switch; no power supply needed

How does the LEA Professional Connect Series Glass work?

The Glass mounts in a standard U.S. or EU electrical box and runs on a single network cable that carries both power (PoE) and control. Once it's added to an LEA system through the Web UI, SharkWare, or LEA Cloud, each panel is assigned the channels or groups it controls. Users then tap or turn the knob to change the source, adjust the input level, or set the output volume, with no programming or third-party control system needed.

Unlike the earlier Connect Series Touch, the Glass is also an audio source. Guests can pair a phone over Bluetooth, or the panel can play a commercial or private streaming service. Dante carries that audio to your CS84, CS164, CS1504 or other Dante-enabled LEA amplifiers, so one panel can feed many zones.

What are the key features of the LEA Professional Connect Series Glass?

• Full-color touchscreen and rotary knob for simple source and volume control.

• Built-in Bluetooth and streaming turn the panel into an audio source.

• Dante AoIP sends Bluetooth and streaming audio across the network.

• Group or per-channel control of output volume, source select, and input volume.

• PoE powered — one cable for power and control.

• Fits U.S. and EU electrical boxes.

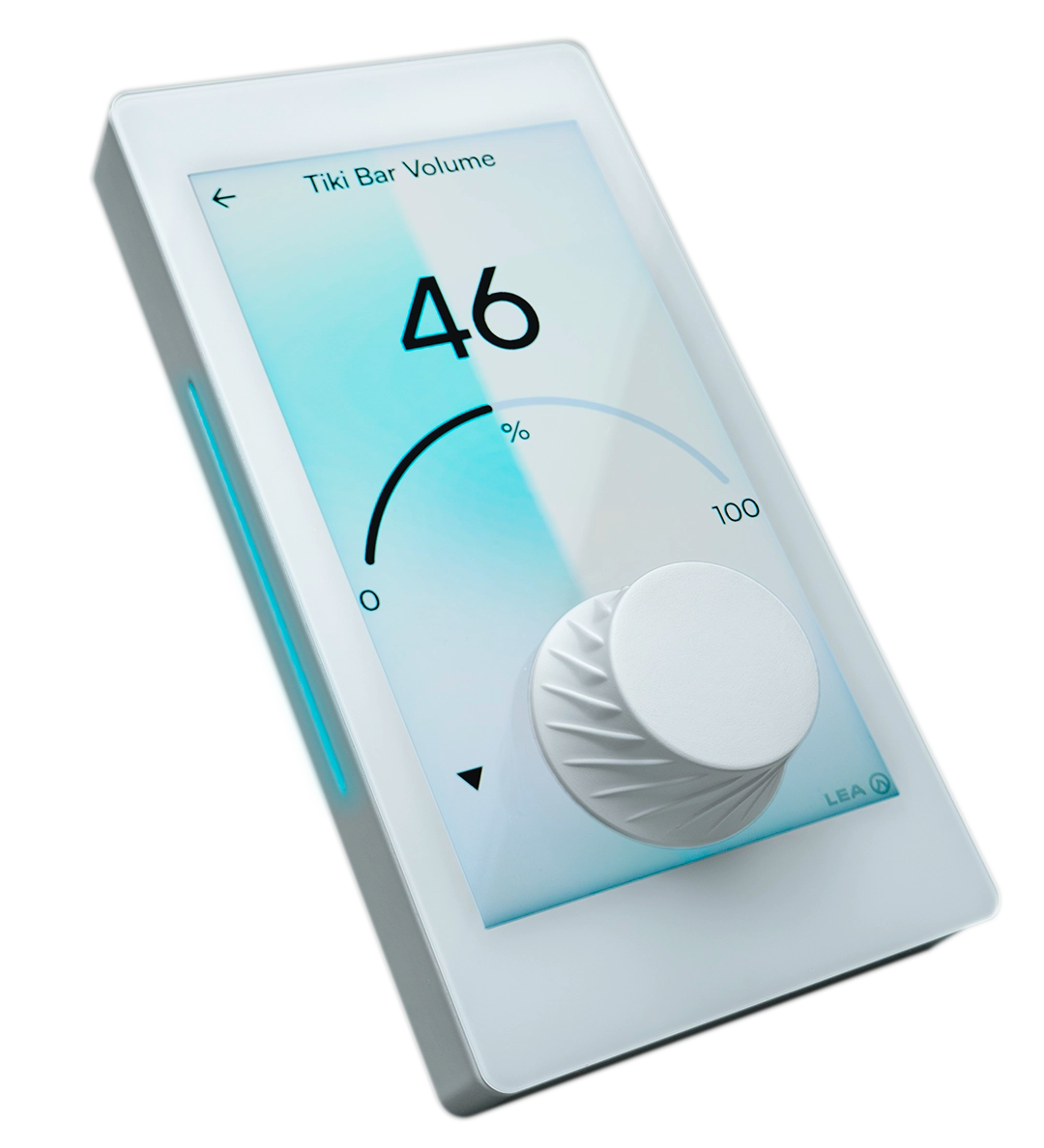

• Black or white glass to match the room.

• Managed in Web UI, SharkWare, and LEA Cloud.

Where is the LEA Professional Connect Series Glass typically used?

• Restaurants, bars, and hotel lobbies

• Retail stores and showrooms

• Corporate break rooms, lobbies, and training rooms

• Gyms, studios, and multipurpose rooms

• Houses of worship and fellowship halls

• High-end residential whole-home audio

Technical Specifications

Frequently Asked Questions

Which amplifiers does the Connect Series Glass work with?

It's built for LEA Professional Connect Series amplifiers. Bluetooth and streaming audio travel over Dante, so use a Dante-enabled LEA model to play that audio through the system.

How is it powered?

Over PoE from your network switch. One cable handles power and control.

Can one panel control several zones?

Yes. It controls individual channels or groups, including output volume, input source, and input volume.

How is it different from the Connect Series Touch?

Both control LEA amplifiers from the wall. The Glass adds a glass finish, built-in Bluetooth, streaming services, and Dante to send that audio to the amplifiers.

Does it fit a standard wall box?

Yes. It works with U.S. and EU electrical boxes.

Can Creation Networks design and install it?

Yes. Creation Networks designs, installs, and supports LEA-powered audio systems nationwide. Contact us at 888-230-3661 or sales@creationnetworks.net.
