K-Array Lyzard KZ14RW I – Ultra-Mini White In-Wall Line Array

Product Overview

The K-Array Lyzard KZ14RW I is a white in-wall ultra-mini line array speaker designed to disappear into light-colored walls and ceilings while delivering true array performance. Behind its slim 28 x 106 mm white aluminum face sit four drivers producing 98 dB peak SPL with controlled vertical dispersion — a flush-mount white micro line array that keeps speech clear and surfaces clean. With spring-clip installation and an IP64 rating, it serves design-led boardrooms, conference rooms, houses of worship, and government spaces.

Product Description

The Lyzard KZ14RW I aligns 4 x 0.5-inch long-excursion neodymium magnet transducers in an ultra-resistant milled aluminum enclosure measuring 28 x 106 x 11 mm at just 59 grams. Built on K-Array's PAT array technology, it shapes a tight 40-degree vertical pattern that limits ceiling and tabletop reflections, while 140-degree horizontal coverage spreads sound evenly across seating areas. Frequency response runs 500 Hz to 18 kHz (-6 dB) at up to 98 dB peak SPL with minimum residual noise. The metallic spring clip for recessed in-wall installation snaps the speaker flush into a wall cutout in seconds, leaving only the slim white face visible.

A 16-ohm passive speaker with IN+/IN- screw terminals, the KZ14RW I requires a K-Array amplifier loaded with the dedicated Lyzard preset, such as the Kommander KA02 I DSP amplifier. Pair it with the white Rumble KU44W subwoofer for a color-matched full-range system. The black recessed version is the KZ14R I, the white surface-mount model is the KZ14W I, and a complete system built on this speaker platform is available as the Azimut KAMUT2L II.

Key Features

• White flush-mount design — The white aluminum face and recessed installation make the array nearly invisible on light surfaces.

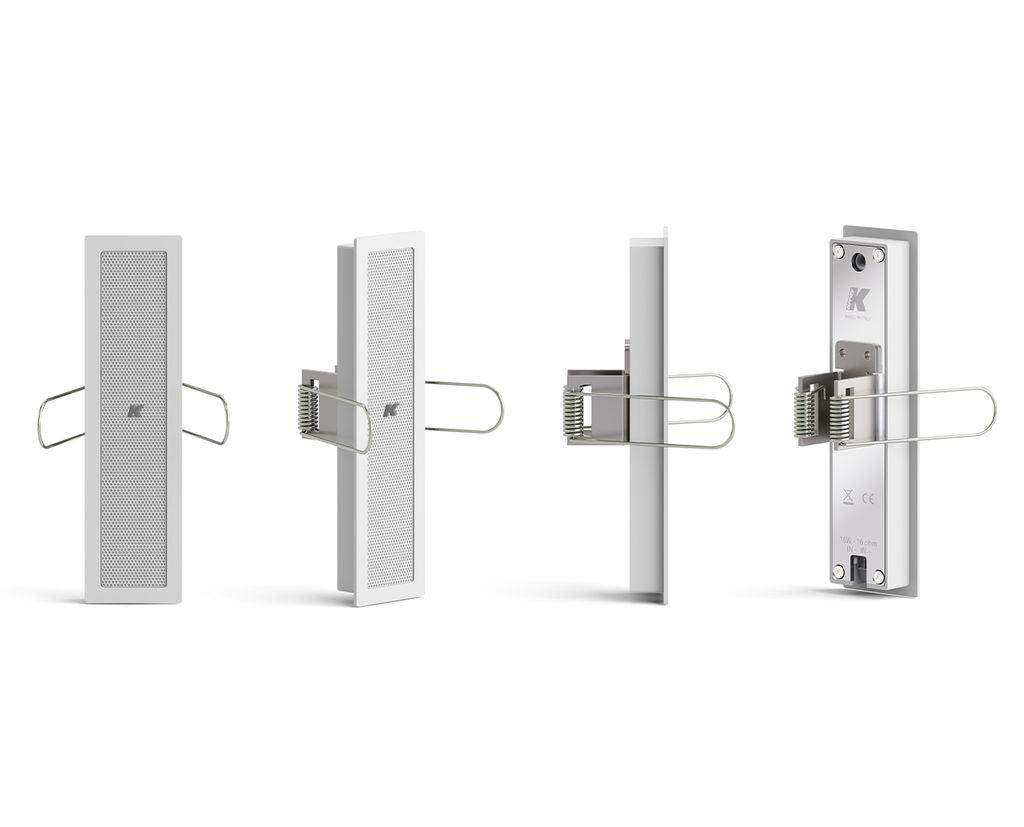

• Spring-clip installation — The metallic clip secures the speaker into its cutout in seconds with no exposed hardware.
• PAT array technology — True line array directivity from a recessed speaker only 10.6 cm tall.
• Four neodymium drivers — 4 x 0.5-inch long-excursion transducers deliver 98 dB peak SPL with minimum residual noise.
• 40-degree vertical control — Focused vertical dispersion improves intelligibility in reflective rooms.
• IP64 rated — Dust and splash protection extends use to humid interiors and covered exterior zones.
• 16-ohm passive operation — Multiple units share K-Array amplifier channels in distributed designs.
• Custom RAL option — Factory color matching is available beyond standard white and black.

Typical Applications

• Boardrooms and conference rooms with white interiors
• Houses of worship preserving sanctuary aesthetics
• Government spaces with architectural finish requirements
• Commercial meeting spaces and multi-purpose rooms
• Training rooms and all-hands rooms with recessed audio
• Broadcast studios and auditorium fill positions

Technical Specifications

Frequently Asked Questions

Is the KZ14RW I acoustically the same as the black KZ14R I?
Yes — identical drivers and performance. The black version is the KZ14R I; only the finish differs.

What does installation involve?
Cut a small opening in the wall or ceiling surface, terminate the speaker wire on the IN+/IN- screw terminals, and press the speaker in. The metallic spring clip retains it flush.

Which amplifier should drive it?
A K-Array amplifier loaded with the dedicated Lyzard preset; the Kommander KA02 I is the standard match for Lyzard systems.

How do I extend the system below 500 Hz?
Add a Rumble KU44 series ultra-slim subwoofer — the white KU44W keeps the whole system color-matched — and the amplifier preset manages the crossover.

Can the speaker face be color-matched to a specific paint?
Yes. K-Array offers custom RAL factory finishes; contact us with the RAL code when ordering.

What warranty applies?
Full K-Array manufacturer warranty through Creation Networks, an authorized dealer, with pre- and post-sale AV integration support.
