Poly Studio X70 – All-In-One Video Bar with TC10 Large Rooms

Product Overview

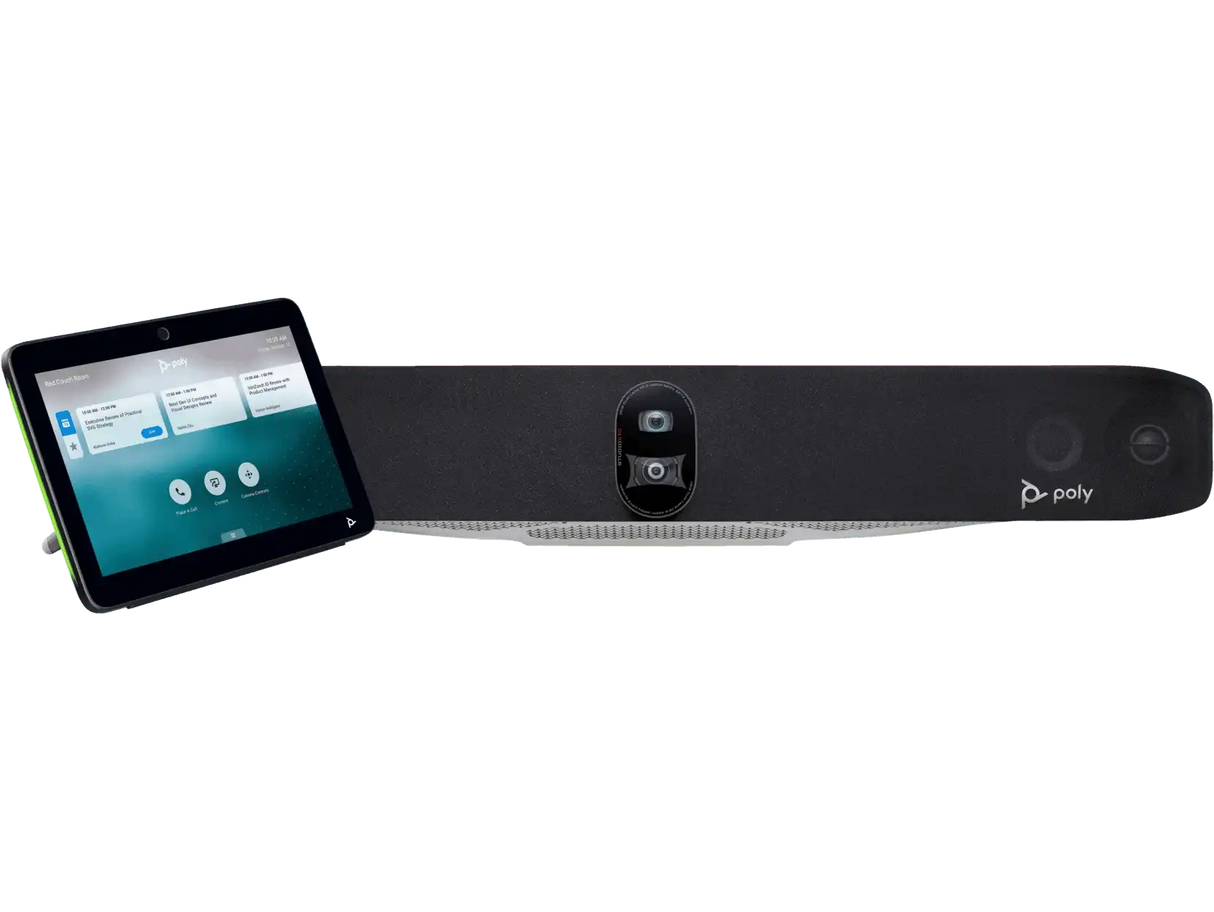

The Poly Studio X70 with TC10 (8L531AA) is a complete large-room video conferencing kit combining HP Poly's dual-camera 4K video bar with the 10.1-inch Poly TC10 touch controller. The bar integrates a dual-lens 20MP camera, two-way stereo speakers, and a four-microphone array in one wall-mounted unit, while the TC10 provides one-touch join and in-room control from the conference table. Certified for Microsoft Teams, Zoom, and Google Meet, the built-in codec runs cloud video natively, so a boardroom deployment needs no room PC and no separate codec. This kit is the usual specification for executive boardrooms where a larger in-room console is expected.

Product Description

HP Poly rates the Studio X70 for large rooms up to roughly 30 ft. by 20 ft. Two 20 MP sensors capture 2160p 4K UHD: a 120° horizontal wide lens covering the full table and a 70° horizontal narrow lens for close framing, with 7.3x digital zoom. Poly DirectorAI performs people framing, group framing, and speaker framing by cutting between the two lenses instead of cropping one sensor, which keeps the shot composed as discussion moves down a long table. A motorized electronic privacy shutter physically closes the optics when the room is idle, a common requirement in executive and regulated spaces.

Audio coverage is the reason integrators specify the X70 over a medium-room bar. Two-way stereo speakers with aluminum cone tweeters and advanced bass ports deliver 2 x 20 W RMS on the mid drivers and 2 x 15 W RMS on the tweeters, filling a large boardroom without an external amplifier or DSP. Two MEMS microphones and two second-order gradient microphones pick up to 25 ft. down the table, and Poly NoiseBlockAI and Acoustic Fence suppress keyboard noise, HVAC, and voices from outside the room rather than gating the channel. On unusually long tables, add a Poly Studio expansion table microphone.

The bundled Poly TC10 touch controller attaches over the room network, so the table needs a single cable drop rather than a run back to the bar. Its 10.1-inch display gives users scheduled meeting join, call control, and content sharing without exposing the underlying platform. On the bar, connectivity covers two HDMI 1.4 outputs for dual-display rooms, one HDMI 1.4 input for a local source or room PC, one USB Type-C and two USB Type-A ports at 5 Gbps, two RJ-45 interfaces, and analog audio in and out. Content shares wired over HDMI or wirelessly through Apple AirPlay, Miracast, and digital whiteboarding. A wall mount kit ships in the box; use the Poly VESA mount for Studio X70 for VESA-pattern display installs, or the Poly Studio X70/X72/V72 table stand for credenza placement. Poly Lens provides cloud monitoring, firmware distribution, and room analytics across the fleet.

Key Features

• Bundled Poly TC10 Controller — A 10.1-inch touch panel ships with the bar, giving boardrooms a full-size in-room console under a single part number.
• Dual-Lens 20MP Camera System — Separate 120° wide and 70° narrow 4K sensors cover the whole room and the active speaker without a mechanical PTZ head.
• Poly DirectorAI Framing — People, group, and speaker framing switch between lenses automatically so no camera operator is required.
• 7.3x Digital Zoom — Reaches the far end of a 30-foot room while keeping participants legible to remote attendees.
• High-Output Stereo Speakers — Two-way drivers with aluminum cone tweeters and bass ports fill a large boardroom with no external amplifier or DSP.
• Four-Microphone Array — Two MEMS and two second-order gradient microphones pick up to 25 ft. down the conference table.
• NoiseBlockAI and Acoustic Fence — Reject keyboard noise, HVAC, and corridor conversations instead of gating the entire audio channel.
• Built-In Codec, No Room PC — Microsoft Teams, Zoom, and Google Meet run natively on the bar, with H.323 and SIP for standards-based estates.
• Single Network Drop Per Device — The bar and the TC10 each attach over Ethernet, which simplifies cable management in a finished boardroom.
• Poly Lens Cloud Management — Centralizes monitoring, firmware control, and room analytics for IT teams running many large rooms.

Typical Applications

• Boardroom
• Conference room
• Training room
• All-hands room
• Multi-purpose room
• Commercial meeting space
• Government space

Technical Specifications

Frequently Asked Questions

What is included in the Studio X70 with TC10 kit?
Part number 8L531AA ships the Studio X70 video bar together with the Poly TC10 10.1-inch touch controller, plus the AC power adapter, two HDMI cables, an Ethernet cable, and a wall mount kit. One part number covers the whole room system.

How does the TC10 connect to the bar?
The TC10 is a network-attached controller that pairs with the Studio X70 over the room LAN, so the table needs one cable drop rather than a home run back to the bar. It handles scheduled meeting join, call control, and content sharing.

Should I specify the TC10 or the TC8?
Both deliver the same core in-room control. The 10.1-inch TC10 is the usual choice for boardrooms and executive spaces where a larger console is expected; the 8-inch TC8 suits standard conference tables. The X70 supports either controller.

What room size does this kit cover?
HP Poly rates the Studio X70 for large rooms up to approximately 30 ft. by 20 ft., with microphone pickup to 25 ft. Add a Poly Studio expansion table microphone for longer tables rather than a second bar.

How is the bar mounted in a finished boardroom?
A wall mount kit ships in the box for installation below or above the display. Use the Poly VESA mount for Studio X70 for VESA-pattern display and cart installs, or the Poly Studio X70/X72/V72 table stand for credenza placement.

How does this kit integrate with an existing AV system?
USB Type-C and Type-A connections let the bar operate as a USB peripheral for a room PC, and analog audio in and out tie into an installed sound system. Two HDMI outputs drive a dual-display room, and H.323 and SIP support connects to standards-based video infrastructure.

What warranty and support are included?
The kit carries the Poly standard one-year limited warranty. Poly+ service agreements are available separately for extended coverage, advance hardware replacement, and technical support; contact Creation Networks for the tier that matches your deployment.
