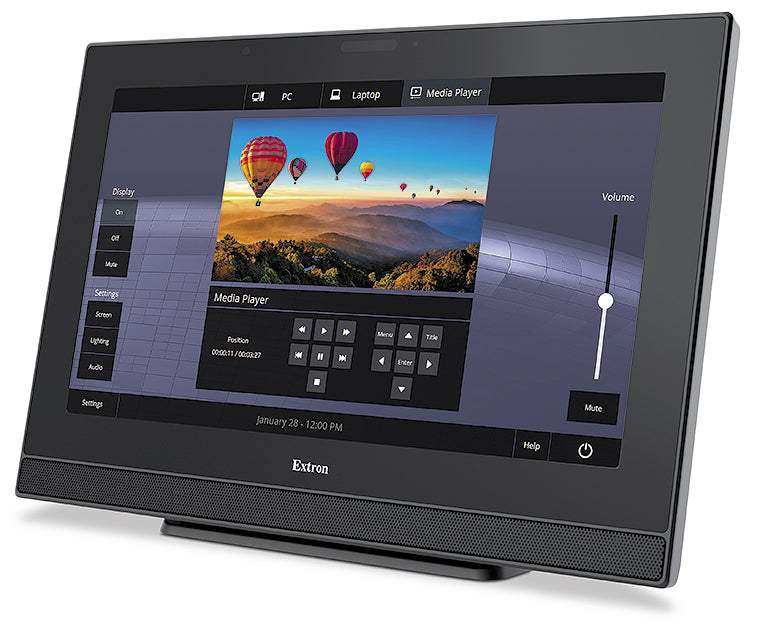

Extron TLP Pro 1525TG 15” Tabletop TouchLink Pro Touchpanel

Product Description

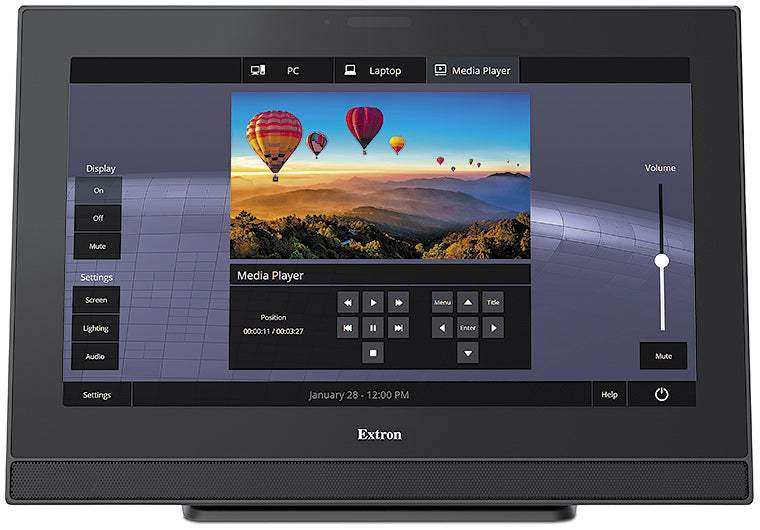

The Extron TLP Pro 1525TG is a 15-inch tabletop TouchLink Pro touchpanel with a capacitive, edge-to-edge glass touchscreen built for commercial AV control systems. Its 1366x768 (WXGA) display and quad-core processor give operators a responsive control surface for video, audio, lighting, shades, HVAC, and security in conference rooms, boardrooms, classrooms, and collaboration spaces. The large 15-inch tabletop touchpanel format provides ample room for multi-source layouts and full-motion video preview while sitting securely on any table.

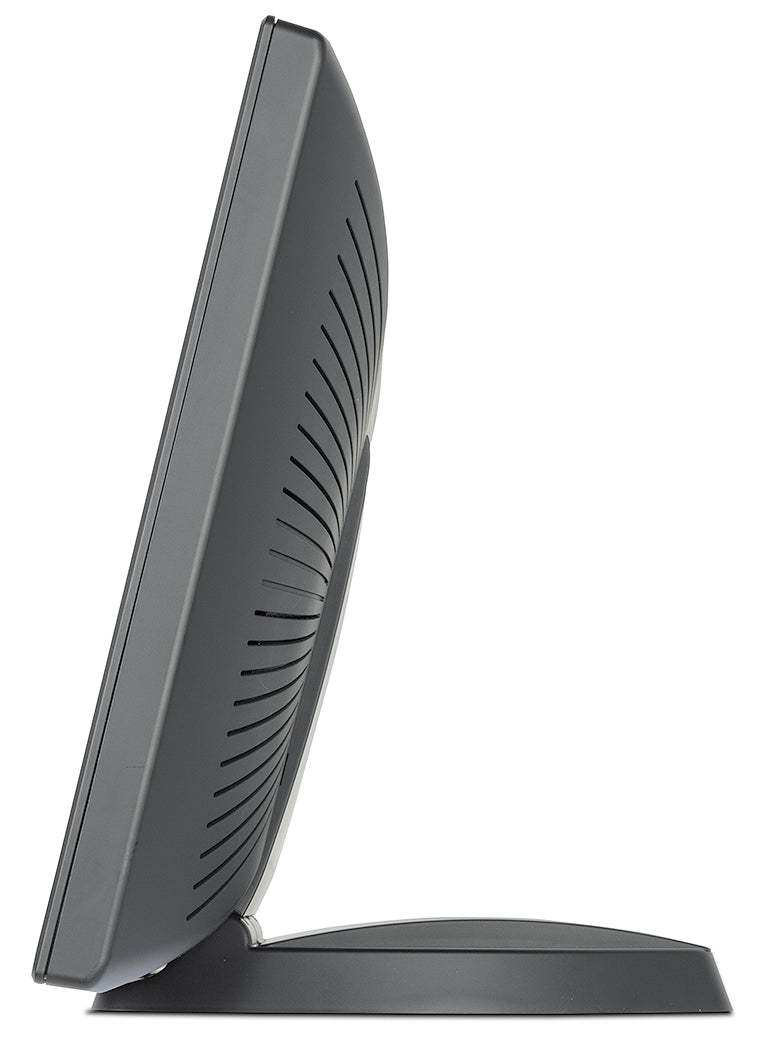

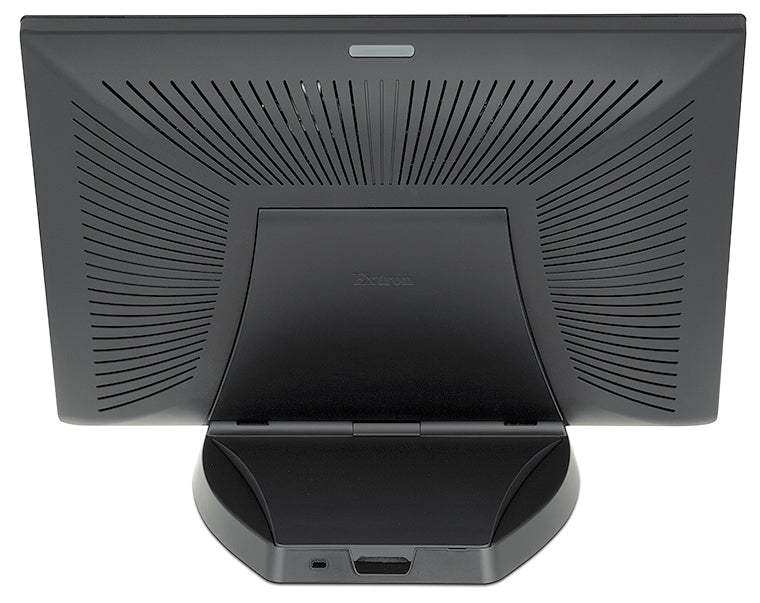

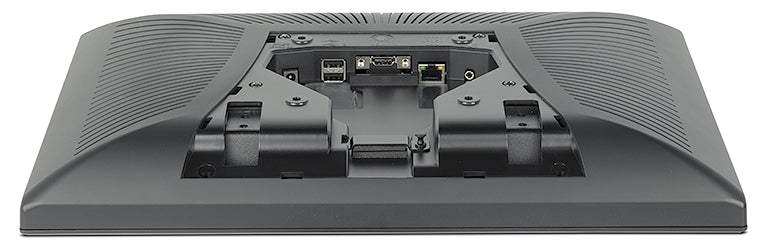

The TLP Pro 1525TG accepts HDCP-compliant video from one HDMI input and one Extron XTP input, supporting resolutions from 640x480 up to 1920x1200 so operators can preview a source on the panel before routing it to a room display. The weighted base tilts through a 40-degree range, threaded baseplate holes and a VESA FDMI Type D 100 mm pattern support secure furniture or wall mounting, and Kensington lock support lets integrators physically secure the panel to a table. Built-in stereo speakers, an ambient light sensor, a motion detector, and configurable red/green status lights round out a touchpanel designed for everyday commercial-grade use.

This touchpanel works with any Extron control processor and HC 400 Series system and runs over standard Ethernet network infrastructure for cost-effective AV system integration. All TouchLink Pro touchpanels are customized using Extron GUI Designer software with Global Configurator Plus, Global Configurator Professional, or ControlScript programming. Browse the full Extron collection at Creation Networks, or compare this model with the wall-mount Extron TLP Pro 1525MG 15" Wall Mount and the larger TLP Pro 1725TG 17" Tabletop.

Key Features

• 15" Capacitive WXGA Touchscreen — The edge-to-edge glass display renders 1366x768 resolution with 16.7 million colors for a vibrant, highly responsive control surface.
• Quad-Core Processor — An ultra-fast quad-core processor delivers quick page loads so operators move through control screens without delay.
• HDMI and XTP Video Preview — Full-motion video preview and monitoring let users verify HDCP-compliant HDMI and Extron XTP sources directly on the panel before routing.
• Broad Control Processor Compatibility — The panel works with any Extron control processor and HC 400 Series system for flexible AV control system design.
• Flexible Power Input — The touchpanel runs on 12 VDC or PoE+ (IEEE 802.3at), letting integrators power it from a network switch or injector without a bulky local supply.
• Built-In Stereo Speakers — Integrated speakers provide stereo audio for video preview and audible feedback from button presses.
• Ambient Light and Motion Sensors — A light sensor adjusts screen brightness to room conditions while a motion detector wakes the panel automatically.
• Status Light Indicators — Configurable red and green status lights communicate room availability or call status at a glance.
• Flexible Mounting and Security — The weighted base allows up to 40 degrees of tilt, a VESA FDMI Type D 100 mm pattern supports furniture or wall mounting, and Kensington lock support secures the panel to a surface.
• Remote Management — Integrators can manage, monitor, and control the device remotely with GlobalViewer Enterprise resource management software and the Extron Control app.

Technical Specifications

Frequently Asked Questions

What control processors is the TLP Pro 1525TG compatible with?

The TLP Pro 1525TG works with any Extron control processor and with the HC 400 Series system, supporting complete interactive control of a broad range of source devices in a commercial AV system.

How is the touchpanel powered and cabled?

The panel runs on 12 VDC or PoE+ (IEEE 802.3at, class 4). Using PoE+, a single CAT 5e/6/7 cable run carries both data and power over standard Ethernet infrastructure. A power supply is not included with the unit.

Can I preview video sources on the panel?

Yes. The TLP Pro 1525TG provides full-motion video preview and monitoring from one HDCP-compliant HDMI input and one XTP input, so operators can confirm a source on the touchpanel before routing it to a room display.

How is the panel secured on a table?

The weighted base holds the panel in place and tilts through a 40-degree range. For added security, the touchpanel includes Kensington lock support and threaded baseplate holes for permanent furniture mounting, and it accepts the optional SMA-1 Swivel Mount Adapter.

What is the warranty?

Extron covers the TLP Pro 1525TG with a 3-year parts and labor warranty; the touchpanel display and overlay components are covered for 1 year. Contact Creation Networks for AV integration support and ordering assistance.
