Extron TLP Pro 1525MG 15" Wall Mount TouchLink Pro Touchpanel
Product Description

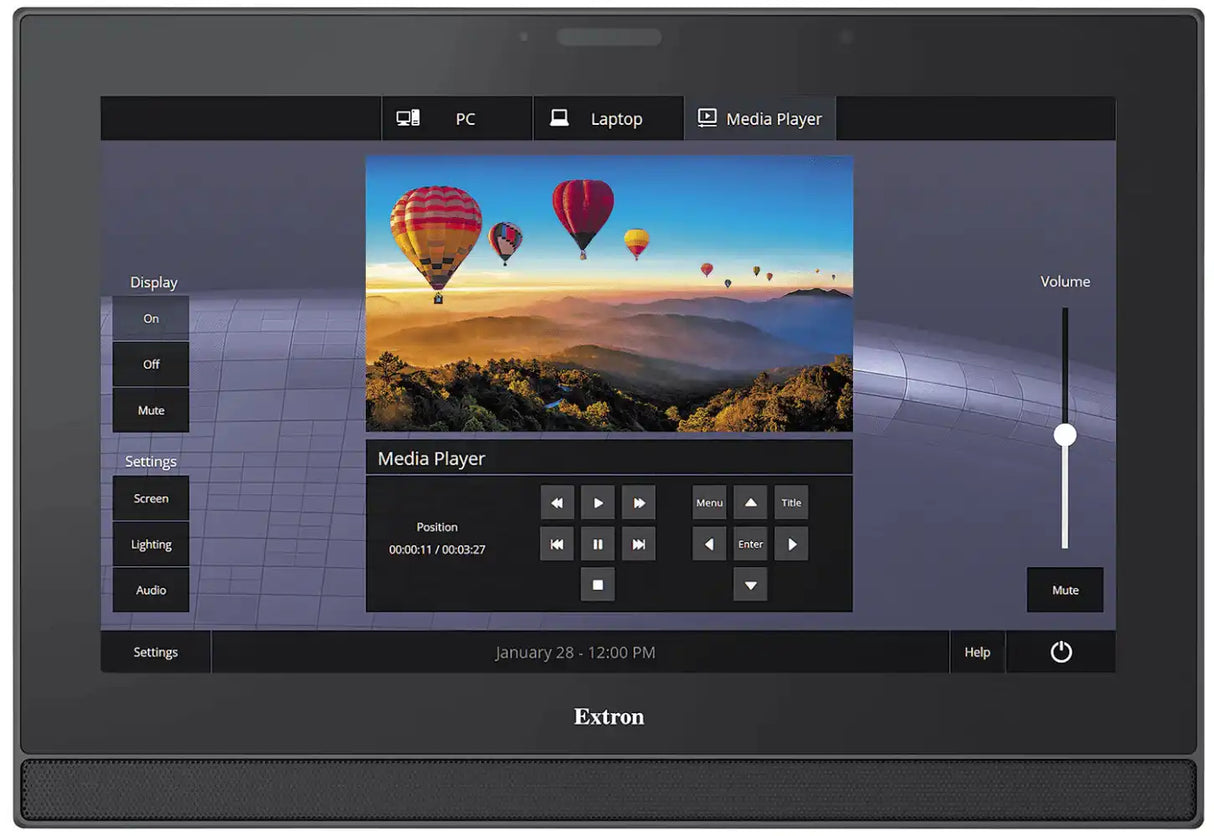

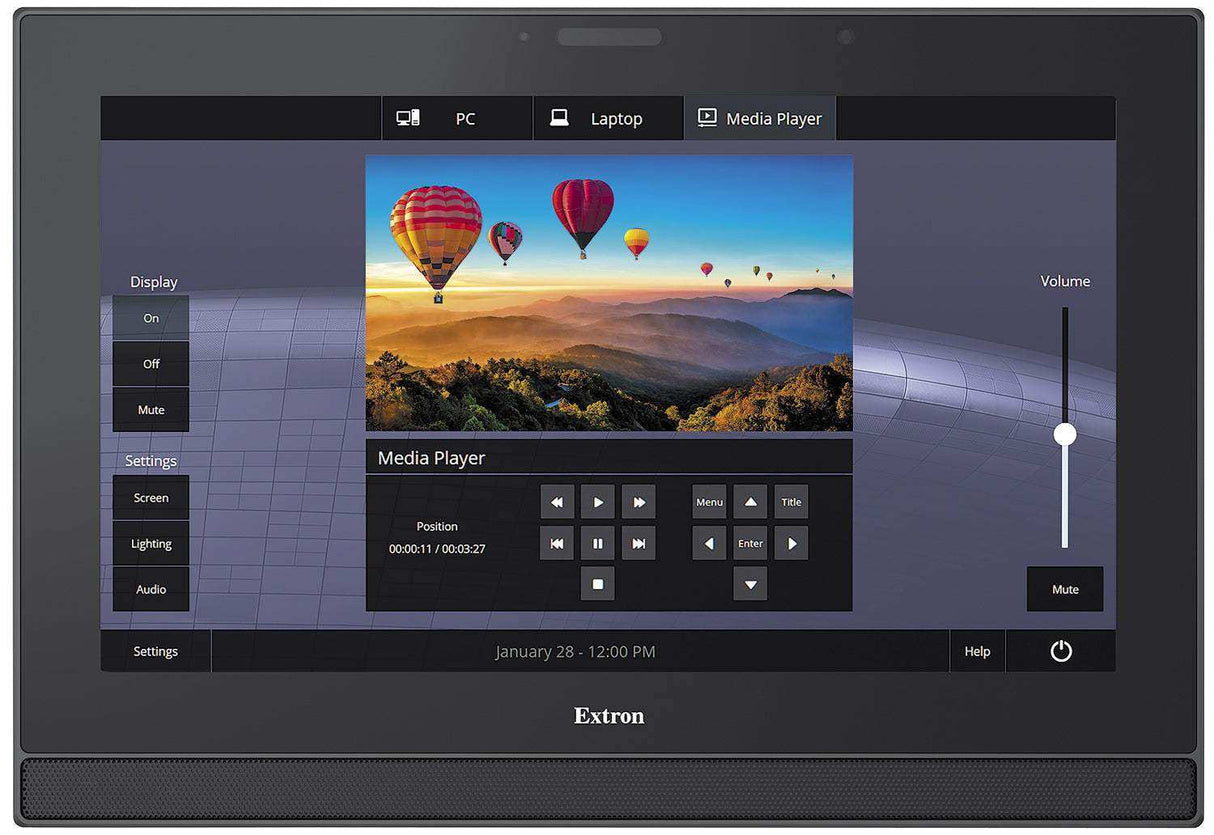

The Extron TLP Pro 1525MG is a 15-inch wall mount TouchLink Pro touchpanel with a capacitive, edge-to-edge glass touchscreen designed for commercial AV control systems. Its 1366x768 (WXGA) display and quad-core processor give operators a responsive control surface for video, audio, lighting, shades, HVAC, and security in conference rooms, classrooms, lecterns, and meeting spaces. As a flush wall mount touchpanel, the 1525MG keeps the control interface fixed in place while presenting a large surface for multi-source layouts and full-motion video preview.
The TLP Pro 1525MG accepts HDCP-compliant video from one HDMI input and one Extron XTP input, supporting resolutions from 640x480 up to 1920x1200 so operators can preview a source on the panel before routing it to a room display. The panel mounts on a wall, lectern, or any flat surface with the included hardware, and the optional BB 700M back box can be added where local codes require a rear metal enclosure. Built-in stereo speakers, an ambient light sensor, a motion detector, and configurable red/green status lights make it a practical commercial-grade interface for everyday operation.
This wall mount touchpanel works with any Extron control processor and HC 400 Series system and runs over standard Ethernet network infrastructure for cost-effective AV system integration. All TouchLink Pro touchpanels are customized using Extron GUI Designer software with Global Configurator Plus, Global Configurator Professional, or ControlScript programming. Browse the full Extron collection at Creation Networks, or compare this model with the tabletop Extron TLP Pro 1525TG 15" Tabletop and the larger TLP Pro 1725MG 17" Wall Mount.
Key Features
- 15" Capacitive WXGA Touchscreen — The edge-to-edge glass display renders 1366x768 resolution with 16.7 million colors for a vibrant, highly responsive control surface.
- Quad-Core Processor — An ultra-fast quad-core processor delivers quick page loads so operators move through control screens without delay.
- HDMI and XTP Video Preview — Full-motion video preview and monitoring let users verify HDCP-compliant HDMI and Extron XTP sources directly on the panel before routing.
- Broad Control Processor Compatibility — The panel works with any Extron control processor and HC 400 Series system for flexible AV control system design.
- PoE+ Powered — The touchpanel draws power directly from a PoE+ (IEEE 802.3at) switch or injector, eliminating the need for a bulky local power supply.
- Built-In Stereo Speakers — Integrated speakers provide stereo audio for video preview and audible feedback from button presses.
- Ambient Light and Motion Sensors — A light sensor adjusts screen brightness to room conditions while a motion detector wakes the panel automatically.
- Status Light Indicators — Configurable red and green status lights communicate room availability or call status at a glance.
- Flush Wall Mount Design — The panel mounts on a wall, lectern, or flat surface with included hardware, and accepts the optional BB 700M back box where local codes require a rear metal enclosure.
- Remote Management — Integrators can manage, monitor, and control the device remotely with GlobalViewer Enterprise resource management software and the Extron Control app.
Technical Specifications
| Display | |
|---|---|
| Screen type | TFT active matrix color LCD, capacitive touchscreen |
| Size | 15.6" (396 mm), measured diagonally |
| Resolution | 1366x768 (WXGA) |
| Pixel density | 100.45 PPI |
| Aspect ratio | 16:9 |
| Color depth | 24-bit, 16.7 million colors |
| Brightness | 340 nits (cd/m²) |
| Contrast | 500:1 |
| Backlight | LED |
| Viewing angle | ±85° horizontal, ±80° vertical |
| Memory | |
| RAM | 2 GB |
| Storage | 8 GB |
| Video Input | |
| Resolution range | 640x480 @ 60 Hz through 1920x1200 @ 60 Hz (includes 480p, 576p, 720p, 1080p, 2K) |
| Quantity/type | 1 HDMI (HDCP compliant), 1 XTP |

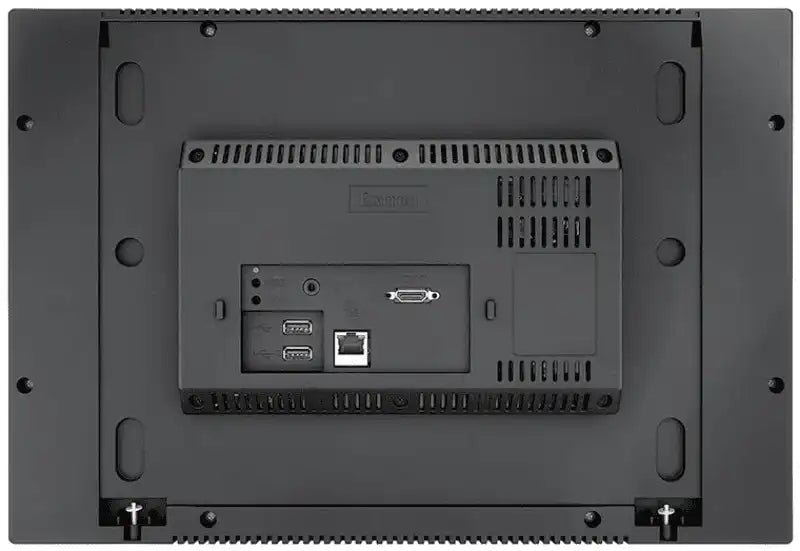

| Connectors | 1 female HDMI type A; 1 female RJ-45 (shared with Ethernet) |
| Standards | DVI 1.0, HDMI 1.4, HDCP 1.4 |
| Ethernet | |
| Connectors | 1 female RJ-45 (shared with XTP video input) |
| Data rate | 10/100Base-T, half/full duplex with autodetect |
| Protocols | DHCP, DNS, HTTP, HTTPS, ICMP, IEEE 802.1X, SFTP, SSH, TCP/IP, UDP/IP |
| USB | |
| Quantity/type | 2 high-speed USB 2.0 (type A connectors) |
| Audio | |
| Speaker output | 2 stereo, 90 dB max SPL @ 0.1m |
| Frequency response | 400 Hz to 20 kHz, ±5 dB |
| Line level output | 1 stereo unbalanced, 3.5 mm mini jack |
| General | |
| Power supply | Not included |
| Power input | Power over Ethernet (802.3at, class 4) |
| Operating temperature | +32 to +140 °F (0 to +60 °C) |
| Mounting | Wall, lectern, or flat surface with included hardware; optional rack mount kit; optional BB 700M back box |
| Faceplate dimensions | 11.02" H x 16.06" W x 1.13" D (280 x 408 x 29 mm) |
| Enclosure dimensions | 5.59" H x 8.81" W x 1.60" D (142 x 224 x 41 mm) |
| Product weight | 7.00 lbs (3.18 kg) |
| Regulatory compliance | BIS, CE, C-Tick, FCC Class B, ICES, VCCI, c-UL, UL, RoHS, WEEE |
| Warranty | 3 years parts and labor; display and overlay components covered for 1 year |
Frequently Asked Questions
What control processors is the TLP Pro 1525MG compatible with?
The TLP Pro 1525MG works with any Extron control processor and with the HC 400 Series system, supporting complete interactive control of a broad range of source devices in a commercial AV system.
How is the wall mount touchpanel installed?
The panel mounts on a wall, lectern, or flat surface using the included hardware. Where local building codes require a rear metal enclosure, the optional BB 700M back box can be added. It connects over standard Ethernet using a single CAT 5e/6/7 cable run.
How is the panel powered?
The TLP Pro 1525MG is powered by PoE+ (IEEE 802.3at, class 4) through a network switch or injector, so no bulky local power supply is required at the wall. A power supply is not included with the unit.
How is the user interface programmed?
All TouchLink Pro touchpanels are customized with Extron GUI Designer software, combined with Global Configurator Plus, Global Configurator Professional, or ControlScript programming. The panel supports the Extron Control app and GlobalViewer Enterprise for remote management.
What is the warranty?
Extron covers the TLP Pro 1525MG with a 3-year parts and labor warranty; the touchpanel display and overlay components are covered for 1 year. Contact Creation Networks for AV integration support and ordering assistance.
