Extron TLP Pro 1725TG 17" Tabletop TouchLink Pro Touchpanel
Product Description

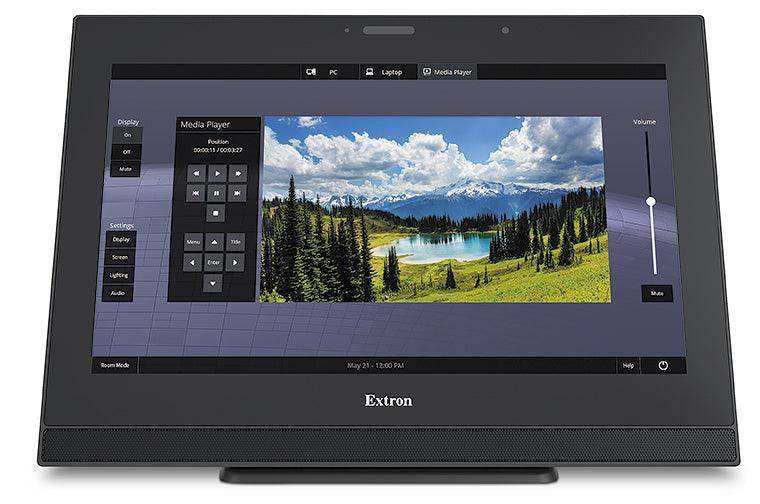

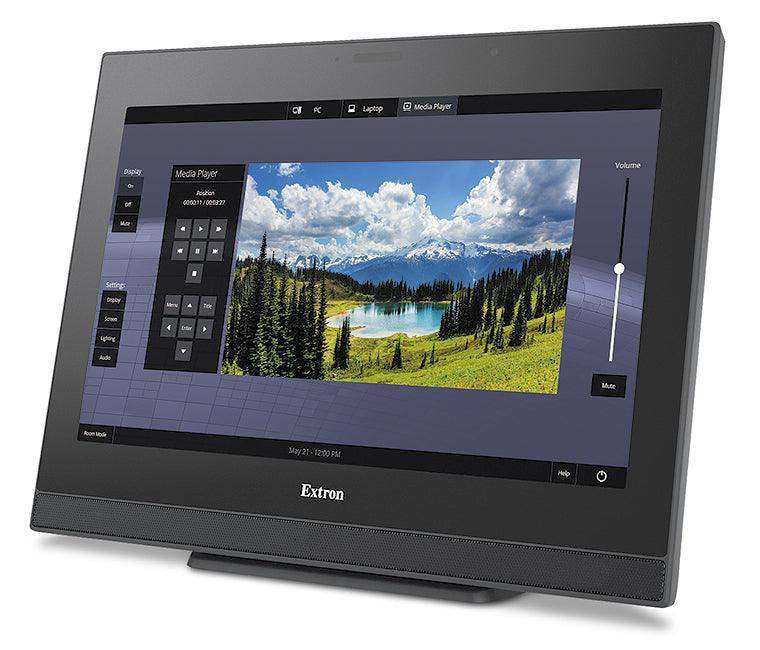

The Extron TLP Pro 1725TG is a 17-inch tabletop TouchLink Pro touchpanel built around a capacitive, edge-to-edge glass touchscreen for commercial AV control systems. With a 1920x1080 (FHD) resolution display and a quad-core processor, it provides a responsive control surface for managing video, audio, lighting, shades, HVAC, and security across conference rooms, boardrooms, classrooms, and command centers. The large 17-inch tabletop touchpanel format gives integrators ample screen real estate for multi-source layouts and full-motion video preview.

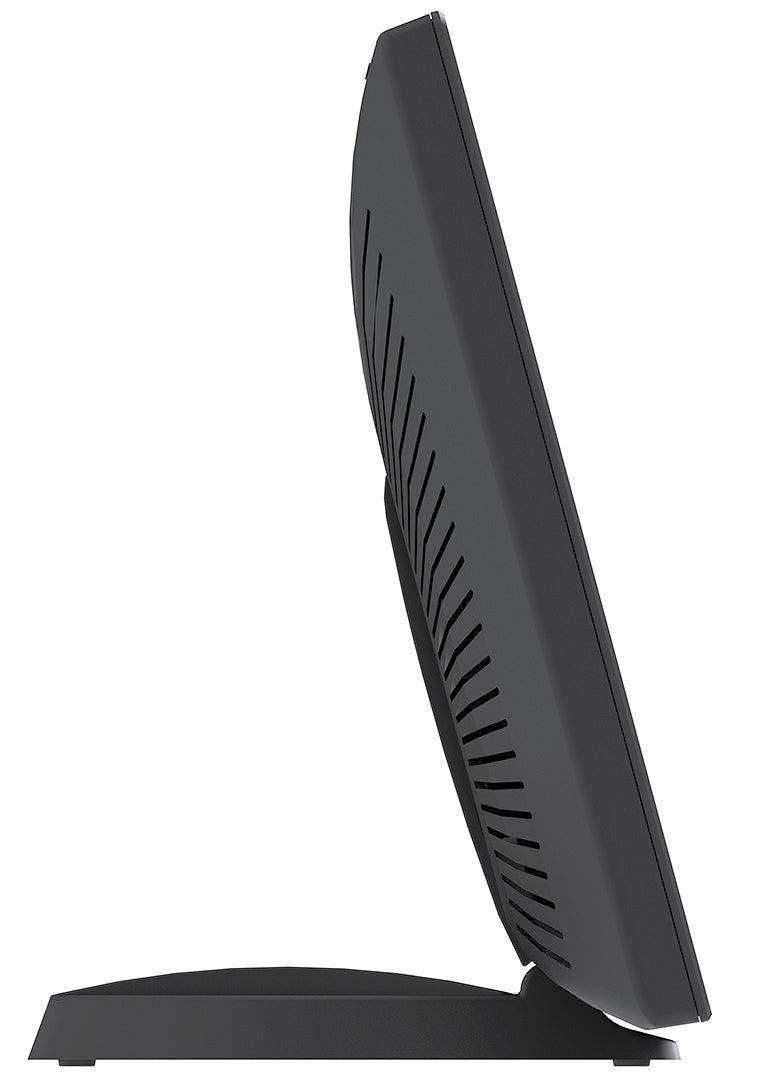

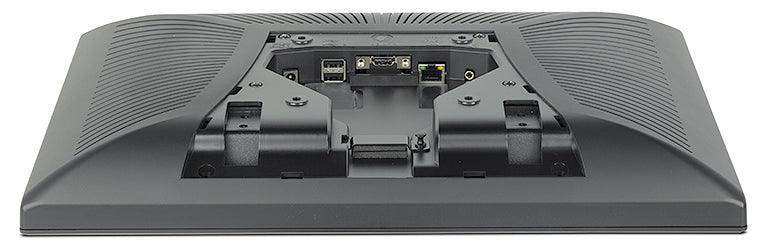

The TLP Pro 1725TG includes video preview inputs that support HDCP-compliant video from HDMI sources and Extron XTP devices, allowing operators to confirm a source before routing it to a display. The weighted base sits securely on any table and tilts through a 40-degree range, while threaded baseplate holes and a VESA FDMI Type D 100 mm pattern support permanent furniture or wall mounting. Built-in stereo speakers, a light sensor, motion detector, and configurable red/green status lights round out a touchpanel designed for daily commercial-grade use.
This touchpanel works with any Extron control processor and HC 400 Series system, operating over standard Ethernet network infrastructure for straightforward, cost-effective AV system integration. All TouchLink Pro touchpanels are customized using Extron GUI Designer software with Global Configurator Plus, Global Configurator Professional, or Global Scripter. Browse the full Extron collection at Creation Networks, or compare this model with the wall-mount Extron TLP Pro 1725MG 17" Wall Mount.
Key Features
- 17" Capacitive FHD Touchscreen — The edge-to-edge glass display renders 1920x1080 resolution with 16.7 million colors for a vibrant, highly responsive control surface.
- Quad-Core Processor — An ultra-fast quad-core processor delivers quick page loads so operators move through control screens without lag.
- HDMI and XTP Video Preview — Full-motion video preview and monitoring let users verify HDCP-compliant HDMI and Extron XTP sources directly on the panel before routing.
- Broad Control Processor Compatibility — The panel works with any Extron control processor and HC 400 Series system for flexible AV control system design.
- PoE++ Powered — The touchpanel draws power directly from a PoE++ (IEEE 802.3bt) switch or injector, eliminating bulky local power supplies, with a power injector included.
- Built-In Stereo Speakers — Integrated speakers provide stereo audio for video preview and audible feedback from button presses.
- Ambient Light and Motion Sensors — A light sensor adjusts screen brightness to room conditions while a motion detector wakes the panel automatically.
- Status Light Indicators — Configurable red and green status lights communicate room availability or call status at a glance.
- Flexible Mounting — The weighted base allows up to 40 degrees of tilt on a tabletop, and the VESA FDMI Type D 100 mm pattern supports secure furniture or wall mounting.
- Remote Management — Integrators can manage, monitor, and control the device remotely with GlobalViewer Enterprise resource management software and the Extron Control app.
Technical Specifications
| Display | |
|---|---|
| Screen type | TFT active matrix color LCD, capacitive touchscreen |
| Size | 17.3" (440 mm), measured diagonally |
| Resolution | 1920x1080 (FHD) |
| Pixel density | 127.34 PPI |
| Aspect ratio | 16:9 |
| Color depth | 24-bit, 16.7 million colors |
| Brightness | 340 nits (cd/m²) |
| Contrast | 600:1 |
| Backlight | LED |
| Viewing angle | ±80° horizontal, +80°/-60° vertical |
| Memory | |
| RAM | 2 GB |
| Storage | 8 GB |
| Video Input | |
| Resolution range | Up to 1080p (HDTV) |
| Quantity/type | 1 HDMI (HDCP compliant), 1 XTP |
| Connectors | 1 female HDMI type A; 1 female RJ-45 (shared with Ethernet) |
| Standards | DVI 1.0, HDMI 1.4, HDCP 1.4 |
| Ethernet | |
| Connectors | 1 female RJ-45 (shared with XTP video input) |
| Data rate | 10/100Base-T, half/full duplex with autodetect |
| Protocols | DHCP, DNS, HTTP, HTTPS, ICMP, IEEE 802.1X, SFTP, SSH, TCP/IP, UDP/IP |
| USB | |
| Quantity/type | 2 high-speed USB 2.0 (type A receptacles) |
| Audio | |
| Speaker output | 2 stereo, 90 dB max SPL @ 0.1m |
| Frequency response | 400 Hz to 20 kHz, ±5 dB |
| Line level output | 1 stereo unbalanced, 3.5 mm mini jack |
| General | |
| Power supply | Extron PI 140 included |
| Power input | 12 VDC or Power over Ethernet (802.3bt, class 5) |
| Operating temperature | +32 to +158 °F (0 to +70 °C) |
| Mounting | Tabletop or optional VESA D 100 mm panel mount kit |
| Tilt adjustment | Tilts through a 40° range |
| Enclosure dimensions | 12.48" H x 17.54" W x 10.47" D (317 x 446 x 266 mm) |
| Product weight | 15.8 lbs (7.17 kg) |
| Regulatory compliance | CE, C-Tick, FCC Class B, ICES, VCCI, c-UL, UL, RoHS, WEEE |
| Warranty | 3 years parts and labor; display and overlay components covered for 1 year |
Frequently Asked Questions
What control processors is the TLP Pro 1725TG compatible with?
The TLP Pro 1725TG works with any Extron control processor and with the HC 400 Series system. It is designed for AV system applications that require complete, interactive control of a broad range of source devices.
How is the touchpanel powered and cabled?
The panel is powered by PoE++ (IEEE 802.3bt) through a network switch or injector, with an Extron PI 140 power injector included, or by 12 VDC. It operates over standard Ethernet infrastructure using a single CAT 5e/6/7 cable run, which simplifies installation.
Can I preview video sources directly on the panel?
Yes. The TLP Pro 1725TG provides full-motion video preview and monitoring from one HDCP-compliant HDMI input and one XTP input, so operators can confirm a source on the touchpanel before routing it to a room display.
How is the user interface programmed?
All TouchLink Pro touchpanels are customized using Extron GUI Designer software, combined with Global Configurator Plus, Global Configurator Professional, or Global Scripter for control logic. The panel also supports the Extron Control app and GlobalViewer Enterprise for remote management.
What is the warranty?
Extron covers the TLP Pro 1725TG with a 3-year parts and labor warranty; the touchpanel display and overlay components are covered for 1 year. Contact Creation Networks for AV integration support and ordering assistance.
