Extron TLP Pro 1230WTG 12” Ultra-wide Tabletop TouchLink Pro Touchpanel
Extron TLP Pro 1230WTG 12” Ultra-wide Tabletop TouchLink Pro Touchpanel - Black is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Looking for a specific Extron product or custom AV solution? Our certified experts can source any Extron device to meet your project requirements. Please contact Creation Networks for a personalized quote or to learn more about our certified Extron design, programming, installation and maintenance services for conference rooms, auditoriums, training centers, and hybrid collaboration spaces. Creation Networks offers direct technical support during the initial Extron implementation and future support of Extron products as needed.
Extron TLP Pro 1230WTG 12” Ultra-wide Tabletop TouchLink Pro Touchp...
Product Description

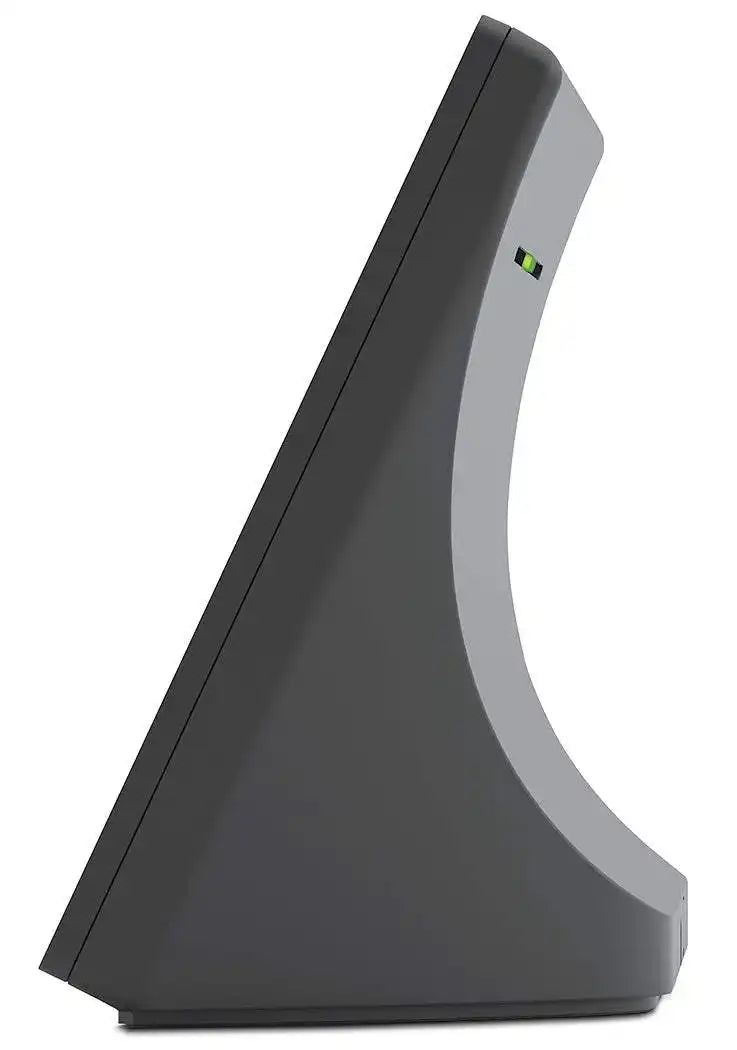

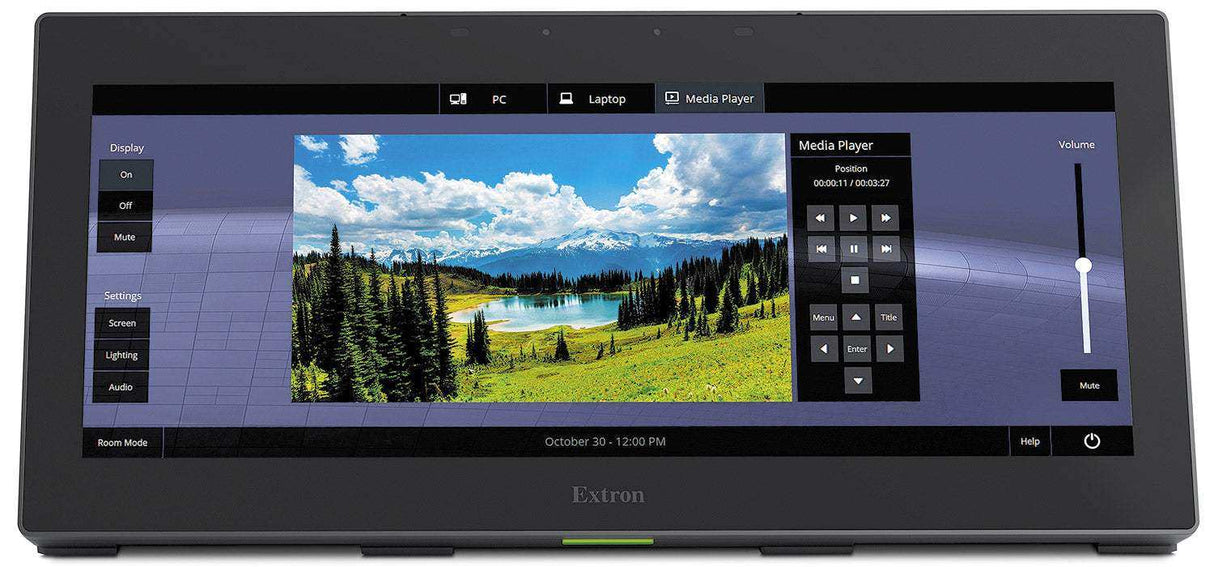

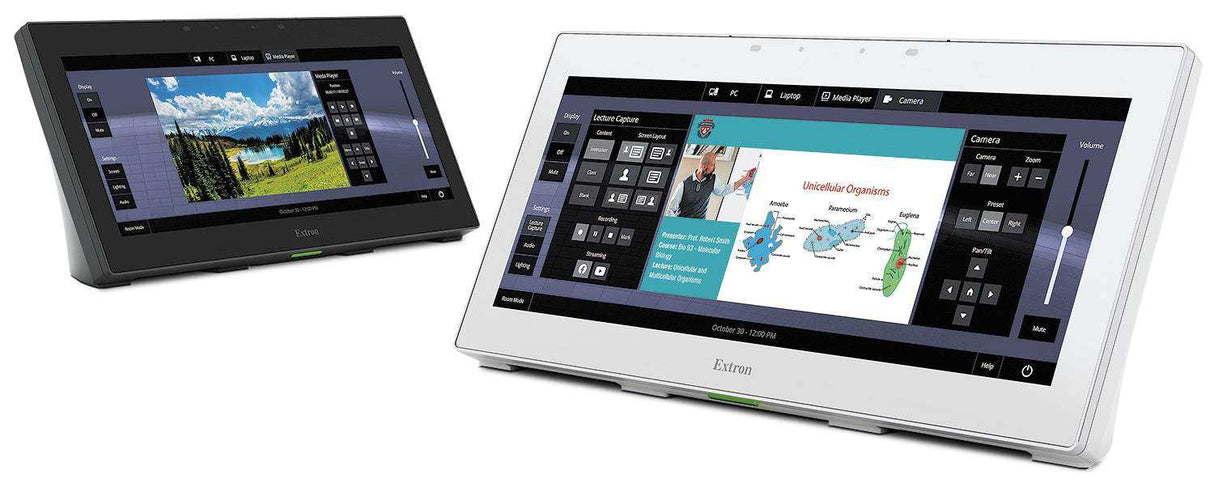

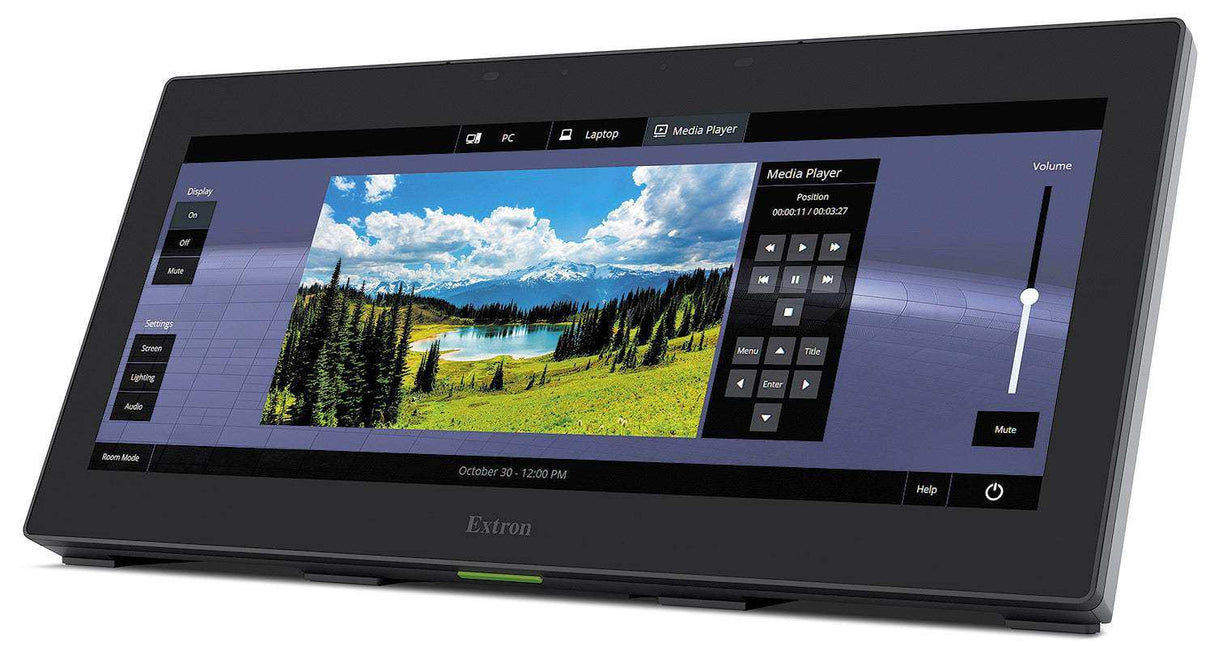

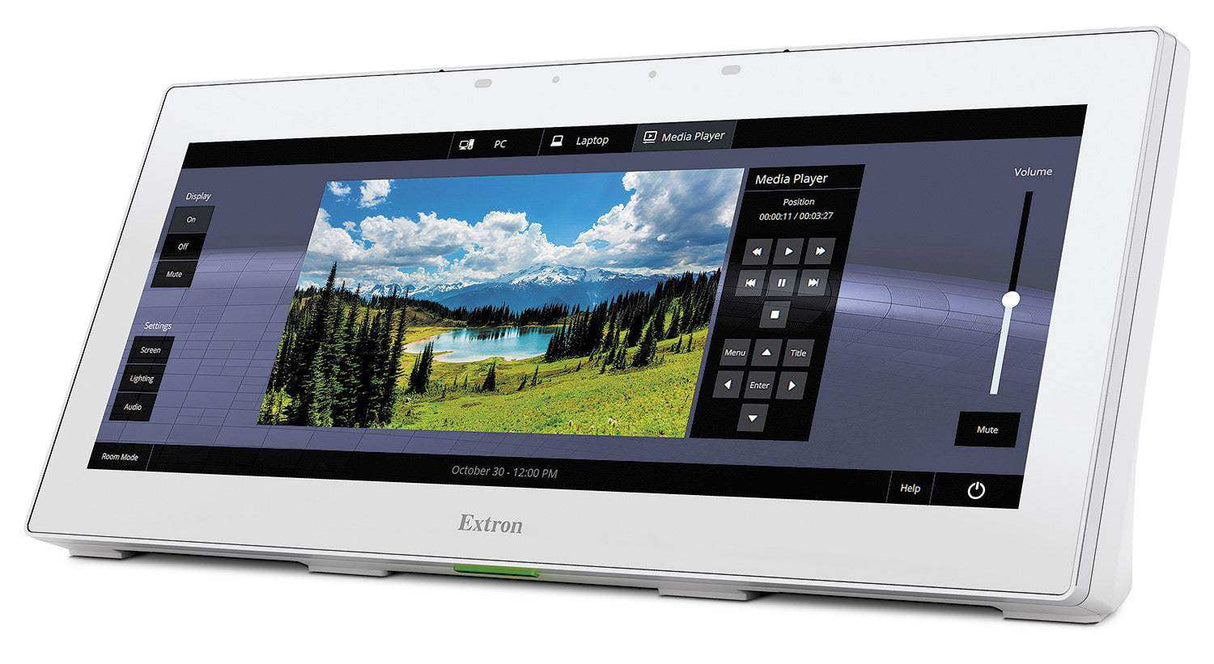

The Extron TLP Pro 1230WTG is a 12-inch ultra-wide tabletop TouchLink Pro touchpanel with a capacitive, edge-to-edge glass touchscreen built for commercial AV control systems. The ultra-wide 1920x720 display lets users see and manage multiple tasks on a single screen, making it well suited to conference rooms, boardrooms, and collaboration spaces where operators control video, audio, lighting, shades, HVAC, and security from one surface. The touchscreen uses scratch- and smudge-resistant Corning Gorilla Glass, and the low-profile design minimizes visual obstructions across the table.
A direct HDMI input provides full-motion video preview on the panel itself, eliminating the need for a separate preview monitor so operators can confirm an HDCP-compliant source before routing it to a room display. An ultra-fast quad-core processor with 2 GB of RAM handles larger, more complex control projects with quick page loads, while built-in stereo speakers, auto-brightness, a motion detector, and configurable red/green status lights support practical daily operation. A system connection status indicator gives integrators immediate visual feedback when the panel loses communication with its control processor.
The TLP Pro 1230WTG works with any Extron control processor and HC 400 Series system and runs over standard Ethernet network infrastructure for cost-effective AV system integration. All TouchLink Pro touchpanels are customized using Extron GUI Designer software with Global Configurator Plus, Global Configurator Professional, or ControlScript programming. Browse the full Extron collection at Creation Networks, or compare it with the larger Extron TLP Pro 1525TG 15" Tabletop and TLP Pro 1725TG 17" Tabletop touchpanels.
Key Features
- 12" Ultra-Wide Touchscreen — The 1920x720 capacitive display with 24-bit color lets operators see and manage multiple tasks on a single ultra-wide control surface.
- Corning Gorilla Glass — The optically bonded Gorilla Glass surface is stronger and more scratch- and smudge-resistant than standard glass while preserving touch sensitivity, color, and brightness.
- PoE+ Powered — The panel is powered directly by a PoE+ (IEEE 802.3at) switch or injector, eliminating the need for a bulky local power supply.
- Quad-Core Processor with 2 GB RAM — Faster processing renders graphics quickly and loads pages without delay, and the 2 GB of RAM supports larger, more complex control projects.
- Direct HDMI Video Preview — Full-motion video preview through a direct HDMI input lets operators confirm a source on the panel without a separate preview monitor.
- Auto Brightness — An ambient light sensor adjusts screen brightness automatically as room lighting changes.

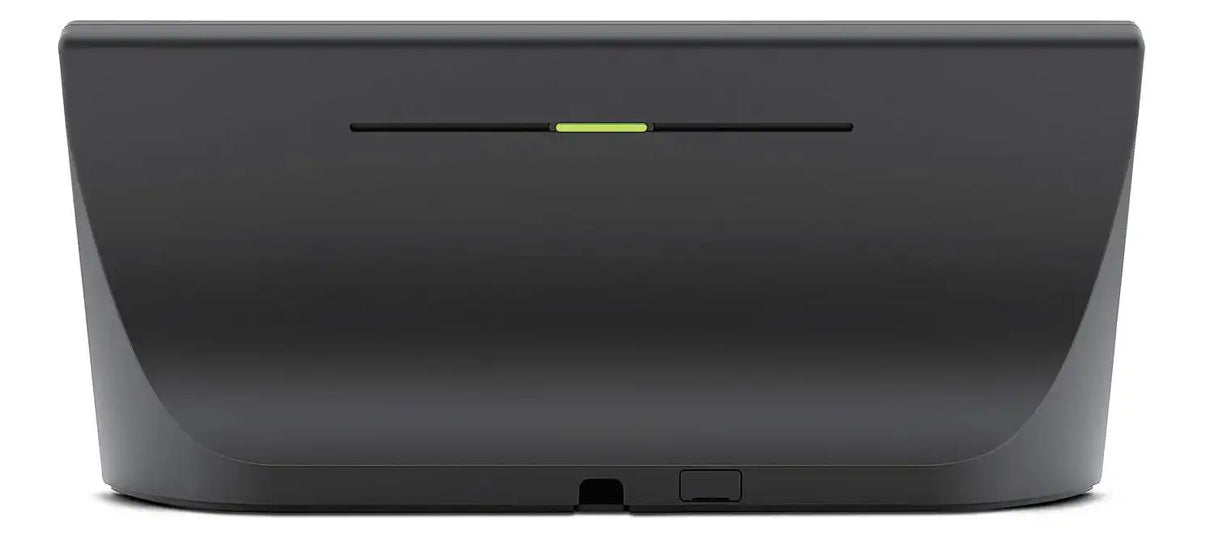

- Status and Connection Indicators — Configurable red and green status lights show room availability, and a system connection indicator flags any loss of communication with the control processor.
- Built-In Stereo Speakers — Integrated speakers provide stereo audio for video preview and audible feedback from button presses.
- Broad Control Processor Compatibility — The panel works with any Extron control processor and HC 400 Series system for flexible AV control system design.
- Optional Swivel Mount — The optional SMA-2 Swivel Mount Adapter secures the panel to the table while providing access to multiple users from a single location.
Technical Specifications
| Display | |
|---|---|
| Screen type | TFT active matrix color LCD, capacitive touchscreen with Corning Gorilla Glass |
| Size | 12.3" (312 mm), measured diagonally |
| Resolution | 1920x720 |
| Pixel density | 166 PPI |
| Aspect ratio | Ultra-wide (8:3) |
| Color depth | 24-bit, 16.7 million colors |
| Brightness | 720 nits (cd/m²) |
| Contrast | 1100:1 |
| Backlight | LED |
| Viewing angle | ±85° horizontal, ±85° vertical |
| Memory | |
| RAM | 2 GB |
| Storage | 8 GB |
| Video Input | |
| Quantity/type | 1 HDMI (HDCP compliant) |
| Connectors | 1 female HDMI type A |
| Resolution range | 640x480 @ 60 Hz through 1920x1200 @ 60 Hz (includes 480p, 576p, 720p, 1080p, 2K) |
| Maximum pixel clock | 165 MHz |
| Standards | DVI 1.0, HDMI 2.0, HDCP 1.4 |
| Ethernet | |
| Connectors | 1 female RJ-45 |
| Data rate | 10/100/1000Base-T, half/full duplex with autodetect |
| Protocols | DHCP, DNS, HTTP, HTTPS, ICMP, IEEE 802.1X, SFTP, SSH, TCP/IP, UDP/IP |
| USB | |
| Quantity/type | 1 high-speed USB 2.0 (type A receptacle) |
| Audio | |
| Speaker output | 2 stereo, 90 dB max SPL @ 0.1m |
| Frequency response | 300 Hz to 20 kHz, ±5 dB |
| General | |
| Power supply | Not included |
| Power input | Power over Ethernet (PoE+ 802.3at) |
| Operating temperature | +32 to +104 °F (0 to +40 °C) |
| Mounting | Set on tabletop; optional SMA-2 Swivel Mount Adapter |
| Enclosure dimensions | 5.8" H x 12.91" W x 3.60" D (147 x 328 x 92 mm) |
| Product weight | 4.50 lbs (2.04 kg) |
| Regulatory compliance | CE, C-Tick, FCC Class B, ICES, VCCI, c-UL, UL, RoHS, WEEE |
| Warranty | 3 years parts and labor; display and overlay components covered for 1 year |
Frequently Asked Questions
What control processors is the TLP Pro 1230WTG compatible with?
The TLP Pro 1230WTG works with any Extron control processor and with the HC 400 Series system, supporting complete interactive control of a broad range of source devices in a commercial AV system.
How is the touchpanel powered?
The panel is powered entirely over PoE+ (IEEE 802.3at) from a network switch or injector. A separate power supply is not included, so the single Ethernet cable carries both data and power for a clean tabletop installation.
Can I preview video sources on the panel?
Yes. A direct HDMI input provides full-motion video preview on the ultra-wide screen, so operators can verify an HDCP-compliant source on the panel without a separate preview monitor. Note that this model has one HDMI input and does not include an XTP input.
How is the user interface programmed?
All TouchLink Pro touchpanels are customized with Extron GUI Designer software, combined with Global Configurator Plus, Global Configurator Professional, or ControlScript programming. The panel can also be managed remotely with GlobalViewer Enterprise resource management software.
What is the warranty?
Extron covers the TLP Pro 1230WTG with a 3-year parts and labor warranty; the touchpanel display and overlay components are covered for 1 year. Contact Creation Networks for AV integration support and ordering assistance.
