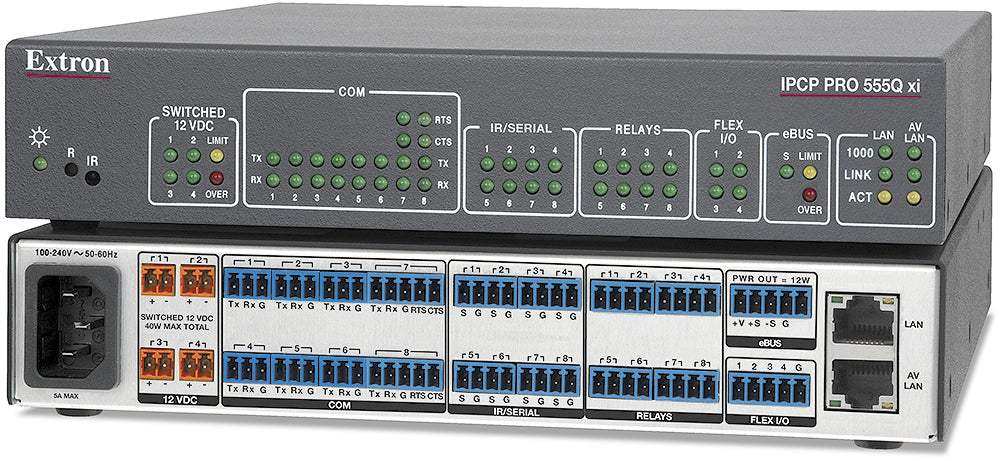

Extron IPCP Pro 555Q xi IPCP Pro xi Quad Core Control Processor

Product Description

The Extron IPCP Pro 555Q xi control processor is a compact, high-performance IP Link Pro control processor built for commercial AV control systems that require an isolated AV network. This Extron quad-core control processor pairs a quad-core CPU with 2 GB of RAM and 8 GB of Flash, delivering four times the memory of standard IP Link Pro multi-network processors for faster project uploads, quicker runtime performance, and more sophisticated programming.

Dual Gigabit Ethernet ports give the IPCP Pro 555Q xi a dedicated, secure AV LAN alongside the corporate LAN. The AV LAN isolates local AV devices from the corporate network, controlling connected equipment while safeguarding it from outside intrusion or interference. An onboard DHCP server for the AV LAN automatically distributes IP addresses and network configuration parameters to connected AV devices, streamlining setup and ongoing management. The LAN port still permits discovery, setup, and firmware updates for Extron devices on the AV LAN, making this Extron IP Link Pro control processor well suited to large meeting spaces, classrooms, command-and-control rooms, and any deployment controlling multiple devices and signal types.

The IPCP Pro 555Q xi is configured with Global Configurator Plus or Global Configurator Professional, or programmed with Extron control system software. For enterprise-wide deployments, GlobalViewer Enterprise provides centralized AV resource monitoring, management, and control across a network. The processor supports Extron LinkLicense to add functionality, and its central deployment feature lets the primary processor automatically push system files to touchpanels, control processors, and button panels as they come online. This rack-mount processor is also available in a TAA Compliant version. For other control options, compare the Extron IPCP Pro 550 xi and the Extron IPCP Pro 360Q xi, or browse the full Extron collection.

Key Features

• Quad-core processor with 2 GB RAM and 8 GB Flash — Delivers four times more memory than standard IP Link Pro processors for faster project uploads, quicker runtime performance, and more sophisticated control programs.
• Dual Gigabit Ethernet with isolated AV LAN — Two 10/100/1000Base-T RJ-45 ports provide a corporate LAN plus a dedicated AV LAN that isolates AV devices from the corporate network for added security.
• DHCP server for the AV LAN — Automatically distributes IP addresses and network configuration parameters to connected AV devices to streamline system setup and management.
• Eight serial ports — Six bidirectional RS-232 ports plus two bidirectional RS-232/RS-422/RS-485 ports on captive screw connectors control a wide range of serial devices.
• Eight IR/serial ports and eight relays — Eight programmable IR/serial ports for one-way device control and eight normally open relays for lighting, screens, and other room functions.
• Four Flex I/O ports and four switched 12 VDC outputs — Configurable analog or digital I/O for room interfacing, plus switched DC power that eliminates the need for local power supplies.
• Secure, standards-based communication — Supports HTTPS, SSH, SFTP, SMTP, NTP, DHCP, DNS, and IEEE 802.1X authentication for port-based network access control, with multi-level password protection.
• Building management system support — Works with BACnet, KNX, and DALI for centralized monitoring and control of HVAC, lighting, power, fire, and security systems.
• Extron LinkLicense support — Adds convenience and expands system functionality across Extron Pro Series control systems.
• Compact 1U half-rack metal enclosure — Rack-mountable with an optional 1U shelf, or furniture-mountable with an optional bracket kit.
• Internal Extron Everlast power supply — Worldwide power compatibility with high reliability and low power consumption, backed by a 7-year parts and labor warranty.

Technical Specifications

Frequently Asked Questions

What devices does the IPCP Pro 555Q xi support?
It supports TouchLink Pro touchpanels, Network Button Panels, eBUS button panels, and IPL EXP expansion interfaces over a standard network infrastructure, plus a wide range of serial, IR, relay, and Ethernet-controlled AV devices.

How is the AV LAN different from the corporate LAN?
The processor has two Gigabit Ethernet ports. The AV LAN is dedicated to controlling local AV devices and isolates them from the corporate network, while still permitting discovery, setup, and firmware updates for Extron devices. A built-in DHCP server on the AV LAN automatically assigns IP addresses to connected devices.

How is the processor configured and programmed?
Use Global Configurator Plus or Global Configurator Professional for configuration, or program with Extron control system software. GlobalViewer Enterprise adds centralized monitoring and management for enterprise-wide deployments.

Can it be rack-mounted?
Yes. The compact 1U half-rack metal enclosure mounts in a rack with an optional 1U rack shelf, or to furniture with an optional bracket kit.

What warranty is included?
The IPCP Pro 555Q xi carries a 3-year parts and labor warranty, and the internal Extron Everlast power supply is covered for 7 years parts and labor.

Is a TAA Compliant version available?
Yes. A TAA Compliant version is available; inform your Creation Networks representative if your order requires compliance with TAA regulations.
