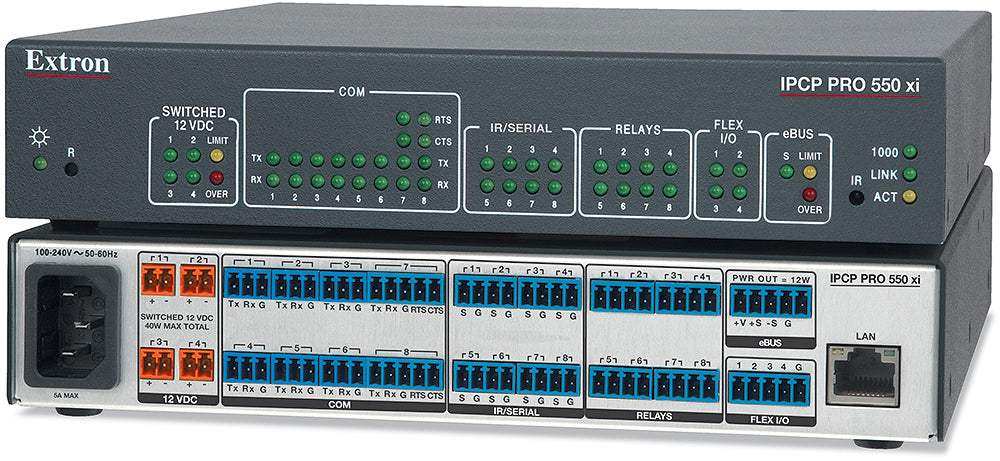

Extron IPCP Pro 550 xi IPCP Pro xi Control Processor

Product Description

The Extron IPCP Pro 550 xi control processor is a versatile, high-performance IP Link Pro control processor designed for centralized AV control in larger applications. This Extron IP Link Pro control processor features an upgraded single-core processor with 1 GB of RAM and 8 GB of Flash — twice the memory of the standard IP Link Pro series — for faster project uploads, quicker runtime performance, and more sophisticated control programs.

Gigabit Ethernet and advanced security standards make the IPCP Pro 550 xi compatible with multiple TouchLink Pro touchpanels, Network Button Panels, and IPL EXP expansion interfaces over a standard network infrastructure. With eight serial ports, eight IR/serial ports, eight relays, four Flex I/O ports, and four switched 12 VDC outputs, this commercial AV control processor is well suited to controlling multiple devices and signal types in conference rooms, lecture halls, auditoriums, and similar spaces.

The IPCP Pro 550 xi is configured with Global Configurator Plus or Global Configurator Professional, or programmed with Extron control system software. GlobalViewer Enterprise adds centralized AV resource monitoring, management, and control across a network, and the processor supports Extron LinkLicense to expand system functionality. A central deployment feature lets the primary processor automatically push system files to touchpanels, processors, and button panels as they come online. This rack-mount processor is also available in a TAA Compliant version. Need a dedicated AV LAN or quad-core performance? Compare the Extron IPCP Pro 555Q xi and the Extron IPCP Pro 360Q xi, or browse the full Extron collection.

Key Features

• Upgraded single-core processor with 1 GB RAM and 8 GB Flash — Provides twice the memory of the standard IP Link Pro series for increased project upload speeds, faster runtime performance, and more sophisticated projects.
• Gigabit Ethernet control — A single 10/100/1000Base-T RJ-45 port supports compatibility with TouchLink Pro touchpanels, Network Button Panels, eBUS devices, and IPL EXP expansion interfaces over standard network infrastructure.
• Eight serial ports — Six bidirectional RS-232 ports plus two bidirectional RS-232/RS-422/RS-485 ports on captive screw connectors control a wide range of serial devices.
• Eight IR/serial ports and eight relays — Eight programmable IR/serial ports for one-way device control and eight normally open relays for lighting, screens, and other room functions.
• Four Flex I/O ports and four switched 12 VDC outputs — Configurable analog or digital I/O for room interfacing, plus switched DC power that eliminates the need for local power supplies.
• Secure, standards-based communication — Supports HTTPS, SSH, SFTP, SMTP, NTP, DHCP, DNS, and IEEE 802.1X authentication for port-based network access control, with multi-level password protection.
• Building management system support — Works with BACnet, KNX, and DALI for centralized monitoring and control of HVAC, lighting, power, fire, and security systems.
• Extron LinkLicense support — Adds convenience and expands the capabilities of Extron Pro Series control systems.
• Compact 1U half-rack metal enclosure — Rack-mountable with an optional 1U shelf, or furniture-mountable with an optional bracket kit.
• Internal Extron Everlast power supply — Worldwide power compatibility with high reliability and low power consumption, backed by a 7-year parts and labor warranty.

Technical Specifications

Frequently Asked Questions

What devices does the IPCP Pro 550 xi support?
It supports TouchLink Pro touchpanels, Network Button Panels, eBUS button panels, and IPL EXP expansion interfaces over standard network infrastructure, along with serial, IR, relay, and Ethernet-controlled AV devices.

How does the 550 xi differ from the 555Q xi?
The 550 xi uses an upgraded single-core processor with 1 GB RAM and a single Gigabit LAN port. The IPCP Pro 555Q xi adds a quad-core processor, 2 GB RAM, and a second Gigabit port for a dedicated, isolated AV LAN.

How is the processor configured and programmed?
Use Global Configurator Plus or Global Configurator Professional for configuration, or program with Extron control system software. GlobalViewer Enterprise adds centralized monitoring and management for enterprise-wide deployments.

Can it be rack-mounted?
Yes. The compact 1U half-rack metal enclosure mounts in a rack with an optional 1U rack shelf, or to furniture with an optional bracket kit.

What warranty is included?
The IPCP Pro 550 xi carries a 3-year parts and labor warranty, and the internal Extron Everlast power supply is covered for 7 years parts and labor.

Is a TAA Compliant version available?
Yes. A TAA Compliant version is available; inform your Creation Networks representative if your order requires compliance with TAA regulations.
