Extron IPCP Pro 360Q xi IPCP Pro xi Control Proc., LL UI Upgrade

Product Description

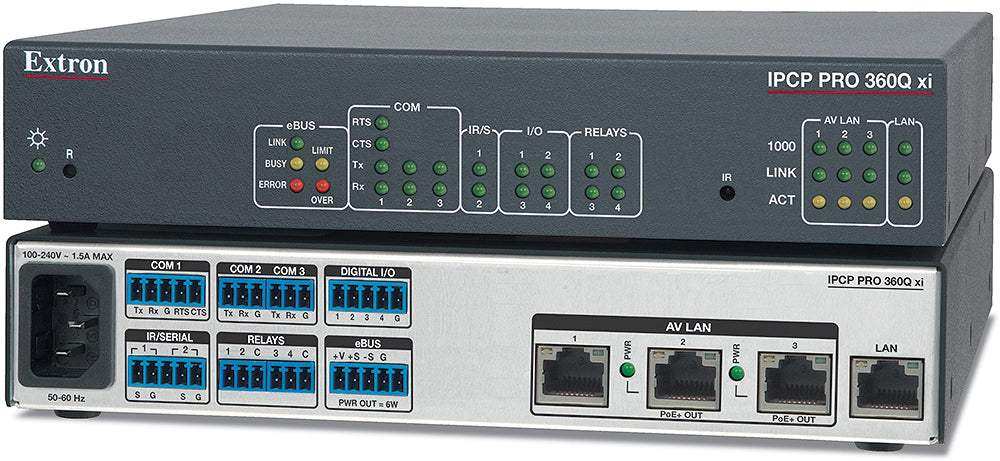

The Extron IPCP Pro 360Q xi control processor is a compact, high-performance IP Link Pro control processor with three dedicated AV LAN ports and one standard Ethernet LAN port. This Extron quad-core control processor pairs a quad-core CPU with 2 GB of RAM and 8 GB of Flash, delivering four times the memory of standard IP Link Pro multi-network processors for faster project uploads, quicker runtime performance, and more sophisticated programming.

An integrated three-port unmanaged AV LAN switch isolates local AV devices from the corporate network, controlling connected equipment while protecting it from outside intrusion or interference. Two of the three AV LAN ports supply PoE+ to external devices such as TouchLink Pro touchpanels and interfaces, eliminating the need for additional power supplies. A DHCP server on the AV LAN automatically distributes IP addresses and network configuration parameters to connected devices, while the LAN port still permits discovery, setup, and firmware updates for Extron devices. This Extron IP Link Pro control processor is well suited to meeting rooms, classrooms, and command-and-control spaces that control multiple devices and signal types over an isolated AV network.

The IPCP Pro 360Q xi is configured with Global Configurator Plus or Global Configurator Professional, or programmed with Extron control system software. GlobalViewer Enterprise adds centralized AV resource monitoring, management, and control across a network, and the processor supports Extron LinkLicense to expand system functionality. This unit is supplied with the LL UI upgrade. This rack-mount processor is also available in a TAA Compliant version. For other control options, compare the Extron IPCP Pro 555Q xi and the Extron IPCP Pro 550 xi, or browse the full Extron collection.

Key Features

• Quad-core processor with 2 GB RAM and 8 GB Flash — Delivers four times more memory than standard IP Link Pro processors for faster project uploads, quicker runtime performance, and more sophisticated control programs.
• Three AV LAN ports with integrated switch — A built-in three-port unmanaged AV LAN switch isolates AV devices from the corporate network for local control and added security.
• PoE+ on two AV LAN ports — Two AV LAN ports provide switched PoE+ power, up to 30 watts per port, to supported devices including TouchLink Pro touchpanels and interfaces.
• DHCP server for the AV LAN — Automatically distributes IP addresses and network configuration parameters to connected AV devices to streamline system setup and management.
• Three serial ports — One bidirectional RS-232/RS-422/RS-485 port plus two bidirectional RS-232 ports on captive screw connectors for serial device control.
• Two IR/serial ports, four digital I/O, and four relays — Two programmable IR/serial ports, four configurable digital I/O ports, and four normally open relays for lighting, screens, and other room functions.
• Secure, standards-based communication — Supports HTTPS, SSH, SFTP, SMTP, NTP, DHCP, DNS, and IEEE 802.1X authentication for port-based network access control, with multi-level password protection.
• Building management system support — Works with BACnet, KNX, and DALI for centralized monitoring and control of HVAC, lighting, power, fire, and security systems.
• Extron LinkLicense and LL UI upgrade — Supplied with the LL UI upgrade and supports Extron LinkLicense to add convenience and expand system functionality.
• Compact 1U half-rack metal enclosure — Rack-mountable with an optional 1U shelf, or furniture-mountable with an optional bracket kit.
• Internal Extron Everlast power supply — Worldwide power compatibility with high reliability and low power consumption, backed by a 7-year parts and labor warranty.

Technical Specifications

Frequently Asked Questions

What devices does the IPCP Pro 360Q xi support?
It supports TouchLink Pro touchpanels, Network Button Panels, eBUS button panels, and IPL EXP expansion interfaces over standard network infrastructure, plus serial, IR, relay, and Ethernet-controlled AV devices.

Which ports provide PoE+?
Two of the three AV LAN ports provide switched PoE+ power, up to 30 watts per port, to supported devices such as TouchLink Pro touchpanels and interfaces, eliminating the need for separate power supplies.

How is the processor configured and programmed?
Use Global Configurator Plus or Global Configurator Professional for configuration, or program with Extron control system software. GlobalViewer Enterprise adds centralized monitoring and management for enterprise-wide deployments.

Can it be rack-mounted?
Yes. The compact 1U half-rack metal enclosure mounts in a rack with an optional 1U rack shelf, or to furniture with an optional bracket kit.

What warranty is included?
The IPCP Pro 360Q xi carries a 3-year parts and labor warranty, and the internal Extron Everlast power supply is covered for 7 years parts and labor.

Is a TAA Compliant version available?
Yes. A TAA Compliant version is available; inform your Creation Networks representative if your order requires compliance with TAA regulations.
