Epson ELPLX01S – Ultra Short-Throw Projector Lens (Black)

Product Overview

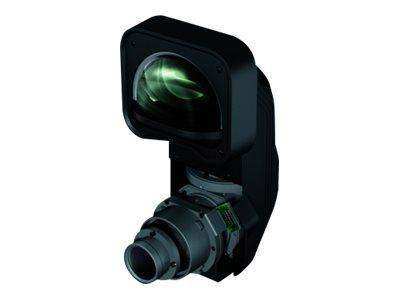

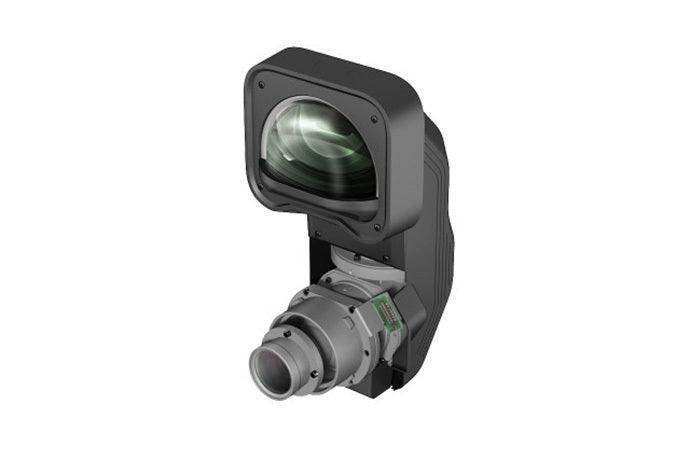

The Epson ELPLX01S ultra short-throw projector lens is a zero-offset 0.35:1 interchangeable lens engineered for Epson Pro Series large-venue projectors rated up to 8,500 lumens. This Epson UST lens projects images from 100" to 300" at extremely short distances, making it the specifying integrator's choice for low-ceiling rooms, rear-projection cabinets, and stealth ceiling installs. With wide lens shift and a unique zero-offset design, the ELPLX01S (V12H004X0A) supports demanding fixed-install and projection-mapping work where conventional throw distances are unavailable. The black housing pairs with black Epson interchangeable-lens projectors.

Product Description

The ELPLX01S delivers a 0.35:1 throw ratio for WUXGA/WXGA content and approximately 0.36:1 for XGA, allowing a projector to sit close to the screen while still filling a large surface. Its zero-offset geometry lets the lens center the image with minimal vertical rise, which is what makes flush ceiling mounting and tight rear-projection enclosures practical. Vertical lens shift runs from +50% to +67% (horizontal center) with horizontal shift of -10% to +10%, giving installers room to align the image without physically repositioning the chassis. The lens carries an integrated mount point for Epson's optional ELPEC01 external camera, enabling automated color calibration, multi-projector screen matching, tiling assist for edge blends, and stacking assist. It is compatible with Epson Pro L Series and PowerLite Pro G7000 Series projectors as well as current EB-PU laser models such as the Epson EB-PU2010B laser projector and the Epson EB-PU1008W. For body-only laser platforms that pair with this lens, see the Epson Pro L20000UNL, and browse the full Epson projector lineup to confirm fitment. The lens ships separately from the projector and is designed for permanent integration in fixed-install environments.

Key Features

• 0.35:1 ultra short throw — A 0.35:1 WUXGA/WXGA throw ratio fills screens up to 300" from a position close to the wall.
• Zero-offset design — The zero-offset optical path centers the image with minimal rise, enabling flush ceiling and rear-projection mounting.
• Wide lens shift — Vertical shift of +50% to +67% and horizontal shift of -10% to +10% support precise image alignment without moving the projector.
• ELPEC01 camera mount point — An integrated mount accepts Epson's optional external camera for auto color calibration, screen matching, tiling assist, and stacking assist.
• Pro Series compatibility — Works with Epson interchangeable-lens Pro projectors rated up to 8,500 lumens, including Pro L and PowerLite Pro G7000 models.
• Large-image capability — Supports a 100" to 300" image range with an F-number of 1.9 and a 5.8 mm focal length.
• Stealth installation — Mounts inside a ceiling with only the lens protruding for a discreet finished install.

Typical Applications

• Rental and staging — Short-distance rigging where trim height and rear space are limited.
• Houses of worship — Large sanctuary images projected from a close, unobtrusive position.
• Auditoriums and lecture halls — Full-width screens in rooms without a long projection run.
• Projection mapping — Close-throw coverage of architectural surfaces and set pieces.
• Rear-projection cabinets — Compact enclosures and stealth ceiling installs in corporate and museum spaces.

Technical Specifications

Specifications sourced from Epson's official documentation.

FAQ

Which Epson projectors does the ELPLX01S fit?
It fits Epson interchangeable-lens Pro Series projectors rated up to 8,500 lumens, including Pro L Series, PowerLite Pro G7000 Series, and current EB-PU laser models. Confirm your exact model against Epson's compatibility list before ordering.

How close can the projector sit to the screen?
With a 0.35:1 throw ratio the projector sits very close to the surface. As a guide, roughly every foot of throw distance yields about a 2.9-foot-wide image, so a 200" image needs only a short standoff from the wall.

What does zero offset mean for my install?
Zero offset means the projected image rises minimally above the lens centerline, which is what allows flush ceiling mounting and tight rear-projection cabinets without a large vertical gap.

Is the lens shift powered?
This is a fixed ultra short-throw lens; it provides wide manual lens shift for alignment but does not zoom. Use the projector's lens shift controls to position the image within the published range.

Can I use it for stealth ceiling installations?
Yes. The lens can be recessed into a ceiling with only the front element protruding, supporting discreet installs in corporate, retail, and museum environments.

What is the black version versus the white version?
The ELPLX01S is the black-housing lens to match black Epson projectors; the ELPLX01WS (V12H004Y0A) is the white-housing equivalent. The optics are the same.

Is the projector included?
No. The lens is sold separately from the projector body.
