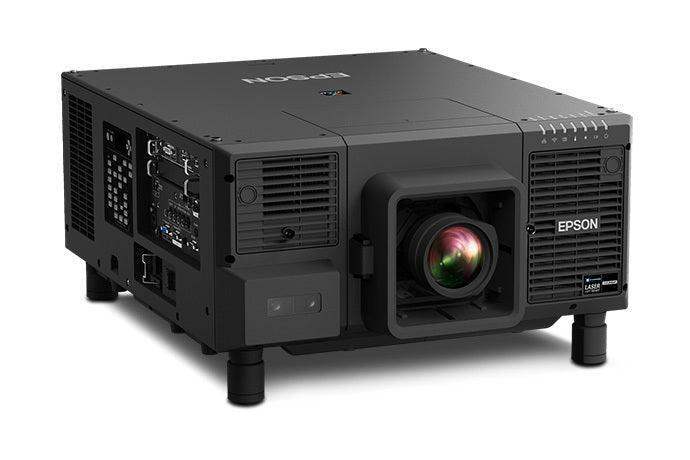

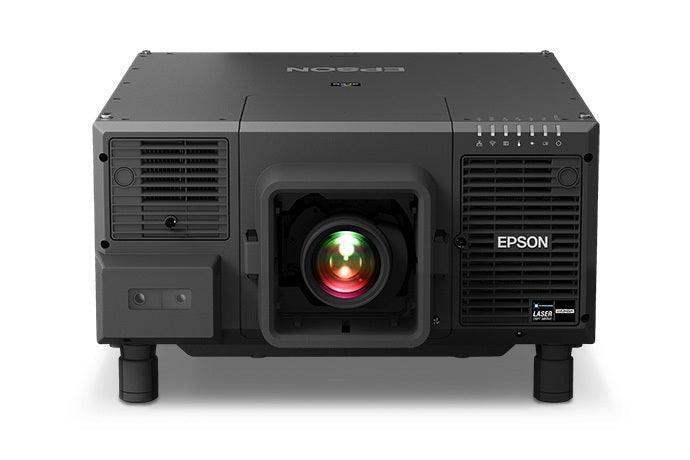

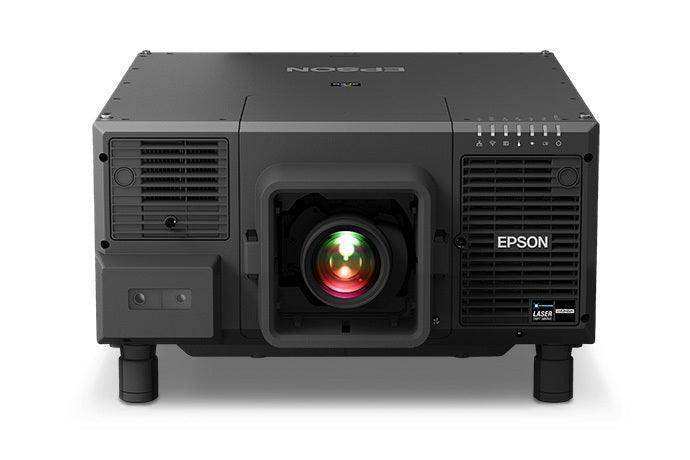

Epson Pro L20000UNL – 20,000-Lumen WUXGA Laser Projector

Product Overview

The Epson Pro L20000UNL is a large-venue laser projector delivering 20,000 lumens of color and white brightness for rental and staging, auditoriums, arenas, and projection mapping. As a 3-chip 3LCD interchangeable lens laser projector with native WUXGA resolution and 4K Enhancement, it ships without a lens so integrators can specify the optics each venue requires. A 20,000-hour laser light source and electrostatic air filter support virtually maintenance-free commercial deployment.

Product Description

The Pro L20000UNL combines a laser light source with 3-chip, 3LCD technology to drive large screens in bright environments. The no-lens, black-finish chassis lets AV system designers match throw distance with optional lenses, including a zero-offset ultra-short-throw lens, using powered zoom, focus, and lens shift (vertical ±60%, horizontal ±18%) for precise rigging in rental, staging, and fixed installations. Multiple inputs and networked control make it straightforward to integrate into managed AV systems.

The laser light engine and electrostatic air filter provide virtually maintenance-free operation up to 20,000 hours in Normal mode and up to 43,000 hours in Extended mode, while a 2,500,000:1 dynamic contrast ratio and native WUXGA with 4K Enhancement Technology hold detailed, calibrated images on large surfaces. Connectivity spans HDMI, HDBaseT, DVI-D, SDI, and DisplayPort for flexible signal distribution. With a noise level as low as 38 dB in Quiet mode, it suits auditoriums and broadcast environments.

Step up to the 30,000-lumen Pro L30000UNL, pair with an ELPLX03 ultra-short-throw lens, and browse the full Epson projector lineup.

Note: lens and mount accessories sold separately; this projector ships without a lens.

Key Features

• 20,000 lumens color and white brightness — Drives large screens and projection-mapping surfaces in bright environments.
• Native WUXGA with 4K Enhancement — 3-chip 3LCD panels with pixel-shifting render high-detail data and full-motion video.
• Long-life laser light source — Up to 20,000 hours (Normal) and 43,000 hours (Extended) with electrostatic filter for virtually maintenance-free operation.
• No-lens design with powered lens shift — Vertical ±60% and horizontal ±18% shift with optional powered lenses for precise placement.
• Comprehensive connectivity — HDMI, HDBaseT, DVI-D, SDI, and DisplayPort for flexible AV system integration.
• Quiet operation — As low as 38 dB in Quiet mode for auditoriums and broadcast use.

Typical Applications

• Rental and staging / live events
• Auditoriums and arenas
• Projection mapping and themed entertainment
• Houses of worship
• Broadcast studios and large stage backdrops

Technical Specifications

Specifications sourced from Epson's official EB-L20000U series specification sheet.

Frequently Asked Questions

Does the Pro L20000UNL include a lens?
No. It ships without a lens so you can select an optional powered lens, including a zero-offset ultra-short-throw option, to match your throw distance.

What signal inputs does it support?
HDMI, HDBaseT, DVI-D, SDI, and DisplayPort, with networked control for integration into managed AV systems.

How much does it weigh and how is it mounted?
Approximately 50.3 kg without a lens; it is rigged with a compatible Epson rigging frame (sold separately) and supports flexible installation orientations.

Is it quiet enough for auditoriums?
Yes. Noise is as low as 38 dB in Quiet mode, suitable for auditoriums, houses of worship, and broadcast environments.

How long does the laser light source last?
Up to 20,000 hours in Normal/Quiet mode and up to 43,000 hours in Extended mode, with an electrostatic filter for virtually maintenance-free operation.

Is it covered by a warranty?
Yes. It is backed by Epson's commercial limited warranty; contact us for current coverage and extended service options.
