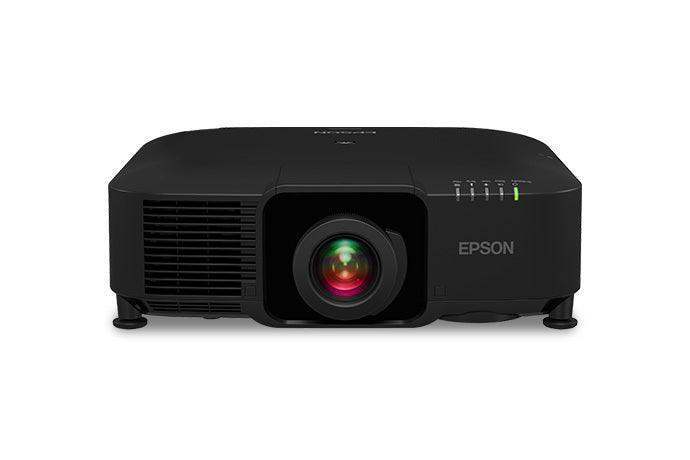

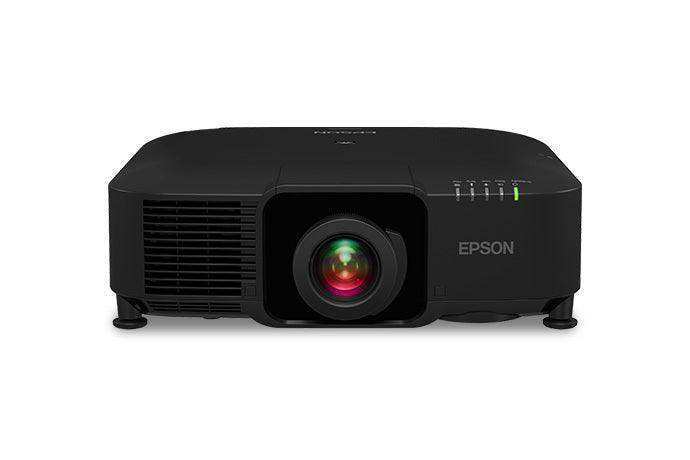

Epson EB-PU2010B – 10,000-Lumen WUXGA Laser Projector

Product Overview

The Epson EB-PU2010B is a large-venue laser projector built for auditoriums, houses of worship, and command centers that need 10,000 lumens of color and white brightness in a compact, ceiling-mountable chassis. As a 3-chip 3LCD interchangeable lens laser projector with native WUXGA resolution and 4K Enhancement, it pairs nine optional powered lenses with a 20,000-hour, virtually maintenance-free laser light source. Built-in SDI in/out, HDBaseT, and NFC streamline rack integration and multi-projector commissioning for commercial deployment.

Product Description

This commercial-grade laser projector is engineered for permanent installation in large rooms where uptime and image scale matter. Powered zoom, focus, and lens shift (vertical ±60%, horizontal ±18%) allow precise on-axis or off-axis placement without re-rigging, and the optional zero-offset ultra-short-throw lens supports tight projection-mapping work. A clip-on PixAlign camera enables auto color calibration, screen matching, edge blending, tiling assist, and stacking assist — the toolset AV system designers rely on for multi-projector blends in auditoriums and broadcast studios.

With a sealed optical engine, a 449–461 nm laser light source rated up to 20,000 hours (30,000 hours in Extended mode), and a 2,500,000:1 dynamic contrast ratio, the EB-PU2010B holds calibrated output across long duty cycles. Connectivity spans HDMI, DVI-D, 3G-SDI in/out, and an HDBaseT port for single-cable signal and control runs back to the rack, plus RJ45 LAN and USB-A. The chassis supports 360° and portrait installation for digital signage, stage, and ceiling-mount applications. Native WUXGA with 4K Enhancement Technology renders crisp data and full-motion video at scale, making this a versatile commercial laser projector with lens shift for integrators standardizing on the Epson Pro platform.

Compare with the white-finish Epson EB-PU2010W or the 8,500-lumen EB-PU1008B, add the PixAlign ELPEC01 camera for automated alignment, and browse the full Epson projector lineup.

Note: lens, camera, mount, and air filter accessories sold separately.

Key Features

• 10,000 lumens color and white brightness — Maintains a bright, balanced image on large screens even in rooms with ambient light.
• Native WUXGA with 4K Enhancement — 1920 × 1200 3LCD panels with pixel-shifting deliver high-detail data and video.
• 20,000-hour laser light source — A sealed laser engine reduces lamp swaps and service trips across long install lifecycles.
• Nine optional powered lenses — Powered zoom, focus, and lens shift cover ultra-short-throw to long-throw without re-mounting.
• Multi-projector toolset — Edge blending, stacking, tiling, and screen matching support seamless blends across multiple units.
• SDI, HDBaseT, and NFC — 3G-SDI in/out and HDBaseT simplify long cable runs; built-in NFC speeds fleet commissioning.

Typical Applications

• Auditoriums and large lecture halls
• Houses of worship
• Broadcast studios and stage backdrops
• Command, control, and government briefing spaces
• All-hands rooms and large commercial meeting spaces

Technical Specifications

Specifications sourced from Epson's official EB-PU2010 series specification sheet.

Frequently Asked Questions

Does the EB-PU2010B include a lens?
No. It uses interchangeable powered lenses; the ELPLM15 is the standard lens for this model and is ordered separately to match your throw distance.

Can it be ceiling-mounted or installed at an angle?
Yes. It supports 360° installation, portrait orientation, and tilt for ceiling, floor, and stage rigging with a compatible Epson mount (sold separately).

How do I blend or stack multiple units?
Add the PixAlign ELPEC01 camera to enable automated edge blending, screen matching, tiling assist, and stacking assist across multiple projectors.

What signal and control inputs does it support?
HDMI, DVI-D, 3G-SDI in/out, and HDBaseT for single-cable video and control, plus RJ45 LAN and USB-A. NFC speeds multi-unit commissioning.

How long does the laser light source last?
Up to 20,000 hours in Normal/Quiet mode and up to 30,000 hours in Extended mode, with a sealed engine and minimal maintenance.

Is it suitable for 24/7 or long-duty commercial use?
Yes. The laser light source, sealed optics, and filter design are built for the extended duty cycles typical of large-venue and digital signage installations.
