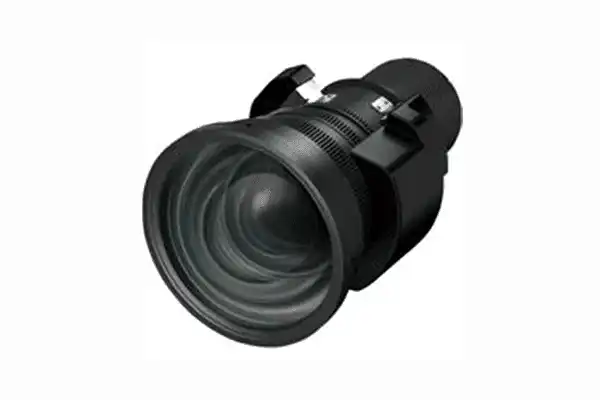

Epson ELPLS04 – Standard Zoom Lens for Pro Z

Product Overview

The Epson ELPLS04 standard zoom projector lens is the interchangeable standard-throw lens for Epson PowerLite Pro Z Series large-venue projectors. With a broad zoom range and screen support from 60" to 500", this Epson standard zoom lens (V12H004U04) covers the most common throw distances in auditoriums, houses of worship, and rental work. It is the baseline optic specifying integrators reach for when a Pro Z projector is mounted at a conventional distance from the screen.

Product Description

The ELPLS04 provides a WUXGA throw ratio of 1.74 to 2.82, a WXGA range of 1.71 to 2.78, and an XGA range of 1.63 to 2.65, paired with a 1.0 to 1.61x zoom for flexible framing. Its focal length runs 36.00 mm to 57.35 mm with an F-number of 1.65 to 2.51, and the published projection distance spans roughly 6 ft 4 in to 100 ft 7 in depending on screen size. That range covers most mid-room mounting positions, which is why a standard zoom is the default lens for fixed installs before an integrator considers wider or longer optics. The lens is interchangeable across the PowerLite Pro Z Series chassis, including Z8000, Z9000, Z10000, and Z11000 family models. For current Epson large-venue laser platforms that use the company's newer lens lineup, review the Epson EB-PU2010B and the body-only Epson Pro L20000UNL, or browse the full Epson projector lineup to confirm fitment. The lens ships separately from the projector.

Key Features

• Standard throw coverage — A WUXGA throw ratio of 1.74 to 2.82 suits conventional mid-room mounting positions.
• Wide zoom range — A 1.0 to 1.61x zoom allows image sizing without moving the projector.
• Broad screen support — Covers screen sizes from 60" to 500" across compatible Pro Z models.
• Multi-resolution throw data — Published throw ratios for XGA (1.63–2.65), WXGA (1.71–2.78), and WUXGA (1.74–2.82).
• Defined optical specs — 36.00 mm to 57.35 mm focal length with an F-number of 1.65 to 2.51.
• Pro Z compatibility — Interchangeable across Epson PowerLite Pro Z Series large-venue projectors.

Typical Applications

• Auditoriums — Standard-distance projection for large fixed screens.
• Houses of worship — Front projection from a conventional mid-room mount.
• Lecture halls — General-purpose imaging in education spaces.
• Rental and staging — A versatile default lens for varied event rooms.
• Corporate large venues — Town-hall and presentation spaces with typical throw distances.

Technical Specifications

Specifications sourced from Epson's official documentation.

FAQ

Which Epson projectors does the ELPLS04 fit?
It fits Epson PowerLite Pro Z Series large-venue projectors, including Z8000, Z9000, Z10000, and Z11000 family models. Confirm your exact model against Epson's compatibility list before ordering.

What screen sizes does it support?
The lens supports screen sizes from 60" to 500" depending on the projector and throw distance.

How far does the projector sit from the screen?
With a WUXGA throw ratio of 1.74 to 2.82, projection distance runs roughly 6 ft 4 in to 100 ft 7 in across the supported screen range. Use Epson's throw distance calculator for an exact figure for your screen.

Is the zoom powered?
The lens provides a 1.0 to 1.61x zoom operated through the projector's lens controls for sizing the image without repositioning the chassis.

Is this the right lens for a standard room?
Yes. As a standard zoom it covers typical mid-room mounting distances; choose a wide or long-throw lens only when the room sits outside this throw range.

Is the projector included?
No. The lens is sold separately from the projector body.
