Epson PixAlign ELPEC01 – External Camera for Large-Venue Projectors

Product Overview

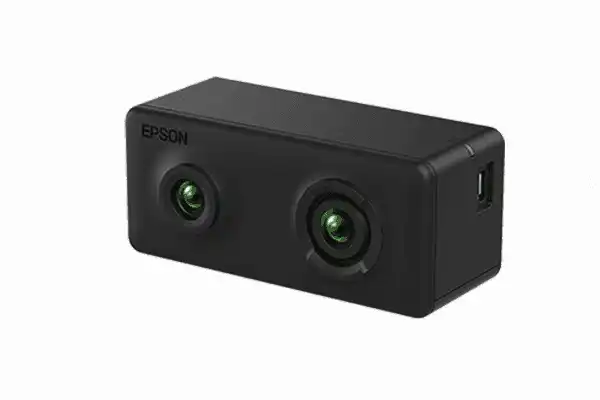

The Epson PixAlign ELPEC01 is an external camera that attaches to the front of select Epson large-venue and Pro Series laser projectors to provide automated installation and calibration tools. By giving the projector machine vision, the ELPEC01 camera speeds up projector color calibration, geometric correction, screen matching, edge blending, and stacking on multi-projector installations. It mounts to projectors that lack a built-in camera, including units fitted with select Epson ultra short-throw lenses. This Epson external camera for laser projectors is a core component of any professional AV calibration workflow involving blended or stacked images.

Product Description

The ELPEC01 attaches without tools and requires no angle-of-view adjustment, so an integrator can add camera-based calibration to an existing rig in minutes. Working with the Epson Projector Professional Tool (EPPT) application on Windows or macOS, the camera unlocks the Blending Assist and Stacking Assist functions used to align multiple projectors into a single image. For simpler jobs, Simple Blending and Simple Stacking let a technician blend or stack two projectors using the remote control instead of a PC and router. Screen matching uses a separate camera on each projector to automatically equalize color accuracy and brightness across an array, removing the manual fine-tuning that edge blending normally demands. The camera also supports image capture for remote monitoring and remote maintenance once a display wall is commissioned. It is built for use with the ELPLX01S, ELPLX01WS, ELPLX02S, and ELPLX02WS ultra short-throw lenses and the Pro Series and EB-PU/EB-PQ large-venue laser projectors. For a compatible host projector, see the Epson EB-PU2010B large-venue laser projector or browse the full Epson projector lineup. The ELPEC01 itself is also listed on its product page. Pairing one camera per projector is required for screen matching across a blended wall.

Key Features

• Automated calibration tools — The camera speeds up and simplifies projector color calibration, geometric correction, and remote monitoring on supported large-venue projectors.
• Blending and stacking assist — Access to the Blending Assist and Stacking Assist functions through the Epson Projector Professional Tool aligns multiple projectors into one image.
• Simple Blending and Simple Stacking — Two projectors can be blended or stacked using only the remote control, without a PC or router.
• Automatic screen matching — Using one camera per projector, the system equalizes color and brightness across an array without manual fine-tuning.
• Tool-free installation — The camera attaches to the front of the projector or UST lens with no tools and no angle-of-view adjustment.
• Remote monitoring — Image capture supports remote monitoring and maintenance of commissioned displays.

Typical Applications

• Multi-projector edge-blended displays in auditoriums and houses of worship
• Stacked-projector installations requiring high brightness and redundancy
• Museum, themed-entertainment, and projection-mapping environments
• Large-venue rental and staging where fast setup and teardown matter
• Permanent installs needing remote monitoring of a projector array

Technical Specifications

Specifications sourced from Epson's official documentation.

Frequently Asked Questions

Which projectors work with the ELPEC01 camera?
It is built for select Epson Pro Series and EB-PU/EB-PQ large-venue laser projectors that do not have a built-in camera, including units fitted with ELPLX01S, ELPLX01WS, ELPLX02S, or ELPLX02WS ultra short-throw lenses.

Do I need software to use the camera?
The advanced Blending Assist and Stacking Assist functions run in the Epson Projector Professional Tool on Windows or macOS. Simple Blending and Simple Stacking can be performed from the projector remote without a PC.

How many cameras do I need for an edge-blended wall?
Screen matching across multiple projectors uses one camera per projector, so plan one ELPEC01 for each unit in the array.

Is installation difficult?
No. The camera attaches to the front of the projector or UST lens without tools and requires no angle-of-view adjustment.

Can the camera help after installation?
Yes. It supports image capture for remote monitoring and remote maintenance of a commissioned display.

Does it replace manual calibration entirely?
It automates color and brightness matching and geometric alignment that would otherwise be done by hand, significantly reducing installation labor on multi-projector jobs.
