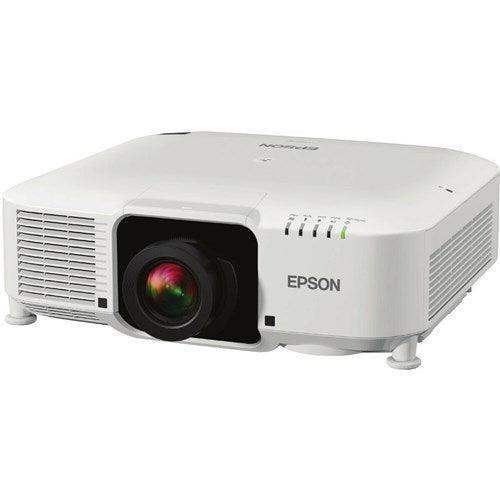

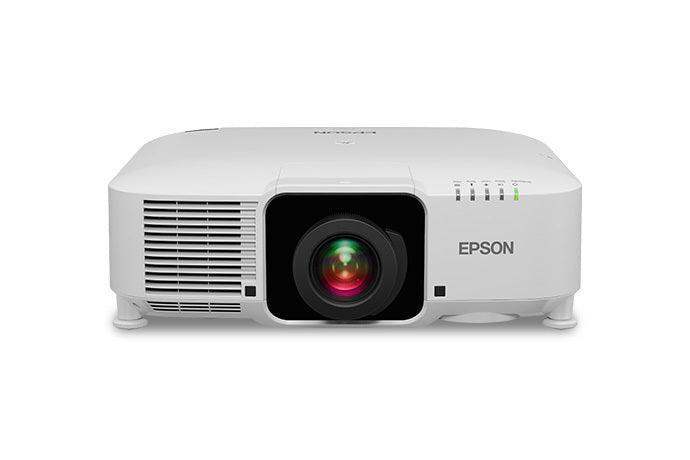

Epson EB-PU2010W – 10,000-Lumen WUXGA Laser Projector

Product Overview

The Epson EB-PU2010W is a 10,000-lumen WUXGA large-venue laser projector for auditoriums, houses of worship, and broadcast environments that need bright, color-accurate images and SDI signal handling. As a compact Pro-series 3LCD laser projector with 4K Enhancement Technology, it delivers equal white and color brightness for saturated, detailed projection on large screens. It accepts a wide range of interchangeable powered lenses, including a 0.35:1 ultra-short-throw option. This page covers the EB-PU2010W large venue laser projector, its 10,000-lumen output, and its SDI video in/out for professional AV integration.

Product Description

The EB-PU2010W is specified into fixed installs and staging work that benefit from a compact body and professional signal connectivity. SDI video in/out, present on the PU2010 models, lets it tie directly into broadcast and live-production infrastructure without external converters. Its 1.0-inch 3LCD panels and laser light source, rated up to 20,000 hours, support sustained brightness with low maintenance. Built-in NFC speeds commissioning, and the optional PixAlign camera enables auto color calibration, screen matching, tiling assist, and stacking assist across multiple units. Powered zoom, focus, and lens shift allow precise alignment from ceiling, floor, or rigged positions, including 360-degree and portrait orientation. The interchangeable lens system covers throw needs from ultra-short-throw to long-zoom. HDBaseT and a full digital input panel make it straightforward to integrate into an existing control and signal-distribution system. For lower-brightness rooms, compare the EB-PU1008W and EB-PU1007W, or browse the full Epson projector lineup. Our team can spec lenses, mounts, and signal management for your venue.

Note: lens, camera, mount, and air filter accessories sold separately.

Key Features

• 10,000 lumens color and white brightness — Equal white and color output from 3-chip 3LCD technology holds color accuracy on large screens.
• WUXGA with 4K Enhancement — Native 1920x1200 resolution with pixel-shifting 4K Enhancement Technology sharpens fine detail.
• SDI video in and out — Built-in SDI ties the projector directly into broadcast and live-production signal chains.
• Laser light source up to 20,000 hours — Long-life laser operation lowers maintenance and total cost of ownership.
• Interchangeable lens system — Compatible powered lenses include a zero-offset 0.35:1 ultra-short-throw option; standard middle-zoom is the ELPLM15.
• Powered optics — Powered zoom (1.0–1.6x), focus, and lens shift (V +/-60%, H +/-18%) speed precise alignment.
• Multi-projector tools — Edge blending, screen matching, tiling assist, and stacking assist via the optional PixAlign camera.
• Flexible installation — 360-degree and portrait orientation suit ceiling, floor, and rigged mounting.

Typical Applications

• Broadcast studios and live-production environments
• Large auditoriums and performing-arts venues
• Houses of worship
• Higher-education lecture halls
• Command, briefing, and government display spaces
• Large commercial meeting and all-hands rooms

Technical Specifications

Specifications sourced from Epson's official specification sheet.

Frequently Asked Questions

Does the EB-PU2010W include a lens?
No. The lens is optional and interchangeable. The standard middle-zoom is the ELPLM15, and a zero-offset 0.35:1 ultra-short-throw option is available. Contact us with your room dimensions for a recommendation.

Does it have SDI connectivity?
Yes. SDI video in and out are built in on the PU2010 models, so it integrates directly with broadcast and live-production signal chains.

Can it be ceiling-mounted or installed at an angle?
Yes. It supports 360-degree and portrait orientation with powered lens shift. A compatible mount is sold separately.

How does it integrate with an existing AV system?
Beyond SDI, it offers HDMI, DVI-D, HDBaseT, LAN, and USB, fitting standard signal-distribution and control backbones.

Can I blend or stack multiple units?
Yes. Screen matching, tiling assist, edge blending, and stacking assist are supported via the optional PixAlign ELPEC01 camera.

What is the laser light source life?
Up to 20,000 hours in Normal/Quiet and up to 30,000 hours in Extended mode. Actual life varies with mode and environment.

Is this suitable for commercial and continuous use?
Yes. The laser light source and air filter design are built for demanding fixed-install and live-event duty cycles.
