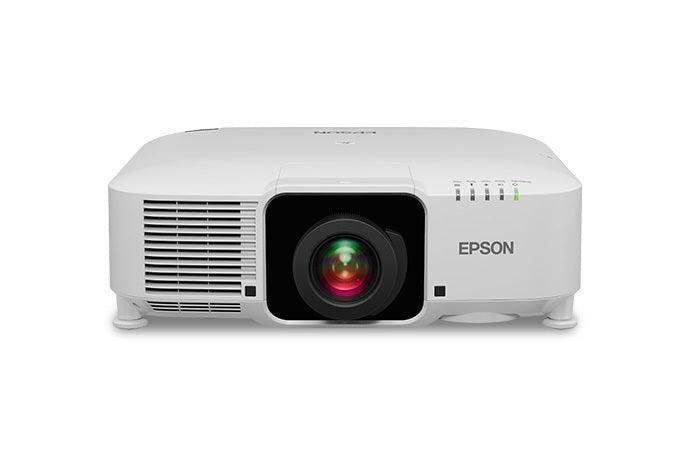

Epson EB-PU1007W – 7,000-Lumen WUXGA Laser Projector

Product Overview

The Epson EB-PU1007W is a compact large-venue laser projector delivering 7,000 lumens of color and white brightness for auditoriums, houses of worship, and large meeting spaces. As a 3-chip 3LCD interchangeable lens laser projector with native WUXGA resolution and 4K Enhancement, it pairs optional powered lenses with a 20,000-hour, virtually maintenance-free laser light source. HDBaseT and built-in NFC streamline rack integration and multi-projector commissioning for permanent commercial deployment.

Product Description

This commercial-grade laser projector is engineered for fixed installation where image scale and uptime matter. Powered zoom, focus, and lens shift (vertical ±67%, horizontal ±30%) allow precise on-axis or off-axis placement without re-rigging, supporting flexible mounting in rooms with challenging geometry. A clip-on PixAlign camera enables auto color calibration, screen matching, edge blending, tiling assist, and stacking assist, giving AV system designers the toolset for multi-projector blends in large venues.

With a sealed optical engine, a 449–461 nm laser light source rated up to 20,000 hours (30,000 hours in Extended mode), and a 2,500,000:1 dynamic contrast ratio, the EB-PU1007W holds calibrated output across long duty cycles. Connectivity spans HDMI, DVI-D, and an HDBaseT port for single-cable signal and control runs back to the rack, plus RJ45 LAN and USB-A. The chassis supports 360° and portrait installation for digital signage, stage, and ceiling-mount applications. Native WUXGA with 4K Enhancement Technology renders crisp data and full-motion video at scale.

Step up to the 8,500-lumen EB-PU1008W or the 10,000-lumen EB-PU2010W, add the PixAlign ELPEC01 camera for automated alignment, and browse the full Epson projector lineup.

Note: lens, camera, mount, and air filter accessories sold separately.

Key Features

• 7,000 lumens color and white brightness — Maintains a bright, balanced image on large screens in rooms with ambient light.
• Native WUXGA with 4K Enhancement — 1920 × 1200 3LCD panels with pixel-shifting deliver high-detail data and video.
• 20,000-hour laser light source — A sealed laser engine reduces lamp swaps and service trips across long install lifecycles.
• Optional powered lenses — Powered zoom, focus, and wide-range lens shift cover throw distances without re-mounting.
• Multi-projector toolset — Edge blending, stacking, tiling, and screen matching support blends across multiple units.
• HDBaseT and NFC — HDBaseT simplifies long cable runs; built-in NFC speeds fleet commissioning.

Typical Applications

• Auditoriums and large lecture halls
• Houses of worship
• Command, control, and government briefing spaces
• All-hands rooms and large commercial meeting spaces
• Multi-purpose rooms and digital signage

Technical Specifications

Specifications sourced from Epson's official EB-PU2010 series specification sheet.

Frequently Asked Questions

Does the EB-PU1007W include a lens?
No. It uses interchangeable powered lenses; the ELPLM08 is the standard lens for this model and is ordered separately to match your throw distance.

Can it be ceiling-mounted or installed at an angle?
Yes. It supports 360° installation, portrait orientation, and tilt for ceiling, floor, and stage rigging with a compatible Epson mount (sold separately).

How do I blend or stack multiple units?
Add the PixAlign ELPEC01 camera to enable automated edge blending, screen matching, tiling assist, and stacking assist across multiple projectors.

What signal and control inputs does it support?
HDMI, DVI-D, and HDBaseT for single-cable video and control, plus RJ45 LAN and USB-A. NFC speeds multi-unit commissioning.

How long does the laser light source last?
Up to 20,000 hours in Normal/Quiet mode and up to 30,000 hours in Extended mode, with a sealed engine and minimal maintenance.

Is it suitable for long-duty commercial use?
Yes. The laser light source, sealed optics, and filter design are built for the extended duty cycles typical of large-venue and digital signage installations, and it is backed by Epson's commercial limited warranty.
