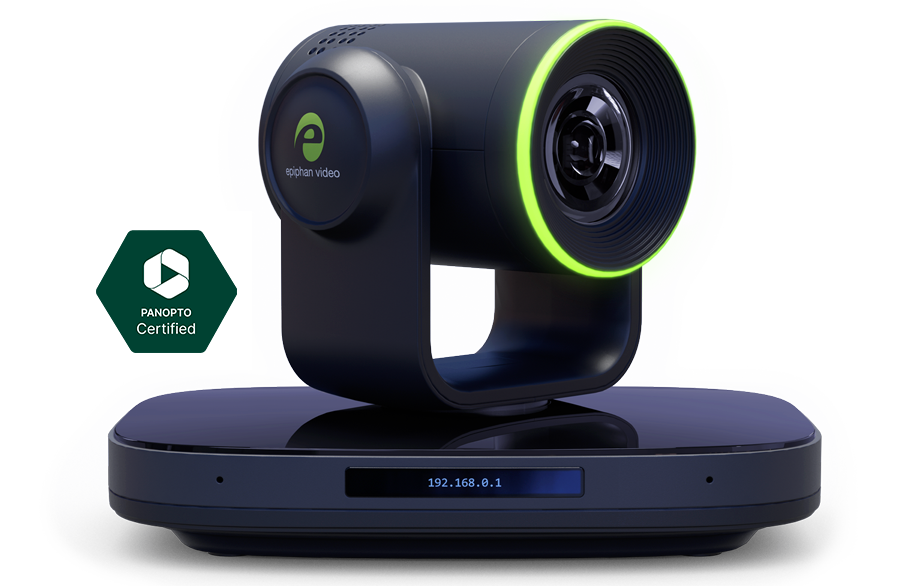

Epiphan EC20 PTZ Camera

Product Overview

The Epiphan EC20 PTZ Camera is a 4K60 NDI PTZ camera engineered specifically for lecture capture, classrooms, and cloud-managed video deployments. As an AI tracking PTZ camera, it combines a next-generation Sony sensor, 20x optical zoom, and on-camera body-shape tracking to keep presenters in frame without an operator. With NDI HX3, Dante, HDMI, SDI, and USB output plus PoE+ power, this lecture capture camera fits broadcast, education, and conferencing workflows. The EC20 is built to integrate directly with the Epiphan Pearl encoder ecosystem and Epiphan Edge cloud management.

Product Description

The EC20 is the first PTZ camera designed from day one for the realities of lecture capture, delivering dependable image quality across early-morning classes and high-stakes live events. A 1/1.8-inch CMOS sensor with 8.42 effective megapixels and a 20x optical zoom lens (f=6.25mm to 125mm) produces detailed 4K video with strong low-light performance down to 0.5 Lux. On-camera AI handles tracking, focus, and exposure in real time, using body-shape detection to follow a presenter as they walk, turn, or re-enter the frame. The camera supports NDI HX3, SRT, RTSP, RTMP(s), ONVIF, and other standard protocols, alongside physical HDMI 2.0, 3G-SDI, and USB 3.0 Type-C outputs to fit virtually any production workflow. A single Ethernet cable can carry power, network, video, and audio, simplifying installation in rooms that previously lacked recording capability. The EC20 is the first camera with native Panopto integration, allowing it to stream, record, and upload directly to Panopto with no PC or additional hardware. Paired with Epiphan Edge, the camera runs as part of a cloud-managed fleet for instant visibility, remote control, and firmware updates across an entire deployment. A programmable RGB LED tally ring provides clear on-air status cues, while PoE+ keeps cabling minimal. Control options include a REST API, VISCA over IP, ONVIF, and a browser interface, with documented compatibility for Q-SYS, Crestron, Stream Deck, Microsoft Teams, Zoom, and Google Meet. Built and supported with the same engineering standards as the wider Epiphan lineup, the EC20 is a strong fit for institutions standardizing on Epiphan Pearl encoders.

Key Features

• 4K60 Sony sensor and 20x optical zoom — The 1/1.8-inch CMOS sensor and precision optics deliver detailed 4K color and reach across large rooms, with low-light sensitivity to 0.5 Lux.
• On-camera AI tracking — Body-shape detection follows the presenter automatically in Presenter and Zone modes, with full, half, close-up, and custom figure sizing for hands-off operation.
• Multi-format output — Simultaneous support for NDI HX3, Dante, HDMI 2.0, 3G-SDI, and USB 3.0 lets the EC20 drop into broadcast, streaming, and conferencing pipelines.
• Single-cable PoE+ installation — One Ethernet cable carries power, network, video, and audio, reducing cabling and simplifying mounting in classrooms and lecture halls.
• Native Panopto recording — The EC20 can stream, record, and upload directly to Panopto with no PC or extra hardware, extending capture to rooms that never had it.
• Cloud fleet management with Epiphan Edge — Monitor status, access controls, and push firmware across every camera from one dashboard to reduce site visits and downtime.
• Broad control and integration — A REST API, VISCA over IP, ONVIF, and a browser interface support Q-SYS, Crestron, Stream Deck, Microsoft Teams, Zoom, and Google Meet.
• Programmable RGB tally ring — A configurable LED ring provides clear visual on-air status cues with customizable colors.

Typical Applications

• Lecture capture and classroom recording in higher education
• Auditoriums and large lecture halls requiring long-reach optics
• Training rooms and corporate learning spaces
• Boardrooms and conference rooms for hybrid meetings
• House of worship video and streaming
• Broadcast studios and live event production
• Government chambers and courtroom recording

Technical Specifications

Frequently Asked Questions

Does the EC20 work with Epiphan Pearl encoders?

Yes. The EC20 is built for the Epiphan ecosystem and integrates with Pearl systems over NDI, HDMI, SDI, or USB. It pairs well with the Pearl Nexus, Pearl Mini, Pearl Nano, and Pearl-2 for lecture capture, studio, and multi-camera production.

How is the EC20 installed and mounted?

The EC20 is an indoor PTZ camera that can be ceiling or wall mounted. A single Ethernet cable supplies PoE+ power along with network, video, and audio, which reduces cabling and simplifies installation in classrooms and lecture halls. A gravity-sensor image flip supports inverted ceiling mounting.

Can the EC20 integrate with Q-SYS, Crestron, Teams, and Zoom?

Yes. The camera exposes a REST API, VISCA over IP, ONVIF, and a browser interface, with documented compatibility for Q-SYS, Crestron, and Stream Deck. It also works with collaboration platforms including Microsoft Teams, Zoom, and Google Meet.

Does the EC20 support direct Panopto recording?

Yes. The EC20 is the first camera with native Panopto integration, letting it stream, record, and upload video directly to Panopto without a connected PC or additional hardware.

What outputs and video formats does the EC20 support?

The EC20 provides simultaneous NDI HX3, HDMI 2.0, 3G-SDI, and USB 3.0 Type-C outputs. It captures up to 4K at 60 fps over HDMI and supports H.265, H.264, and MJPEG encoding for network and USB streams.

How do I manage multiple EC20 cameras across a campus?

When paired with Epiphan Edge, the EC20 runs as part of a cloud-managed fleet. You can monitor status, access camera controls, and push firmware updates across an entire deployment from a single dashboard, reducing on-site visits.

What warranty and support are available?

The EC20 is backed by Epiphan manufacturer warranty and support. For warranty terms, configuration help, or questions on the broader Epiphan product range, contact the Creation Networks team for assistance.
