Eaton 9PXPPDM2G2 – PowerPass 208V to 120V PDU Module

Product Overview

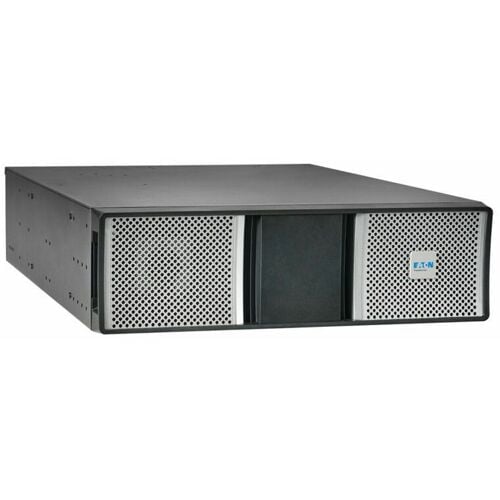

The Eaton 9PXPPDM2G2 is a 208V to 120V power distribution module for UPS systems, designed to convert the high-voltage 208V output of a compatible 9PX G2 UPS into 120V power for standard AV and IT equipment. As a PowerPass distribution module for AV rack use, it sits downstream of the UPS and gives integrators a dedicated, protected 120V distribution point without adding a separate step-down transformer. It functions as a 208V to 120V PDU for commercial UPS installations feeding conference room, training room, and data closet equipment racks that primarily run on 120V circuits.

Product Description

The 9PXPPDM2G2 is a hardwired input, hardwired output rack-mount power distribution module built specifically to pair with Eaton's 9PX G2 UPS systems in the 3kVA to 6kVA range. Rather than running separate transformers or point-of-use converters throughout an AV rack, integrators can install this 3U module directly in the rack to take the UPS's 208V output and step it down to 120V for cameras, control processors, network switches, and other standard AV rack equipment. Resettable 30A circuit breakers protect against overload conditions, and the module includes a maintenance bypass switch so the UPS can be serviced without powering down connected loads — a detail that matters for commercial AV racks that cannot tolerate downtime during routine maintenance. This AV rack power distribution accessory is compatible with Eaton's 9PX5KG2, 9PX6KG2, 9PX6K-L, and 9PX3K3UG2 UPS systems, making it a natural companion for integrators already deploying 9PX G2 UPS hardware in conference rooms, boardrooms, and training rooms that need a mix of 208V and 120V circuits from a single power backup system.

Key Features

• 208V to 120V Voltage Conversion — Converts a compatible 9PX G2 UPS's 208V output into 120V power for standard AV and IT equipment.
• Resettable 30A Circuit Breakers — Protects connected equipment from overload conditions without requiring fuse replacement.
• Maintenance Bypass Switch — Allows the UPS to be serviced without interrupting power to the rack.
• Hardwired Input and Output — Provides a permanent, code-compliant connection point for commercial rack installations.
• 3U Rack/Tower Form Factor — Fits standard 19-inch rack enclosures alongside the compatible UPS.
• Compatible with Multiple 9PX G2 UPS Models — Works with the 9PX5KG2, 9PX6KG2, 9PX6K-L, and 9PX3K3UG2 UPS systems.

Typical Applications

• Boardroom
• Conference room
• Training room
• Government space
• House of worship

Technical Specifications

Frequently Asked Questions

Which UPS systems is the 9PXPPDM2G2 compatible with?

It is compatible with Eaton's 9PX5KG2, 9PX6KG2, 9PX6K-L, and 9PX3K3UG2 UPS systems, including the 6kVA models sold by Creation Networks such as the 9PX6KP1G2 and 9PX6KP2G2.

Does installation require an electrician?

Yes, both the input and output connections are hardwired, so installation should be performed by a licensed electrician per local code.

Can I service the UPS without shutting down the AV rack?

Yes, the module includes a maintenance bypass switch that allows the UPS to be taken offline for service while the module continues distributing power.

What size loads can this module support?

The module is rated for 6kVA/6000W of downstream 120V load, protected by resettable 30A circuit breakers.

Does this module fit in the same rack as the UPS?

Yes, it is a 3U rack/tower unit designed to be installed alongside the compatible 9PX G2 UPS in the same rack enclosure.

What warranty applies to this accessory?

Contact Creation Networks for the complete manufacturer warranty terms on the 9PXPPDM2G2.
