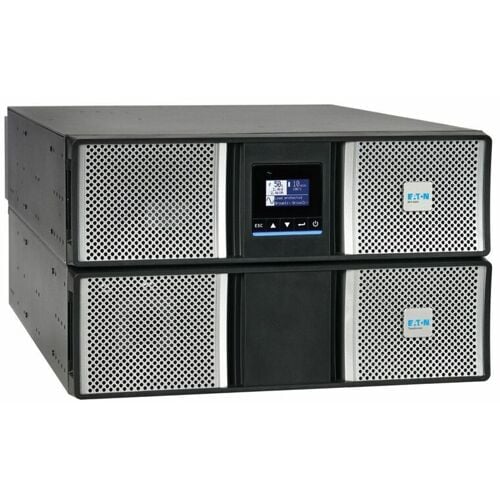

Eaton 9PX6KP1G2 – 6000VA Extended Runtime Online UPS

Product Overview

The Eaton 9PX6KP1G2 is a 6000VA/5400W, 208/120V online double-conversion UPS configured for extended-runtime commercial installations in AV racks and data closets. As a 6000VA extended runtime online UPS, it is built for facilities that need more ride-through time than a standard configuration provides, supporting video conferencing systems, control processors, and network infrastructure through longer outages. This double-conversion UPS for AV rack use is commonly specified as a 6kVA UPS for conference room and training room deployments where continuous operation during an extended outage is a priority.

Product Description

The 9PX6KP1G2 uses the same true online double-conversion architecture as the rest of Eaton's 9PX G2 platform, continuously regenerating output power so AV and IT loads never experience a transfer gap when utility power fails. This model is configured with an L14-30P input connection and (1) L14-30R, (1) L6-30R, and (6) 5-20R hardwired-style outlets, and it is built specifically to support extended runtime through additional external battery modules — a common requirement for facilities that must keep AV racks, security systems, or networking gear alive through a longer power event than a typical UPS ride-through window. Housed in a 6U rack/tower chassis, the unit fits standard 19-inch AV rack enclosures found in conference rooms, boardrooms, and data closets. Hot-swappable, maintenance-free sealed lead-acid batteries simplify service, and compatibility with the Eaton 9PX G2 PowerPass distribution module allows integrators to add a dedicated 208V-to-120V power distribution point downstream of the UPS for AV rack equipment that requires 120V circuits. This rack-mount UPS with extended runtime capability is well suited for commercial spaces where uptime requirements go beyond what a standard-runtime UPS configuration can deliver.

Key Features

• Online Double-Conversion Protection — Provides continuous, regenerated power with no transfer delay during a utility outage.
• Extended Runtime Configuration — Designed for longer ride-through via additional external battery modules beyond standard configurations.
• 6000VA/5400W Capacity — Sized to power a fully populated conference room or training room AV rack.
• L14-30P Input with Mixed Outlets — (1) L14-30R, (1) L6-30R, and (6) 5-20R outlets support a range of commercial AV and IT devices.
• Hot-Swappable, Maintenance-Free Batteries — Sealed lead-acid batteries can be serviced without shutting down the rack.
• 96.5% Online Efficiency, Up to 99% High-Efficiency Mode — Reduces heat generation and operating cost in the equipment rack.
• 6U Rack/Tower Form Factor — Fits standard 19-inch AV rack enclosures.
• Compatible with PowerPass Distribution Module — Adds dedicated 208V-to-120V distribution for downstream AV equipment.
• 3-Year Manufacturer Warranty — Backed by Eaton's standard commercial coverage.

Typical Applications

• Boardroom
• Conference room
• Training room
• House of worship
• Government space
• Commercial meeting space

Technical Specifications

Frequently Asked Questions

What makes this model different from the standard 9PX6K UPS configuration?

The 9PX6KP1G2 is configured for extended-runtime operation with an L14-30P input, intended for facilities that plan to add external battery modules for longer ride-through than a standard configuration.

Does this UPS fit a standard 19-inch AV rack?

Yes, it is a 6U rack/tower unit designed for standard 19-inch rack enclosures.

Can this UPS be paired with a downstream power distribution module?

Yes, it is compatible with the Eaton 9PX G2 PowerPass distribution module, available at creationnetworks.net, for converting 208V input to 120V output for connected equipment.

Does the input connection require a dedicated circuit?

Yes, the L14-30P input requires a matching L14-30R receptacle on a dedicated circuit sized appropriately; consult a licensed electrician for installation.

What warranty is provided?

Eaton backs the 9PX6KP1G2 with a standard 3-year manufacturer warranty; contact Creation Networks for extended coverage options.

Is remote monitoring available for this UPS?

Yes, optional network management cards allow SNMP-based remote monitoring and shutdown coordination alongside other networked AV and IT equipment.

How many external battery modules can be added for extended runtime?

The platform supports up to 12 external battery modules; contact Creation Networks for a runtime calculation based on your specific AV rack load.
