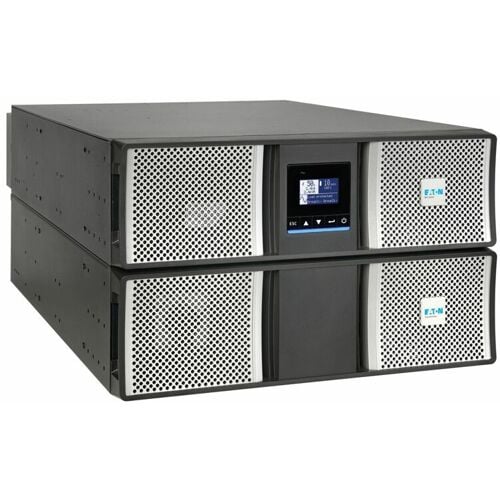

Eaton 9PX6KP2G2 – 6000VA Hardwired Online UPS

Product Overview

The Eaton 9PX6KP2G2 is a 6000VA/6000W, 208/120V online double-conversion UPS with fully hardwired input and output, built for permanent commercial installations in AV racks and data closets. As a 6000VA hardwired online UPS, it is well suited to facilities that require a code-compliant, permanent power connection rather than plug-in outlets, making it a common double-conversion UPS for AV rack deployments in conference rooms, training rooms, and network closets where electrical contractors handle the wiring. This hardwired UPS for conference room use delivers the same true online protection as the rest of the 9PX G2 lineup, at a full 6000W output rating.

Product Description

The 9PX6KP2G2 shares the 9PX G2 platform's true online double-conversion architecture, continuously regenerating output power so connected AV and IT loads never see a transfer gap during a utility outage. Unlike outlet-based configurations in the same family, this model uses fully hardwired input and output connections, which simplifies integration into a building's permanent electrical infrastructure and is often preferred by electrical contractors wiring a dedicated commercial AV rack or data closet circuit. Rated for 6000VA/6000W — a full unity power factor rating compared to some 0.9 PF variants in the same VA class — it is well suited for 6kVA UPS for data closet applications and larger conference room AV racks with a mix of high-draw video processing and networking equipment. The 6U rack/tower chassis fits standard 19-inch enclosures, and hot-swappable, maintenance-free sealed lead-acid batteries simplify long-term service. Because it shares the same footprint and compatibility list as other 9PX G2 6kVA models, it also works with Eaton's PowerPass distribution module for facilities that need a dedicated 120V distribution point downstream of a hardwired 208V UPS.

Key Features

• Fully Hardwired Input and Output — Provides a permanent, code-compliant power connection suited to commercial electrical infrastructure.
• 6000VA/6000W Unity Power Factor Rating — Delivers full-rated wattage output for demanding AV and IT loads.
• Online Double-Conversion Topology — Continuously regenerates output power with zero transfer delay during outages.
• Hot-Swappable, Maintenance-Free Batteries — Sealed lead-acid batteries can be replaced without powering down the rack.
• 96.5% Online Efficiency, Up to 99% High-Efficiency Mode — Reduces heat and operating cost in the equipment rack.
• 6U Rack/Tower Form Factor — Fits standard 19-inch AV rack enclosures.
• Expandable Runtime — Supports up to 12 external battery modules for extended backup time.
• 3-Year Manufacturer Warranty — Backed by Eaton's standard commercial warranty.

Typical Applications

• Boardroom
• Conference room
• Training room
• Government space
• Commercial meeting space

Technical Specifications

Frequently Asked Questions

Why choose the hardwired 9PX6KP2G2 over a plug-connected model?

Fully hardwired input and output simplifies integration into permanent commercial electrical infrastructure and is often preferred for new-construction AV racks and data closets wired by an electrical contractor.

Does this UPS require licensed electrical installation?

Yes, because both input and output are hardwired, a licensed electrician must perform the installation in accordance with local electrical code.

Is the 9PX6KP2G2 compatible with the PowerPass distribution module?

Yes, it is compatible with Eaton's 9PX G2 PowerPass distribution module, available at creationnetworks.net, for downstream 208V-to-120V distribution.

What is the difference between this model's wattage and the similar 9PX6KP1G2?

The 9PX6KP2G2 is rated at a full 6000W (unity power factor) while related 6kVA models in the family are rated at 5400W (0.9 power factor); confirm which rating matches your connected load.

How does this UPS fit into a standard AV rack?

It occupies a 6U rack/tower footprint compatible with standard 19-inch rack enclosures used in conference rooms and data closets.

What warranty is included?

Eaton provides a standard 3-year manufacturer warranty on the 9PX6KP2G2; contact Creation Networks for extended warranty options.

Can remote monitoring be added to this UPS?

Yes, optional network management cards support SNMP monitoring and remote shutdown coordination for facilities managing multiple networked AV racks.
