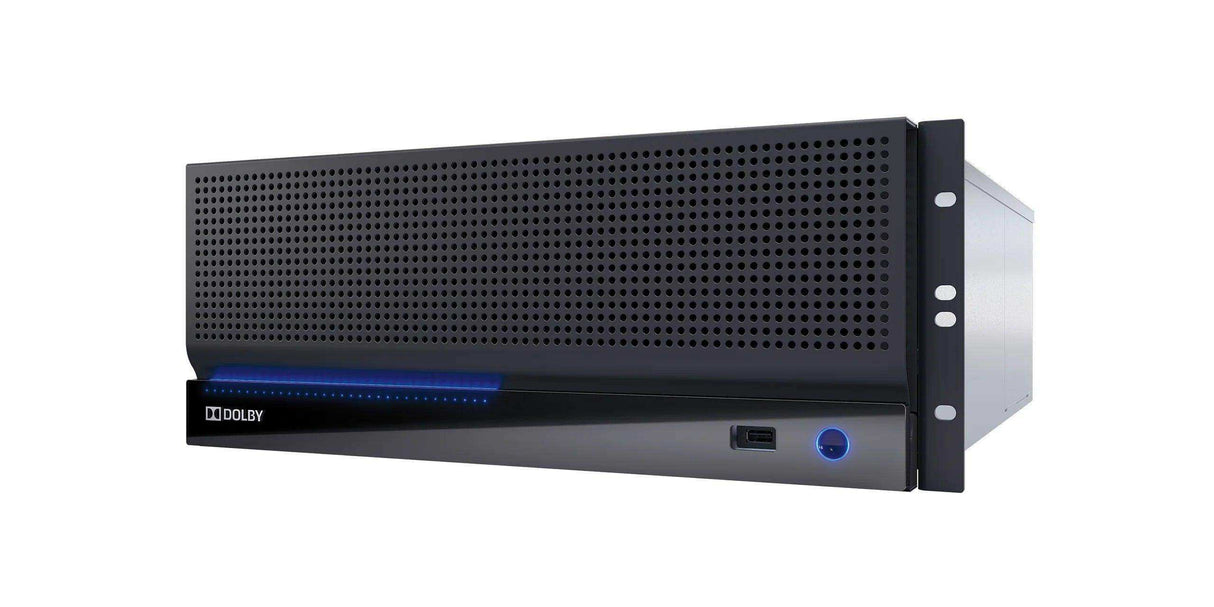

Dolby Professional 24 channel (DMA24302) Multichannel Amplifier

Note: This product is available by quote. Request a quote to discuss configuration and lead time.

Product Overview

The Dolby 24-channel multichannel amplifier (DMA24302) is a high-density cinema multichannel power amplifier for premium large-format auditoriums and multi-screen cinema complexes running 5.1, 7.1, or Dolby Atmos speaker layouts. A single 4U rack-mount cinema amplifier provides 24 channels of amplification, consolidating hardware that would otherwise require numerous discrete stereo amplifiers. This Class D cinema amplifier includes the CAT1416 analog input module for direct integration with existing cinema processors. It is part of the Dolby Professional collection at Creation Networks.

Product Description

The DMA24302 is a 24-channel rack-mount cinema amplifier that uses an advanced high-density Class D design to consolidate amplification into a single 4U chassis. It delivers 600 W per channel at 2 ohm and 4 ohm, 300 W per channel at 8 ohm, and 1,100 W in two-channel bridged mode at 8 ohm and 4 ohm, providing the channel count and headroom needed for larger surround and overhead arrays. The included CAT1416 analog-to-digital converter supplies eight balanced analog audio input channels for direct connection to legacy and current 5.1/7.1 cinema sound processors. Two dedicated Ethernet ports carry digital audio over Dolby Atmos Connect, so the same amplifier supports both conventional and immersive Dolby Atmos installations. A custom-built power supply delivers redundancy, power sharing, operational monitoring, and fault detection, and the unit automatically detects maximum and net power and adjusts channel gains based on power supply, load, and fault conditions. With 24 channels in one chassis, this Dolby Atmos amplifier is well suited to premium large-format auditoriums and screening rooms that need more channels than a 16-channel unit provides without moving to the largest configuration. Web-based control, SNMP monitoring, front-panel status LEDs, and a front-panel USB 2.0 maintenance port support remote management across multi-screen cinema complexes. Step down to the 16-channel DMA16302 for single auditoriums, or up to the 32-channel DMA32301 for the highest channel density. Browse the full range in our commercial amplifiers collection.

Key Features

• High-Density Class D Design — A single 4U unit replaces a stack of conventional stereo amplifiers, reducing the hardware you install, power, and maintain in the amplifier rack.
• 24 Amplified Channels — The DMA24302 provides 24 channels of amplification in one chassis, suiting larger surround and overhead speaker counts in premium auditoriums.
• High Power Output — Each channel delivers 600 W at 2 ohm and 4 ohm and 300 W at 8 ohm, with 1,100 W available in two-channel bridged mode at 8 ohm and 4 ohm for screen and subwoofer channels.
• CAT1416 Analog Input Module — The included analog-to-digital converter supplies eight balanced analog input channels for direct integration with legacy and current 5.1/7.1 cinema processors.
• Dolby Atmos Connect Support — Two dedicated Ethernet ports carry digital audio over Dolby Atmos Connect so the amplifier serves immersive as well as conventional cinema installations.
• Redundant Power Supply — The custom-built power supply includes built-in redundancy, power sharing, operational monitoring, and fault detection to keep large auditoriums running reliably.
• Adaptive Power Management — The unit automatically detects maximum and net power availability and adjusts channel gains based on power supply, load, and fault conditions.
• Web and SNMP Management — A web-based user interface, SNMP monitoring, front-panel status and signal-presence LEDs, and a front-panel USB 2.0 maintenance port allow control from anywhere on the theater network.

Typical Applications

• Premium large-format auditorium
• Movie theater auditorium
• Multi-screen cinema complex
• Screening room
• House of worship with cinema-grade audio
• Broadcast studio

Technical Specifications

Frequently Asked Questions

Which cinema processors is the DMA24302 compatible with?

The DMA24302 includes the CAT1416 module with eight balanced analog input channels for direct integration with 5.1/7.1 cinema processors, and it pairs well with the Dolby CP950 processor. It also accepts digital audio over Dolby Atmos Connect for immersive installations.

How is the amplifier installed in a rack?

The unit is a 4U rack-mount chassis measuring 19 in wide by 7 in high by 22 in deep and weighing 65 lb. Plan for adequate rack support and airflow, and keep the operating environment within the 0 to 40 deg C range.

How does it integrate into an existing AV system?

For analog 5.1/7.1 systems, the CAT1416 analog input module connects directly to the processor's outputs. For immersive audio, two Ethernet ports carry digital audio over Dolby Atmos Connect, supporting both legacy and Dolby Atmos integration paths.

What are the power requirements?

The amplifier operates from 100 to 240 VAC, 50-60 Hz on a 20 A service through an IEC 320-C20 inlet (20 A max). The custom power supply is engineered to run at full load without tripping the AC mains breaker.

Can the amplifier be monitored remotely?

Yes. It provides a web-based user interface and SNMP for monitoring and control from anywhere on the theater network, along with front-panel status and signal-presence LEDs and a front-panel USB 2.0 maintenance port.

What is the warranty and lead time?

The manufacturer warranty applies. This product is available by quote; contact Creation Networks for current warranty terms, support options, and lead time, and see our theater and auditorium AV solutions for design assistance.
