Crestron USB-EXT-3S-LOCAL-1G – USB 3.2 Extender Wall Plate, Local
What is the Crestron USB-EXT-3S-LOCAL-1G wall plate extender?

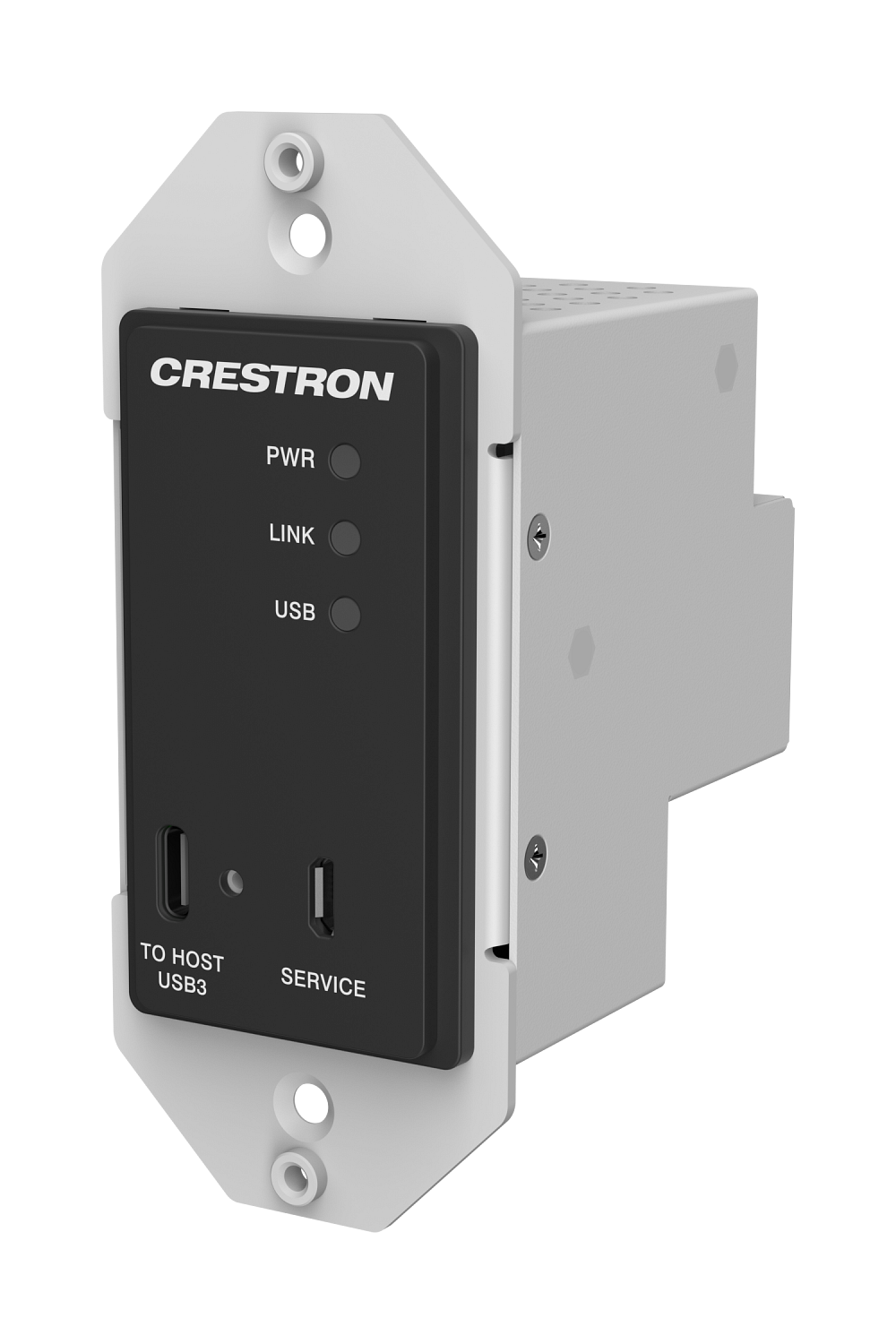

The Crestron USB-EXT-3S-LOCAL-1G is a 1-gang USB 3.2 Gen 1 extender wall plate with a USB Type-C host port, for rooms where the PC connects at the wall or table instead of in a rack. It sends USB up to 330 ft (100 m) over one CAT6a/7 cable at up to 5 Gbps. Pair it with a USB-EXT-3S-REMOTE box or a USB-EXT-3S-REMOTE-1G wall plate.
How does the Crestron USB-EXT-3S-LOCAL-1G work?
The plate mounts in a standard North American 1-gang box and takes the laptop or room PC's USB-C connection at the wall. It sends the USB 3.2 signal over the LINK cable to the remote endpoint, where cameras, soundbars and peripherals connect. No drivers are needed on Windows, macOS, Linux or Chrome OS.
Like the rest of the USB-EXT-3S series it supports isochronous transport for UC cameras and includes an RS-232 pass-through on a 3.5 mm terminal block. White and black front panels ship in the box, and the plate fits FP-G1 decorator faceplates.
Powering it: when paired with a USB-EXT-3S-REMOTE box, either end can take a power pack and feed the other over LINK. When two wall plates are paired (LOCAL-1G to REMOTE-1G), both plates need their own PW-2030DUL flying-lead power pack.
What are the key features of the Crestron USB-EXT-3S-LOCAL-1G?
- 1-gang wall plate — Installs in a standard US electrical box for a clean wall or floor-box connection.
- USB-C host port — Takes a modern laptop or room PC directly.
- USB 3.2 Gen 1 at 5 Gbps — SuperSpeed with USB 2.0 and 1.1 backward compatibility.
- ISO transport support — Protects UC camera video from other USB traffic.
- 330 ft over CAT6a/7 — Reaches the display wall or rack on one cable.
- Two front panels included — White and black panels to match the room finish.
- RS-232 pass-through — Serial control over the same LINK cable.
- TAA compliant — Fits federal and public-sector procurement.
Where is the Crestron USB-EXT-3S-LOCAL-1G typically used?
- Conference room
- Huddle room
- Training room
- Multi-purpose room
- Government space
- Boardroom
Technical Specifications
| Model | USB-EXT-3S-LOCAL-1G |
| Host port | (1) USB Type-C, female, USB 3.2 Gen 1 |
| LINK | (1) RJ-45, connects to a USB-EXT-3S REMOTE endpoint |
| USB speeds | USB 3.2 Gen 1 up to 5 Gbps; USB 2.0 up to 480 Mbps; USB 1.1 up to 12 Mbps |
| LINK | Proprietary point-to-point link; occupies a single USB tier |
| Max distance | 330 ft (100 m) over CAT6a/7 F/FTP or U/FTP; up to 33 ft (10 m) patch cord per end |
| RS-232 | Bidirectional serial pass-through, up to 115.2k baud, 4-pin 3.5 mm terminal block |
| Power input | (1) 2-pin DC, 20VDC; PW-2030DUL required when paired with REMOTE-1G |
| Mounting | North American 1-gang electrical box, 3.5 in. (89 mm) minimum depth |
| Faceplates | White and black front panels included; fits FP-G1 decorator faceplates (sold separately) |
| Construction | Metal housing, detachable plastic front panels |
| Dimensions (H×W×D) | 4.16 × 1.77 × 2.36 in. (106 × 45 × 60 mm) |
| Weight | 6.61 oz (187 g) |
| Compliance | FCC Part 15 Class B, IC Class B, CE, Intertek Listed; TAA compliant |
Frequently Asked Questions
What does the Crestron USB-EXT-3S-LOCAL-1G pair with?
It pairs one-to-one with a USB-EXT-3S-REMOTE or USB-EXT-3S-REMOTE-1G. The two endpoints connect LINK port to LINK port over a single CAT6a/7 cable; the LINK ports cannot be connected to a network switch.
What cable does the USB-EXT-3S series need?
Use CAT6a or CAT7 F/FTP or U/FTP cable, up to 330 ft (100 m) total. Up to 33 ft (10 m) of patch cord can be used at each end; the rest should be solid-core premise cable.
Does it work with Microsoft Teams Rooms and Zoom Rooms cameras?
Yes. The USB-EXT-3S series fully supports USB 3.2 isochronous transport, which reserves bandwidth for UC cameras and capture devices so other USB traffic does not degrade the video. Crestron does not guarantee every USB host or device, so test unusual peripherals before rollout.
Does it need drivers?
No. It is plug-and-play with Windows, macOS, Linux and Chrome OS hosts.
How is it powered?
Only one endpoint in a pair connects to a 20VDC power pack; it powers the other over the LINK cable. When the remote is powered over LINK, USB power to peripherals is limited to 17.5 W (3.5A). Two wall plates paired together each need their own PW-2030DUL.
Is it TAA compliant?
Yes, Crestron lists the USB-EXT-3S series as TAA compliant, which matters for federal and many state and local bids.
