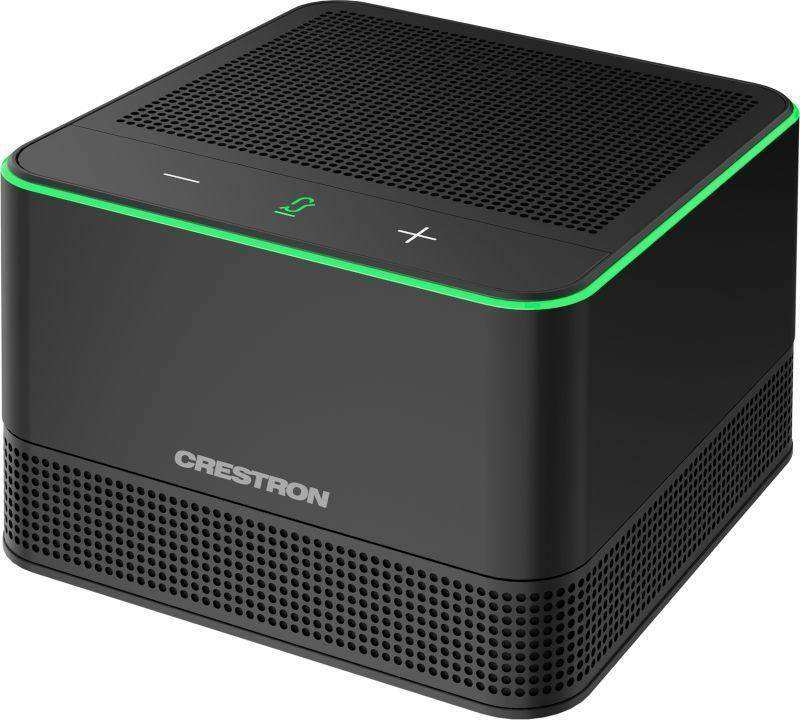

Crestron UC-AUDIO-POD-B-DR1 Crestron Flex Pod Wireless Speaker and Microphone (Black)

Product Overview

The Crestron UC-AUDIO-POD-B-DR1 is a wireless tabletop conferencing pod with an integrated speaker and a 360-degree quad microphone array, built for clear voice pickup in small to large meeting rooms. This Crestron Flex wireless speaker and microphone pod pairs over a dedicated DECT-based wireless link to a Crestron Flex UC-AUDIO-HUB, eliminating tabletop cabling for a clean conference table. Finished in black, it is ideal for huddle rooms, conference rooms, and divisible spaces that need flexible audio coverage. It is a core component of the Crestron Flex distributed audio conferencing platform.

Product Description

The UC-AUDIO-POD-B-DR1 captures room audio with a 360-degree quad mic array offering a 7.5 ft pickup range and reproduces far-end audio through a single full-range 2-inch speaker with an effective output of 74 dB SPL at 1 m. Onboard DSP provides acoustic echo cancellation, automatic gain control, dynamic noise suppression, and speaker volume control, and the device is full-duplex IEEE 1329 Type 1 compliant for natural, two-way conversation. Capacitive backlit controls handle volume and mic mute, while LED indicators clearly show mute and volume status.

The DR1 variant operates in the 1920–1930 MHz band with 5 channels for US and Canada deployment, with a wireless range up to 50 ft indoors to a paired hub. Power is supplied via USB-C from an included 100–240VAC power pack, and a Kensington Security Slot allows the pod to be physically secured to the table. Up to multiple pods can be paired to a single hub to scale microphone coverage across larger rooms, making this a flexible building block for Crestron Flex audio conferencing.

Key Features

• 360-Degree Quad Mic Array — Four microphones provide full-room voice pickup with a 7.5 ft range for even coverage around the table.
• Wireless Hub Pairing — The pod connects wirelessly to a Crestron Flex UC-AUDIO-HUB, removing tabletop cabling and simplifying installation.
• Integrated DSP — Acoustic echo cancellation, automatic gain control, and dynamic noise suppression deliver clear, full-duplex conversation.
• Full-Range Speaker — A 2-inch driver reproduces far-end voices at 74 dB SPL at 1 m for intelligible playback in the room.

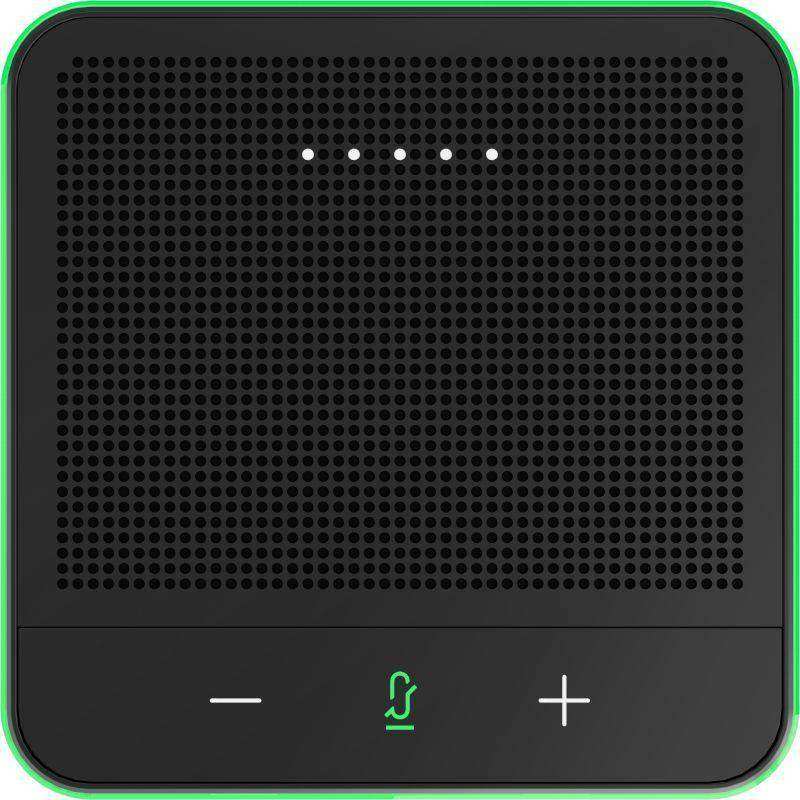

• Capacitive Touch Controls — Backlit volume and mic-mute buttons with LED indicators give users at-a-glance status.
• USB-C Powered — The pod runs on 5VDC via USB-C from the included universal AC power pack for straightforward deployment.

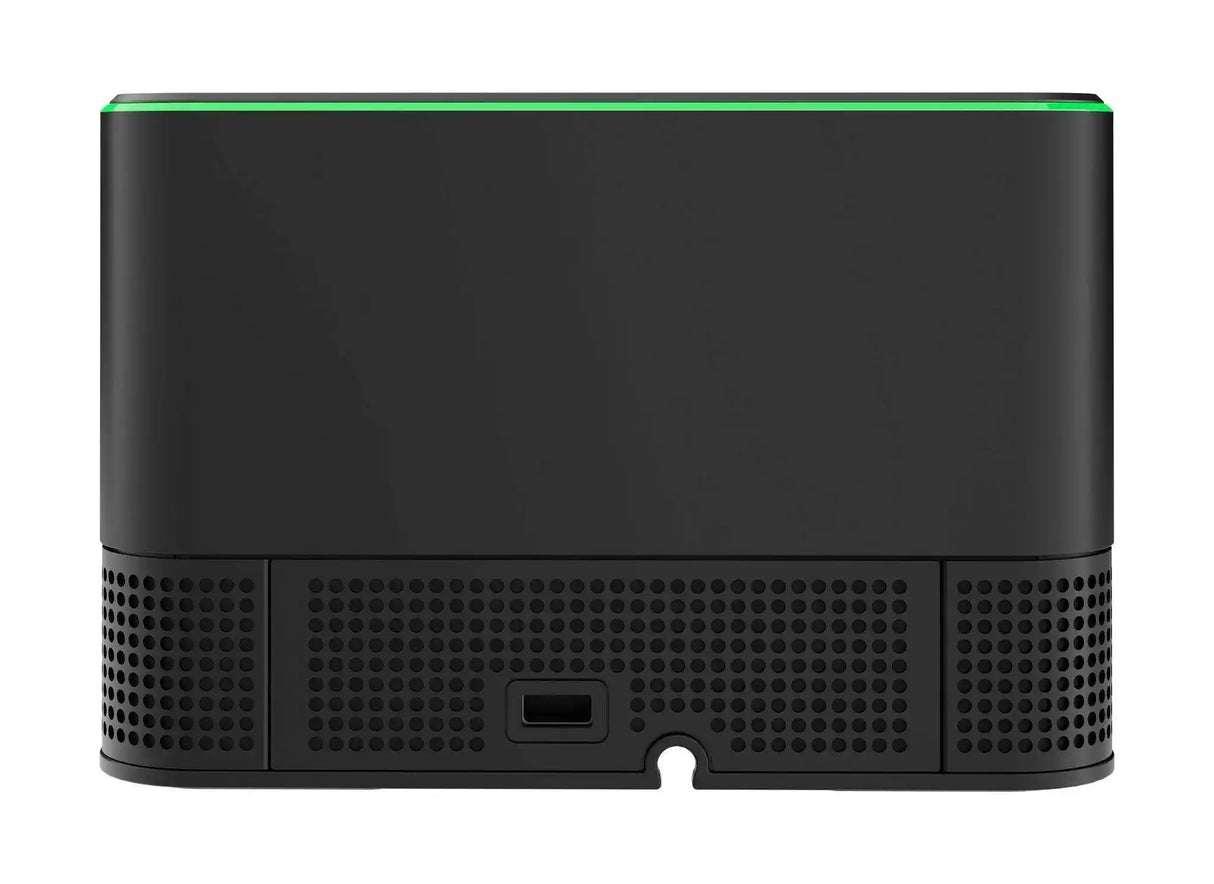

• Kensington Security Slot — A built-in security port lets the pod be physically locked to the conference table.
• Scalable Coverage — Multiple pods can be paired to one hub to extend microphone coverage in larger rooms.

Typical Applications

• Small to large conference rooms and meeting rooms
• Huddle spaces requiring cable-free tabletop audio
• Divisible and multipurpose rooms with reconfigurable seating
• Microsoft Teams Rooms and other UC platforms using Crestron Flex audio
• Executive boardrooms standardizing on Crestron Flex

Technical Specifications

Frequently Asked Questions

Does the pod work on its own?
No. The UC-AUDIO-POD-B-DR1 must be paired with a Crestron Flex hub. See the Crestron UC-AUDIO-HUB-DR1 wireless transceiver, or the complete UC-AUDIO-1-B-DR1 KIT that includes both hub and pod.

Why does the DR1 region code matter?
The DR1 variant operates on 1920–1930 MHz, the band approved for the US and Canada. Match the pod and hub region codes for compliant, interference-free operation in your locale.

Can I use more than one pod in a large room?
Yes. Multiple pods can be paired to a single hub to extend microphone pickup across larger conference rooms. Refer to the Crestron data sheet for the supported pod count per hub.

How does it integrate with video conferencing?
The pod is part of the Crestron Flex audio platform and is used with the UC-AUDIO-HUB to deliver room audio to UC platforms such as Microsoft Teams Rooms and Zoom Rooms.

What warranty applies?
This product is covered under the Crestron standard 3-year limited warranty. For configuration, compatibility, or AV integration support, Contact Creation Networks.
