Crestron UC-AUDIO-1-B-DR1 KIT Crestron Flex Pod Wireless Audio Kit with Hub and Pod (Black)

Availability: Call for Availability
Crestron SKU: UC-AUDIO-1-B-DR1 KIT
No reviews

Price:
Sale price$1,100.00 Regular price$1,832.00

Description

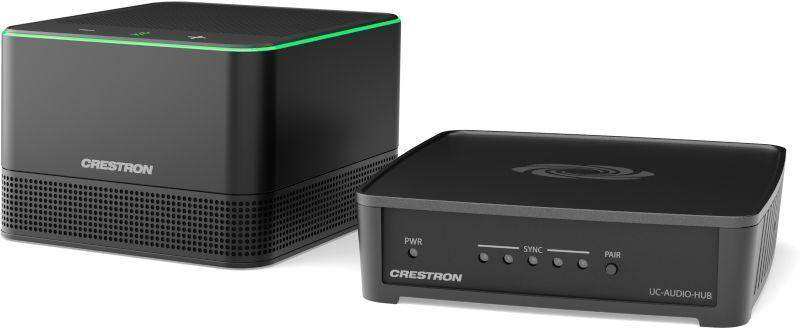

The Crestron Flex UC-AUDIO-1-B KIT is a wireless conferencing system that provides a small to large room audio conference solution. The kit includes a Crestron Flex UC-AUDIO-POD and UC-AUDIO-HUB. The system can be expanded to support up to four pods, delivering a high-quality audio experience when connected to the hub through the Digital Enhanced Cordless Telecommunications (DECT™) technology.

High-Quality Audio
The pod delivers intelligible and high-quality audio across every corner of a room. It contains four auto-mixed directional mics that provide 360-degree pickup, high-quality echo cancellation, automatic gain compensation, and noise reduction.

Wireless Connectivity
The hub wirelessly connects with and distributes audio to up to four paired pods, enabling the pods to be placed anywhere within a room. This allows the hub and the pods to be deployed in large conference rooms and multi-purpose meeting spaces. Audio level consistency is realized as volume levels are synchronized across all the pods.

Outstanding Adaptability
The pod is scalable across a variety of room types, including unconventionally shaped ones and those with challenging designs. In an open architecture design or where walls and ceilings cannot be opened to wires, the pod provides an audio solution ensuring that neither room aesthetics nor optimal audio are compromised. The pod, when connected with the hub, can easily be moved if furniture changes, and additional pods can be added if the room expands. Pods can be deployed in spaces with video conferencing hosted by personal devices to enable productive hybrid meetings with high-quality audio.

Robust Security
The pod delivers audio over long distances, making it optimal for larger spaces. The DECT technology ensures that only paired pods transmit audio from the intended hub. The pod provides safe and secure audio transmission leveraging DECT technology. DECT uses multiple levels of security and does not interfere with other wireless technologies, such as Wi-Fi® and Bluetooth®.

Easy Device Management
The configuration and connection status of the system can be monitored through a simple web user interface with no prior setup. Deploying the pods and the hub across multiple room types, firmware updates, monitoring, and management can be controlled using the XiO Cloud® service.


  • A wireless audio conference solution including a Crestron Flex Pod and Hub
  • Wireless connectivity enables placement of the pod anywhere on a conference table
  • Convenient in-call volume and mic mute controls
  • Speaker volume indicator and LED indicator ring display the operational status
  • Optional tabletop mounting accessory and Kensington® lock support
  • Built-in AEC and noise reduction affords exceptional full-duplex audio performance with highly intelligible, echo-free two-way voice quality
  • Up to four pods connect wirelessly to the hub which sends and receives audio to a UC Engine through a USB-C® connection
  • DECT™ technology ensures minimal interference and robust security

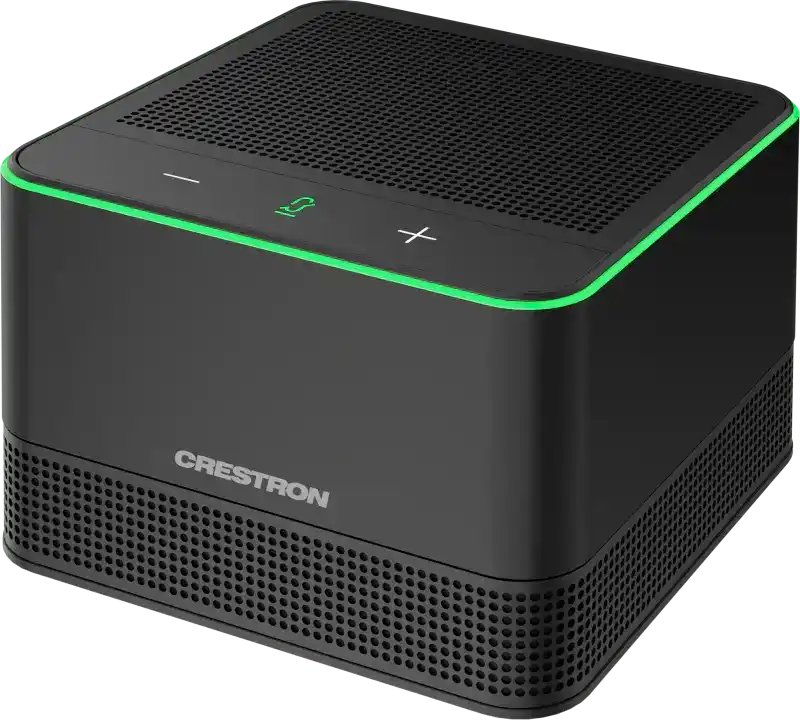

UC-AUDIO-POD
Driver One full range 2 in. speaker
Frequency Response 100 Hz to 7 kHz
Effective Output Level 74 dB SPL at 1 m
Microphones 360° quad mic array
Pickup Range: 7.5 ft (approx. 2.3 m)
Audio (DSP) Acoustic echo cancellation, automatic gain control, dynamic noise suppression, and speaker volume control
Full-duplex IEEE 1329 Type 1 compliant
Wireless Communication Frequency bands:
DR1: 1920 – 1930 MHz 5 channels (For US and Canada only)
DR2: 1880 – 1900 MHz 10 channels (For Europe, Australia, New Zealand, Israel, Saudi Arabia, Kuwait, Qatar, United Arab Emirates, Yemen, Oman, Hong Kong, Singapore and Iraq)
Range up to 50 ft (approx. 15 m) indoors
Indicators Green LED indicates microphone is unmuted
Red LED indicates microphone is muted
White LED indicates the speaker volume level
Buttons Speaker volume up/down: Capacitive, backlit
Mic mute: Capacitive, backlit
Pair: Push button
Reset: Recessed push button
USB-C 5VDC, 3A via external 100-240VAC power pack (included with the pod)
Security Port Kensington Security Slot™ port
Environmental Temperature: 41° to 104° F (5° to 40° C)
Humidity: 10% to 95% RH (non‑condensing)
Heat dissipation: 12 BTU/hr
Enclosure Lightly textured black/white finish, plastic housing, perforated stainless steel grilles, and die-cast aluminum bottom cover
Mounting Tabletop mounting only
Dimensions Height: 3.0 in. (76 mm)
Width: 4.40 in. (112 mm)
Depth: 4.40 in. (112 mm)
Weight 1.6 lb (726 g)

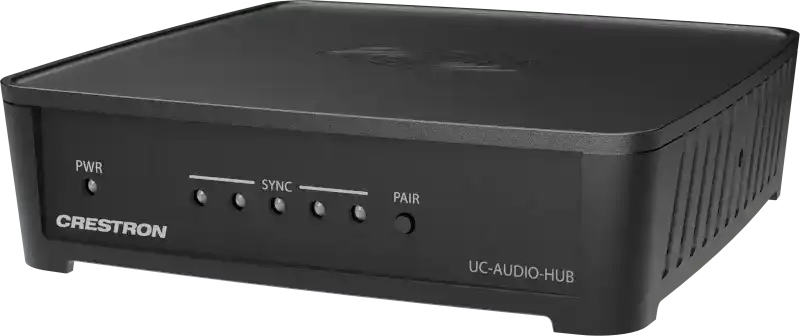

UC-AUDIO-HUB
Wireless Communication Frequency bands:
DR1: 1920 – 1930 MHz 5 channels (For US and Canada only)
DR2: 1880 – 1900 MHz 10 channels (For Europe, Australia, New Zealand, Israel, Saudi Arabia, Kuwait, Qatar, United Arab Emirates, Yemen, Oman, Hong Kong, Singapore and Iraq)
Range up to 50 ft (approx. 15 m) indoors
Indicators Power: Green LED indicates the power is on
Sync: Five SYNC LEDs indicate pairing and connection with each pod1
Buttons Pair: Tactile push button
Reset: Recessed push button
USB-C USB-C (PC) Connection for Audio and HID data
24VDC, 0.75A 24VDC, 0.74A via external 100-240VAC power pack (included with the hub)
RJ-45 1000 Mbps Ethernet
Environmental Temperature: 41° to 104° F (5° to 40° C)
Humidity: 10% to 95% RH (non‑condensing)
Heat dissipation: 12.3 BTU/hr
Enclosure Lightly textured black finish, plastic housing
Mounting Freestanding, stackable, surface mount and wall/ceiling mount option with bracket (black plastic)
Dimensions Height: 1.35 in. (34 mm), 1.77 in. (45 mm) with bracket
Width: 5.04 in. (128 mm), 5.36 in. (137 mm) with bracket
Depth: 5.04 in. (128 mm)
Weight 8.9 oz (253 g) without bracket
