Crestron UC-AUDIO-HUB-DR1 Crestron Flex Hub Wireless Transceiver

Availability: Call for Availability
Crestron SKU: UC-AUDIO-HUB-DR1
No reviews
Price:
$500.00 $832.00

Description

The Crestron Flex UC-AUDIO-HUB is a wireless transceiver and auto mixer that connects with up to four paired Crestron Flex UC-AUDIO-POD devices through the Digital Enhanced Cordless Telecommunications (DECT™) technology. The hub receives audio from the pods' microphones, auto-mixes the audio, and transfers it to a UC Engine through a USB-C® connection. The hub also distributes audio to all paired pods after receiving the audio from the UC Engine.

Wireless Connectivity
The hub wirelessly connects with and distributes audio to up to four paired pods, enabling the pods to be placed anywhere within a room. This allows the hub and the pods to be deployed in large conference rooms and multi-purpose meeting spaces. Audio level consistency is realized as volume levels are synchronized across all the pods.

Robust Security
The hub provides safe and secure audio transmission to and from the pods by leveraging DECT technology. DECT uses multiple levels of security and does not interfere with other wireless technologies, such as Wi-Fi® and Bluetooth®.

Easy Device Management
The configuration and connection status of the hub can be monitored through a simple web user interface with no prior setup. Firmware updates, monitoring, and management can be controlled using the XiO Cloud® service.


  • A wireless transceiver and auto mixer for Crestron Flex Pods
  • Pairs with up to four pods via DECT™ technology
  • DECT technology ensures minimal interference and robust security
  • Connects to a UC Engine through a USB-C® cable, transferring auto-mixed audio to the UC application
Wireless Communication
Frequency Frequency bands:
DR1: 1920 – 1930 MHz 5 channels (For US and Canada only)
DR2: 1880 – 1900 MHz 10 channels (For Europe, Australia, New Zealand, Israel, Saudi Arabia, Kuwait, Qatar, United Arab Emirates, Yemen, Oman, Hong Kong, Singapore and Iraq)
Range up to 50 ft (approx. 15 m) indoors

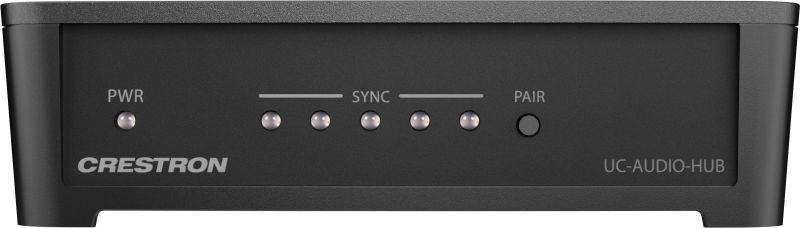

Indicators
Power Green LED indicates the power is on
Sync Five SYNC LEDs indicate pairing and connection with each pod1
Buttons
Pair Tactile push button
Reset Recessed push button

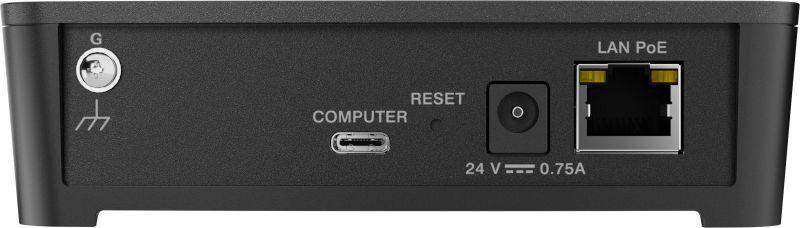

Connectors
USB-C USB-C (PC) Connection for Audio and HID data
24VDC, 0.75A 24VDC, 0.74A via external 100-240VAC power pack, (included with the hub)
RJ-45 1000 Mbps Ethernet
Environmental
Temperature 41° to 104° F (5° to 40° C)
Humidity 10% to 95% RH (non‑condensing)
Heat Dissipation 12.3 BTU/hr
Construction
Enclosure Lightly textured black finish, plastic housing
Mounting Freestanding, stackable, surface mount and wall/ceiling mount option with bracket (black plastic)
Dimensions
Height 1.35 in. (34 mm), 1.77 in. (45 mm) with bracket
Width 5.04 in. (128 mm), 5.36 in. (137 mm) with bracket
Depth 5.04 in. (128 mm)
Weight
8.9 oz (253 g) without bracket
