Chief TILED KIT for Nanolumens Engage 8X8 - TILD8X8NE1

Product Overview

The Chief TILD8X8NE1 is a Chief TiLED dvLED wall mount kit for Nanolumens Engage, preconfigured for an 8x8 direct view LED video wall. This dvLED wall mount kit gives commercial AV integrators a modular platform built for precise alignment, full serviceability, and modular expansion. Every structural column mount and vertical alignment bracket needed for the 8x8 array ships in a single kit, simplifying specification and procurement for Nanolumens Engage installations.

Product Description

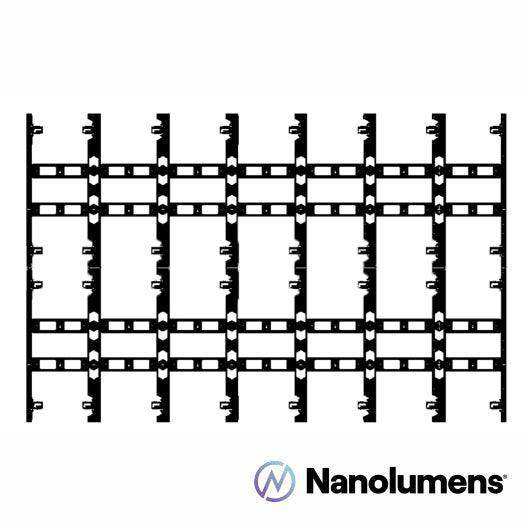

The TILD8X8NE1 is a complete Nanolumens Engage 8x8 video wall mount package that combines Chief TiLED structural column mounts with vertical alignment brackets. As a direct view LED mounting system, it is engineered around the Nanolumens Engage form factor so integrators can deliver a flat, seam-aligned canvas without sourcing brackets piecemeal. The included TiLED vertical alignment brackets help installers true adjacent columns for consistent tile-to-tile spacing across the array. Because the platform is designed for serviceability and modular expansion, panels remain accessible after installation and the same component family scales to other array sizes. This configuration ships without side covers, making it the right choice when the video wall edges are recessed or finished by other trim. Preconfiguring the bill of materials reduces specification errors and shortens procurement for AV integrators managing commercial LED video wall installation. For a finished-edge version, compare the Chief TILD8X8NE1SC with side covers, or step down with the Chief TILD6X6NE1 6x6 kit. Browse the full Chief mounting collection for more dvLED solutions.

Key Features

• Preconfigured 8x8 Kit — Ships with every structural mount and alignment bracket required for a Nanolumens Engage 8x8 video wall, reducing specification errors.
• Nanolumens Engage Compatibility — Engineered specifically for the Nanolumens Engage series for a precise, purpose-matched fit.
• Vertical Alignment Brackets — Included TILVAB2 brackets help true adjacent columns for consistent tile-to-tile spacing.
• Built for Serviceability — The TiLED platform keeps LED panels accessible for maintenance after installation.
• Modular and Expandable — The same TiLED component family scales to other Nanolumens Engage array sizes.

Typical Applications

• Corporate lobbies and experience centers
• Boardrooms and executive briefing rooms
• Auditoriums and large-format presentation venues
• Broadcast studios and production sets
• House of worship main-stage displays
• Government and command-center spaces

Technical Specifications

Kit Contents

Frequently Asked Questions

Which display is the TILD8X8NE1 designed for?
It is engineered for the Nanolumens Engage series in an 8x8 direct view LED array.

Does this kit include side covers?
No. This configuration ships without side covers. For finished vertical edges, the TILD8X8NE1SC includes a side cover set.

What is included in the kit?

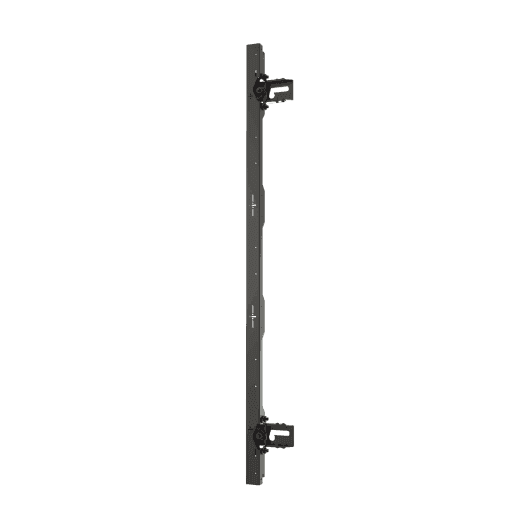

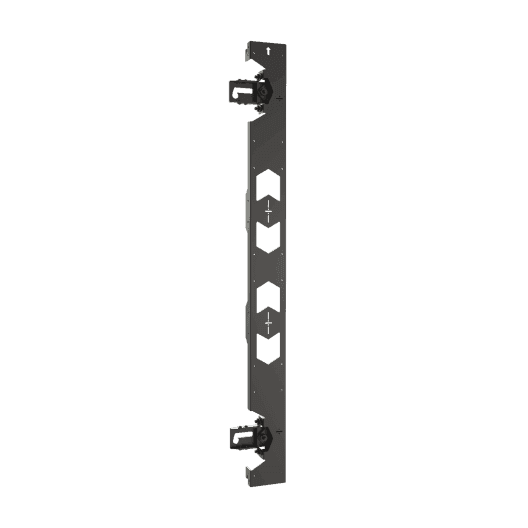

It includes TiLED 1x4 column mounts (left-edge and middle) and TILVAB2 vertical alignment brackets sized for the 8x8 array.

How does the kit support alignment during installation?
The included vertical alignment brackets help installers true adjacent columns for consistent tile-to-tile spacing across the canvas.

Is the video wall serviceable after installation?
Yes. The TiLED platform is designed for serviceability, keeping panels accessible for maintenance.

Can the system be expanded later?
The TiLED component family is modular, so the architecture can scale to other Nanolumens Engage array sizes.

What warranty applies and how do I get support?
The kit is covered under the Legrand AV / Chief manufacturer warranty. Contact Creation Networks for current warranty terms and AV system integration support.
