Chief TILED KIT for Nanolumens Engage 8X8 with Side Covers - TILD8X8NE1SC

Product Overview

The Chief TILD8X8NE1SC is a Chief TiLED dvLED wall mount kit for Nanolumens Engage, preconfigured for an 8x8 direct view LED video wall and supplied complete with side covers. This dvLED wall mount kit gives commercial AV integrators a documented, modular platform built for precise alignment, full serviceability, and clean edge finishing. Every structural mount, vertical alignment bracket, and side cover needed for the 8x8 array ships in one kit, simplifying specification and procurement. It is purpose-matched to the Nanolumens Engage series for repeatable, professional-grade installation.

Product Description

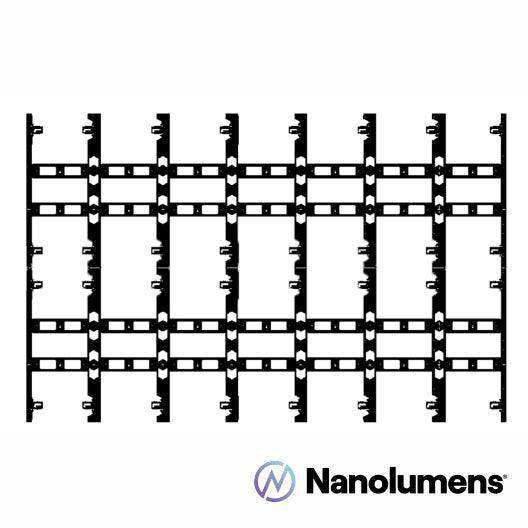

The TILD8X8NE1SC is a complete Nanolumens Engage 8x8 video wall mount package that pairs Chief TiLED structural column mounts with vertical alignment brackets and a full set of side covers. As a direct view LED mounting system, it is engineered around the Nanolumens Engage form factor so integrators can deliver a flat, seam-aligned canvas without sourcing brackets piecemeal. The included TiLED vertical alignment brackets help installers true adjacent columns for consistent tile-to-tile spacing, while the side cover set finishes the left and right edges of the array for a built-in appearance. Because the platform is designed for serviceability and modular expansion, panels remain accessible after installation and the same component family can scale to other array sizes. The kit is well suited to high-visibility commercial LED video wall installation where edge finishing and long-term maintenance access both matter. Preconfiguring the bill of materials reduces specification errors and shortens procurement for AV integrators and project managers. For projects that do not require finished edges, compare the Chief TILD8X8NE1 8x8 kit without side covers, or step down in size with the Chief TILD6X6NE1SC 6x6 kit with side covers. Browse the full Chief mounting collection for additional dvLED solutions.

Key Features

• Preconfigured 8x8 Kit — Ships with every structural mount, alignment bracket, and side cover required for a Nanolumens Engage 8x8 video wall, reducing specification errors.
• Nanolumens Engage Compatibility — Engineered specifically for the Nanolumens Engage series for a precise, purpose-matched fit.
• Vertical Alignment Brackets — Included TILVAB2 brackets help true adjacent columns for consistent tile-to-tile spacing across the canvas.
• Integrated Side Covers — The included side cover set finishes the left and right edges of the array for a clean, built-in appearance.
• Built for Serviceability — The TiLED platform is designed for post-installation access and ongoing maintenance of the LED panels.
• Modular and Expandable — The same TiLED component family scales to other Nanolumens Engage array sizes for future flexibility.

Typical Applications

• Corporate lobbies and experience centers
• Boardrooms and executive briefing rooms
• Auditoriums and large-format presentation venues
• Broadcast studios and production sets
• House of worship main-stage displays
• Government and command-center spaces
• Commercial meeting and all-hands spaces

Technical Specifications

Kit Contents

Frequently Asked Questions

Which display is the TILD8X8NE1SC designed for?
It is engineered for the Nanolumens Engage series in an 8x8 direct view LED array.

What is included in this preconfigured kit?

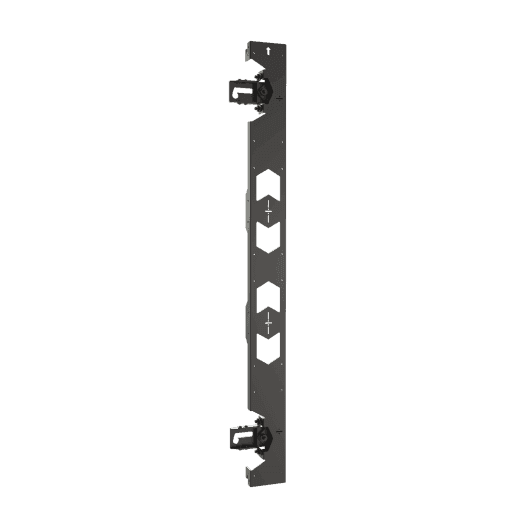

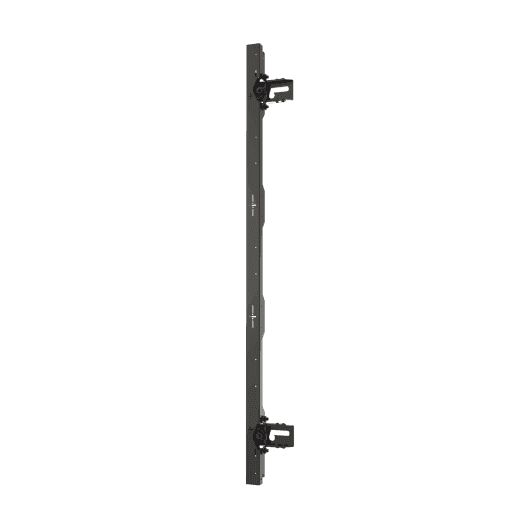

The kit includes TiLED 1x4 column mounts (left-edge and middle), TILVAB2 vertical alignment brackets, and a side cover set (TILSC27U2 and TILSC27U3) for finished left and right edges.

What do the side covers add versus the standard kit?
The side covers finish the vertical edges of the video wall for a clean, built-in look. If finished edges are not required, the TILD8X8NE1 kit without side covers is an alternative.

How does the kit support alignment during installation?
The included vertical alignment brackets help installers true adjacent columns for consistent tile-to-tile spacing across the 8x8 canvas.

Is the video wall serviceable after installation?
Yes. The TiLED platform is designed for serviceability, keeping panels accessible for maintenance after the array is installed.

Can the system be expanded or reconfigured later?
The TiLED component family is modular, so the same architecture can scale to other Nanolumens Engage array sizes for future projects.

What warranty applies and how do I get support?
The kit is covered under the Legrand AV / Chief manufacturer warranty. Contact Creation Networks for current warranty terms and AV system integration support.
