Chief TILED KIT for Nanolumens Engage 6X6 - TILD6X6NE1

Product Overview

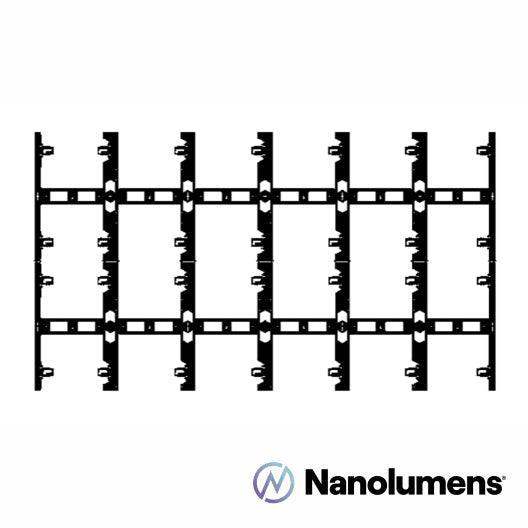

The Chief TILD6X6NE1 is a Chief TiLED dvLED wall mount kit for Nanolumens Engage, preconfigured for a 6x6 direct view LED video wall. This dvLED wall mount kit gives commercial AV integrators a modular platform built for precise alignment, full serviceability, and modular expansion. Every structural column mount and vertical alignment bracket needed for the 6x6 array ships in a single kit, simplifying specification and procurement for Nanolumens Engage installations.

Product Description

The TILD6X6NE1 is a complete Nanolumens Engage 6x6 video wall mount package that combines Chief TiLED structural column mounts with vertical alignment brackets. As a direct view LED mounting system, it is engineered around the Nanolumens Engage form factor so integrators can deliver a flat, seam-aligned canvas without sourcing brackets piecemeal. The included TiLED vertical alignment brackets help installers true adjacent columns for consistent tile-to-tile spacing across the array. Because the platform is designed for serviceability and modular expansion, panels remain accessible after installation and the same component family scales to other array sizes. This configuration ships without side covers, making it the right choice when the video wall edges are recessed or finished by other trim. Preconfiguring the bill of materials reduces specification errors and shortens procurement for commercial LED video wall installation. For a finished-edge version, compare the Chief TILD6X6NE1SC with side covers, or scale up with the Chief TILD8X8NE1 8x8 kit. Browse the full Chief mounting collection for more dvLED solutions.

Key Features

• Preconfigured 6x6 Kit — Ships with every structural mount and alignment bracket required for a Nanolumens Engage 6x6 video wall.
• Nanolumens Engage Compatibility — Engineered specifically for the Nanolumens Engage series for a precise, purpose-matched fit.
• Vertical Alignment Brackets — Included TILVAB2 brackets help true adjacent columns for consistent tile-to-tile spacing.
• Built for Serviceability — The TiLED platform keeps LED panels accessible for maintenance after installation.
• Modular and Expandable — The same TiLED component family scales to other Nanolumens Engage array sizes.

Typical Applications

• Corporate lobbies and experience centers
• Boardrooms and executive briefing rooms
• Auditoriums and presentation venues
• Broadcast studios and production sets
• House of worship main-stage displays
• Government and command-center spaces

Technical Specifications

Kit Contents

Frequently Asked Questions

Which display is the TILD6X6NE1 designed for?
It is engineered for the Nanolumens Engage series in a 6x6 direct view LED array.

Does this kit include side covers?
No. This configuration ships without side covers. For finished vertical edges, the TILD6X6NE1SC includes a side cover set.

What is included in the kit?

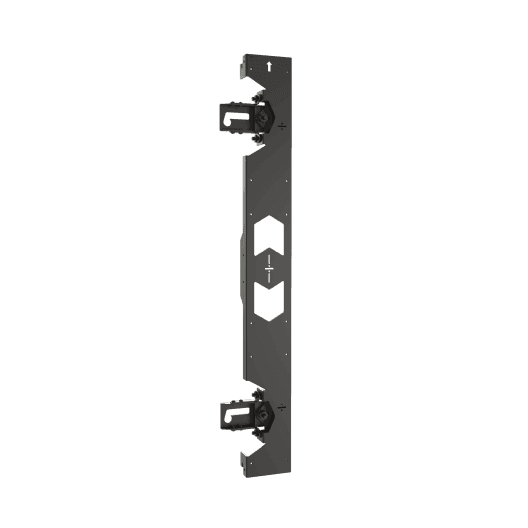

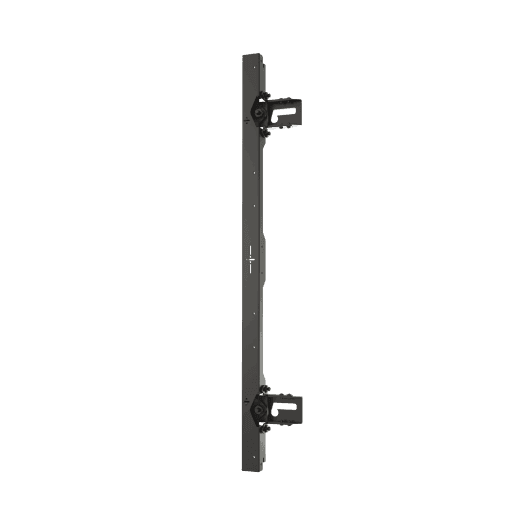

It includes TiLED 1x3 column mounts (left-edge and middle) and TILVAB2 vertical alignment brackets sized for the 6x6 array.

How does the kit support alignment during installation?
The included vertical alignment brackets help installers true adjacent columns for consistent tile-to-tile spacing across the canvas.

Is the video wall serviceable after installation?
Yes. The TiLED platform is designed for serviceability, keeping panels accessible for maintenance.

Can the system be expanded later?
The TiLED component family is modular, so the architecture can scale to other Nanolumens Engage array sizes.

What warranty applies and how do I get support?
The kit is covered under the Legrand AV / Chief manufacturer warranty. Contact Creation Networks for current warranty terms and AV system integration support.
