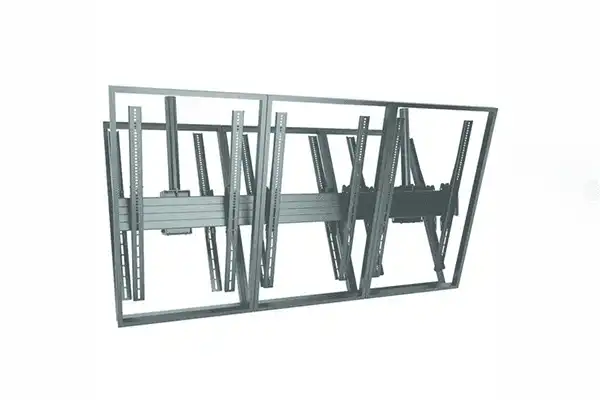

Chief FUSION™ Large Portrait Back-to-Back Ceiling Mounted 3 x 1 Menu Board- LCB3X1UP

Product Overview

The Chief Fusion Large Portrait Back-to-Back Ceiling-Mounted 3 x 1 Menu Board LCB3X1UP makes it possible to build menu boards in prominent locations where walls aren't available. This ceiling-mounted, double-sided 3 x 1 portrait array holds up to six displays and is built for digital signage and quick-service menu board installations. A ceiling plate and extension column are required and ordered separately.

Product Description

Chief's Fusion ceiling-mounted solutions make it possible to construct menu boards in prominent locations where walls aren't available, and they combine easily to create longer menu boards. The LCB3X1UP is a large portrait back-to-back, ceiling-mounted 3 x 1 array that supports six displays total for double-sided viewing, making it well suited to digital signage and quick-service restaurant menu boards. A single horizontal extrusion keeps screens aligned, and tilting interfaces with Centris technology allow easy adjustment from +5 to -20 degrees. Tool-free screen engagement speeds installation, and displays can be secured with optional padlock security. The mount fits 40 - 55" diagonal screens, with FCAX extension brackets enabling screens up to 65". A ceiling plate and extension column are required and must be ordered separately; the mount is compatible with traditional 1.5" NPT and new CPA pinned ceiling plates and column systems. Use MountFinder to confirm screen compatibility.

Key Features

• Ceiling-mounted menu board — Builds prominent menu boards in locations where walls aren't available, and combines to create longer arrays.
• Back-to-back 3 x 1 array — Supports six displays total for double-sided portrait viewing.
• Centris tilt adjustment — Tilting interfaces with Centris technology adjust from +5 to -20 degrees.
• Aligned and tool-free — A single horizontal extrusion keeps screens aligned, and screen engagement is tool-free.
• Screen size range — Fits 40 - 55" diagonals, and up to 65" with FCAX extension brackets.
• Optional security — Displays can be secured with optional padlock security.
• Flexible ceiling systems — Compatible with traditional 1.5" NPT and new CPA pinned ceiling plates and column systems (ordered separately).

Typical Applications

• Quick-service restaurant menu boards
• House of worship signage
• Commercial meeting space and lobby digital signage
• Multi-purpose room ceiling displays

Technical Specifications

Frequently Asked Questions

How many displays does the LCB3X1UP hold?
It is a back-to-back 3 x 1 portrait array that supports six displays total for double-sided viewing.

What screen sizes are supported?
It fits typical 40 - 55" diagonal screens, and up to 65" with FCAX extension brackets, at 125 lbs (56.7 kg) per display with a 102 - 400 mm VESA pattern.

What additional parts do I need?
A ceiling plate and extension column are required and must be ordered separately. The mount is compatible with traditional 1.5" NPT and new CPA pinned ceiling plates and column systems.

How much do the screens tilt?
Tilting interfaces with Centris technology allow adjustment from +5 to -20 degrees, and tool-free engagement simplifies installation.

How do I confirm my displays are compatible?
Use Chief MountFinder and reference the specification sheet to confirm screen compatibility before ordering.

What warranty applies?
This Chief mount is covered under the Legrand AV / Chief manufacturer warranty. Contact Creation Networks for current warranty terms and support.
