Chief Ceiling Mount 3 Wide B2B Kit - LCB3X1U

Product Overview

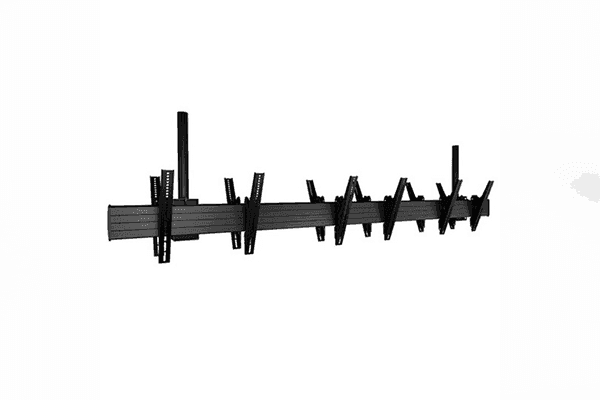

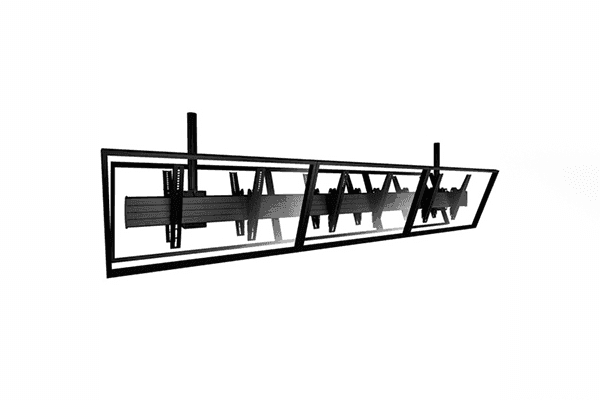

The Chief LCB3X1U is a large back-to-back ceiling-mounted 3x1 menu board mount built for digital signage in locations where wall space is unavailable. It suspends two rows of three landscape displays from a single drop column, making it well suited to quick-service restaurants, retail aisles, and transit concourses. The Fusion design keeps screens precisely aligned and serviceable, while Centris tilt allows fine viewing-angle correction after installation. Each side supports displays from 40 to 55 inches, expandable to 65 inches with optional FCAX extension brackets.

Product Description

The LCB3X1U is part of Chief's Fusion ceiling-mounted menu board family, engineered to create a clean, double-sided three-display menu board where a ceiling drop is the only practical mounting surface. A single horizontal extrusion runs the length of each row to hold all three displays in alignment, even across longer spans, and the back-to-back configuration presents content to traffic moving in both directions. Centris fingertip tilt provides a +5 to -20 degree range so integrators can dial in sightlines for seated or standing audiences. Tool-free screen engagement speeds installation, and optional padlock security protects displays in public-facing commercial spaces. The mount carries up to 125 lbs per display and accommodates VESA patterns from 102 to 400 mm. Note that the ceiling plate and extension column are sold separately and must be ordered to complete the installation; the LCB3X1U is compatible with both traditional 1.5" NPT and CPA pinned ceiling plate and column systems. For a portrait-oriented menu board, the matching LCB3X1UP is available, and additional ceiling and video wall solutions are listed in the Chief collection.

Key Features

• Back-to-back 3x1 array — Mounts six landscape displays, three per side, for double-sided digital signage from a single ceiling drop.
• Single horizontal extrusion — Keeps all displays in each row aligned across the full span, including longer menu board runs.
• Centris tilt adjustment — Provides a +5 to -20 degree tilt range for accurate sightline correction in overhead installations.
• Tool-free screen engagement — Lets a technician seat and remove displays quickly during installation and service.
• 125 lb per-display capacity — Supports commercial-grade displays from 40 to 55 inches, or up to 65 inches with optional FCAX extension brackets.
• Optional padlock security — Secures displays against tampering in public commercial environments.
• Universal VESA compatibility — Fits mounting patterns from 102 to 400 mm for broad display compatibility.

Typical Applications

• Commercial meeting space and retail concourses requiring double-sided overhead signage
• House of worship lobbies and wayfinding displays
• Government space and transit menu board installations
• Multi-purpose room and training room digital signage where walls are unavailable

Technical Specifications

Frequently Asked Questions

What displays is the LCB3X1U compatible with?
It supports landscape displays from 40 to 55 inches with VESA patterns of 102 to 400 mm, and accommodates screens up to 65 inches when optional FCAX extension brackets are added. Weight capacity is 125 lbs per display.

Does this kit include everything needed for installation?
No. The ceiling plate and extension column are required and must be ordered separately. The mount is compatible with traditional 1.5" NPT plates and columns as well as CPA pinned systems.

Can it be configured for portrait displays?
The LCB3X1U is a landscape solution. For a portrait three-wide menu board, Chief offers the matching LCB3X1UP model.

How does it integrate into a digital signage system?
The back-to-back design presents content to traffic in both directions from a single ceiling drop, and the single extrusion keeps all six displays aligned for a cohesive menu board. Tool-free engagement and Centris tilt simplify integration and post-install sightline adjustment.

What warranty applies?
This product is covered under the Legrand AV / Chief manufacturer warranty. Contact Creation Networks for current warranty terms and coverage details.

Is installation support available?
Yes. Creation Networks can advise on ceiling plate and column selection and overall configuration so the system is specified correctly before you order.
