Chief 5 Wide Ceiling Mounted Menu-Board - LCM5X1U
Product Overview

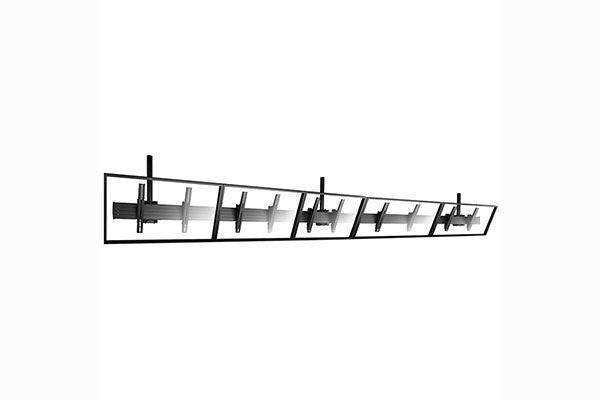

The Chief LCM5X1U is a five-wide ceiling-mounted menu board solution that builds digital signage in prominent locations where walls are not available. It mounts five displays in a 5 x 1 horizontal row from the ceiling, ideal for quick-service menu boards and commercial digital signage. A single horizontal extrusion keeps screens aligned across the run. Centris tilt technology and tool-free screen engagement streamline installation and service.
Product Description
The LCM5X1U is part of Chief's Fusion ceiling-mounted menu board family, designed to construct long, aligned digital menu boards in open commercial spaces. It arranges five screens in a 5 x 1 configuration (screens wide x screens high) and can be combined to create even longer menu boards. A single horizontal extrusion keeps all five screens aligned across the run for a clean signage line. Tilting interfaces with Centris technology allow easy adjustment from +5 to -20 degrees, and tool-free screen engagement speeds mounting. Displays can be secured with optional padlock security, and the solution fits 40 to 55" diagonals — add FCAX extension brackets for larger screens up to 65". A ceiling plate and extension column are required and ordered separately, compatible with traditional 1.5" NPT and CPA pinned ceiling plate and column systems.
The solution is TAA Compliant for government and institutional procurement. Browse comparable ceiling menu board and array mounts in the Chief collection.
Key Features
- Five-wide menu board — Mounts five displays in a 5 x 1 horizontal row and combines for longer menu boards.
- Aligned screens — A single horizontal extrusion keeps all displays aligned across the run.
- Centris tilt — Tilting interfaces with Centris technology adjust easily from +5 to -20 degrees.
- Tool-free engagement — Displays mount without tools, with optional padlock security for protection.
- Wide display range — Fits 40 to 55" diagonals; add FCAX extension brackets for screens up to 65".
- Ceiling system compatibility — Works with traditional 1.5" NPT and CPA pinned ceiling plates and columns (ordered separately).
- TAA Compliant — Meets TAA requirements for government and institutional procurement.
Typical Applications
- Quick-service and restaurant menu boards
- Retail and commercial meeting space digital signage
- Government space and institutional wayfinding
- Transit hub and airport information rows
- Multi-purpose room overhead signage
Technical Specifications
| Brand | Chief (Legrand AV) |
| Model / SKU | LCM5X1U |
| Product Type | Ceiling-mounted menu board solution |
| Series | Fusion Ceiling Mounted Menu Board |
| Array Configuration | 5 wide x 1 high |
| Display Diagonal Range | 40" to 55" (up to 65" with FCAX extension brackets) |
| Tilt | +5° / -20° Centris tilting interfaces |
| Screen Engagement | Tool-free, optional padlock security |
| Ceiling Compatibility | 1.5" NPT and CPA pinned ceiling plates / columns |
| Required Separately | Ceiling plate and extension column |
| Compliance | TAA Compliant |
| Warranty | Legrand AV / Chief manufacturer warranty |
Frequently Asked Questions
How many displays does the LCM5X1U hold?
It mounts five displays in a 5 x 1 horizontal row and can be combined with additional units to build longer menu boards.
What display sizes are supported?
It fits 40 to 55" diagonals out of the box. Add FCAX extension brackets to support larger screens up to 65". Confirm compatibility with MountFinder before ordering.
What ceiling hardware is required?
A ceiling plate and extension column are required and ordered separately. The system is compatible with traditional 1.5" NPT and CPA pinned ceiling plate and column systems.
How are the screens kept aligned?
A single horizontal extrusion keeps all five screens aligned, and Centris tilting interfaces adjust from +5 to -20 degrees.
Is this product TAA Compliant?
Yes. The LCM5X1U is TAA Compliant, which supports government and institutional procurement requirements.
What warranty applies?
The solution is covered under the Legrand AV / Chief manufacturer warranty. Contact Creation Networks for current warranty terms and support.
Browse more Chief ceiling signage solutions in the Chief collection.
