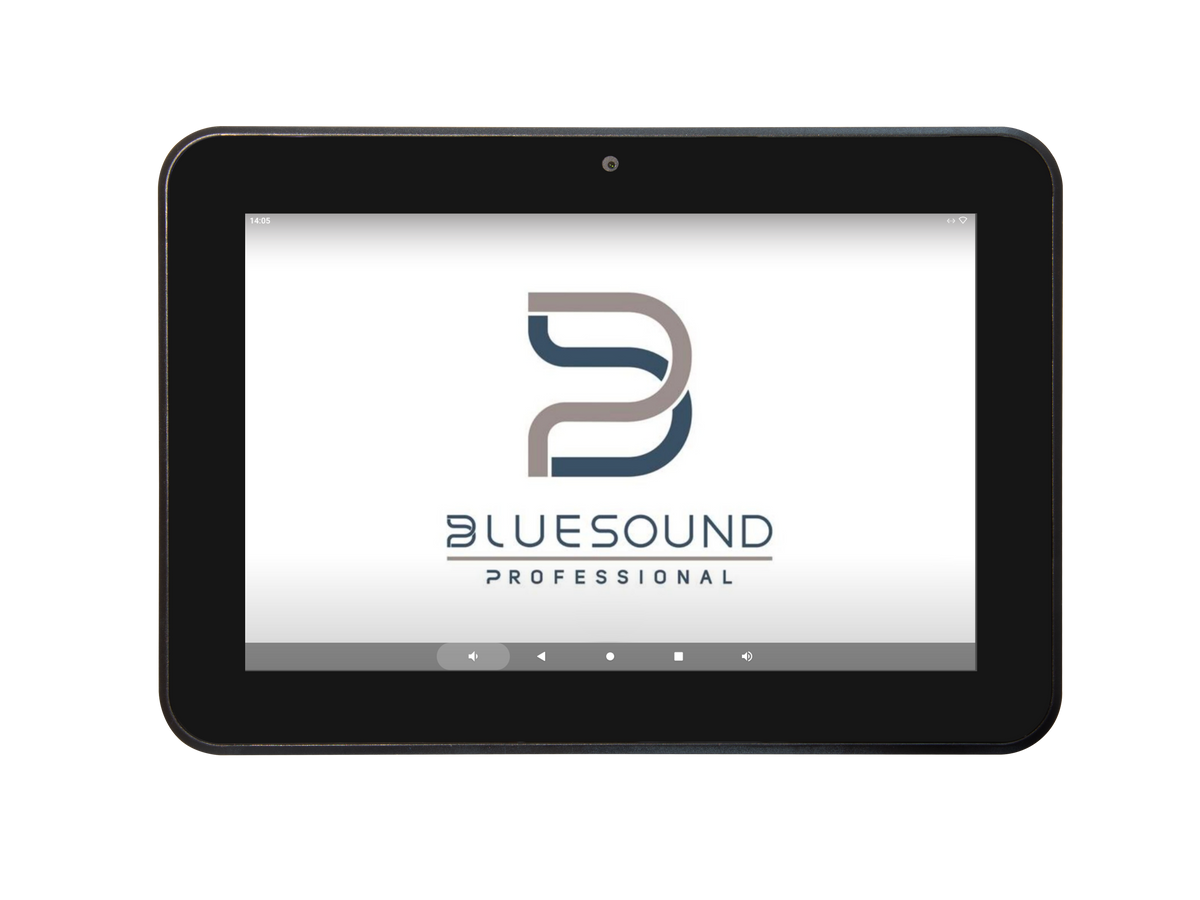

Bluesound CP300 – 8-Inch Android PoE+ Wall-Mount Touch Panel

What is the Bluesound CP300 wall-mount touch panel?

The Bluesound CP300 is an 8-inch, PoE+-powered wall-mount touch panel that runs the BluOS Controller app on Android 13, giving staff full control of Bluesound Professional players from a fixed location. It is the top of Bluesound's wall controller range, above the button-based Bluesound CP100. Because it runs the same app operators already use on phones and tablets, there is no custom layout to build and little training required. A customizable PIN locks the panel against unauthorized use in public-facing spaces.

How does the Bluesound CP300 work?

The CP300 connects over a single RJ45 cable that supplies both network and PoE+ power (IEEE 802.3at, Class 4, 25.5W), so it installs like a network device rather than a powered appliance. The pre-installed BluOS Controller app discovers Bluesound Professional players on the network and presents source selection, grouping, volume, and playback for every zone the panel is allowed to see.

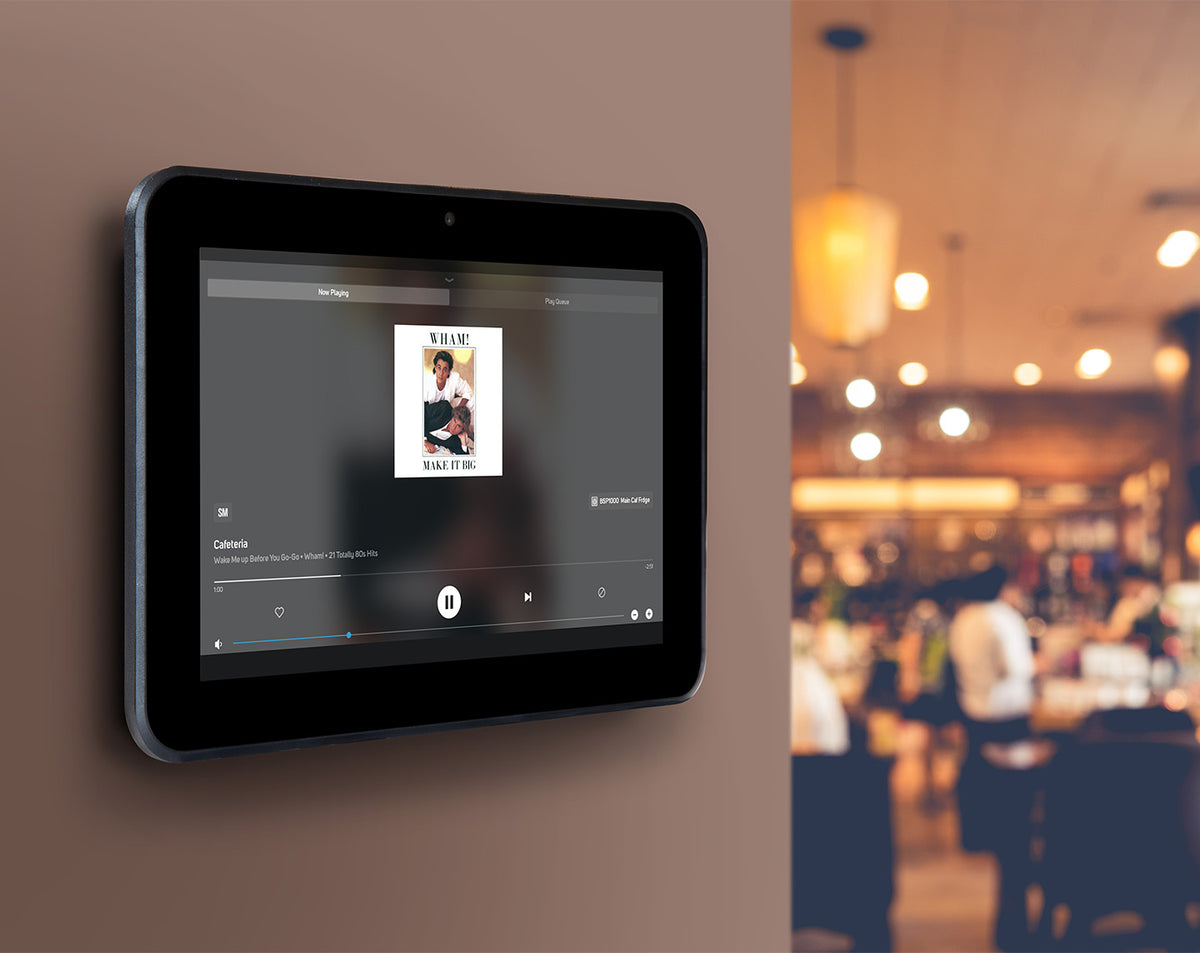

That makes the CP300 a strong fit where a manager needs full multi-zone audio control without carrying a tablet: a front desk controlling a B400S 4-zone network music player, a bar station running BSP200 PoE speakers, or a retail office grouping BCS300 ceiling speakers across the floor. Multiple CP300 units can be integrated into one system for comprehensive control from several locations. Mounting hardware is included for a discreet, low-profile installation.

What are the key features of the Bluesound CP300?

• 8-inch glass touchscreen — A 1280 × 800 display with 5-point capacitive touch gives operators room to manage several zones at once.
• Pre-loaded BluOS Controller app — The same interface used on phones and tablets runs on the wall, so there is no custom programming to maintain.
• Android 13 platform — A quad-core processor with 2GB RAM and 16GB storage keeps the app responsive.
• PIN security — A customizable PIN code prevents unauthorized changes in public-facing spaces.
• PoE+ single-cable installation — Network and 25.5W Class 4 power arrive over one RJ45 connection; a DC jack is available where PoE+ is not.
• Multi-panel systems — Several CP300 units can be integrated into a single BluOS system for control from multiple stations.
• Included mounting hardware — A secure bracket supports flush, low-profile wall installation.

Where is the Bluesound CP300 typically used?

• Commercial meeting space
• Multi-purpose room
• All-hands room
• Training room

It is also well suited to hospitality, retail, and fitness venues where one station manages music across many zones.

Technical Specifications

Frequently Asked Questions

What does the CP300 control?

The CP300 runs the BluOS Controller app, so it controls Bluesound Professional players on the network, including streamers, streaming amplifiers, and PoE speakers. See the full range in our Bluesound Professional collection.

How is the CP300 powered?

Over PoE+ (IEEE 802.3at, Class 4, 25.5W) through its RJ45 port. A DC power input is also provided but is not required when PoE+ is used.

Does my PoE switch support the CP300?

The switch port must deliver PoE+ (802.3at). Standard 802.3af PoE ports do not supply enough power for this panel.

How do I stop guests from changing the music?

The CP300 supports a customizable PIN code that locks the panel against unauthorized use.

How does the CP300 compare to the CP100?

The CP100 offers illuminated buttons for volume, play/pause/mute, and five presets. The CP300 gives full app-based control of every zone on an 8-inch screen.

Can Creation Networks install and support the CP300?

Yes. We design, install, and support Bluesound Professional systems nationwide, from single-zone cafés to multi-site rollouts. Call 888.230.3661 or email sales@creationnetworks.net.
