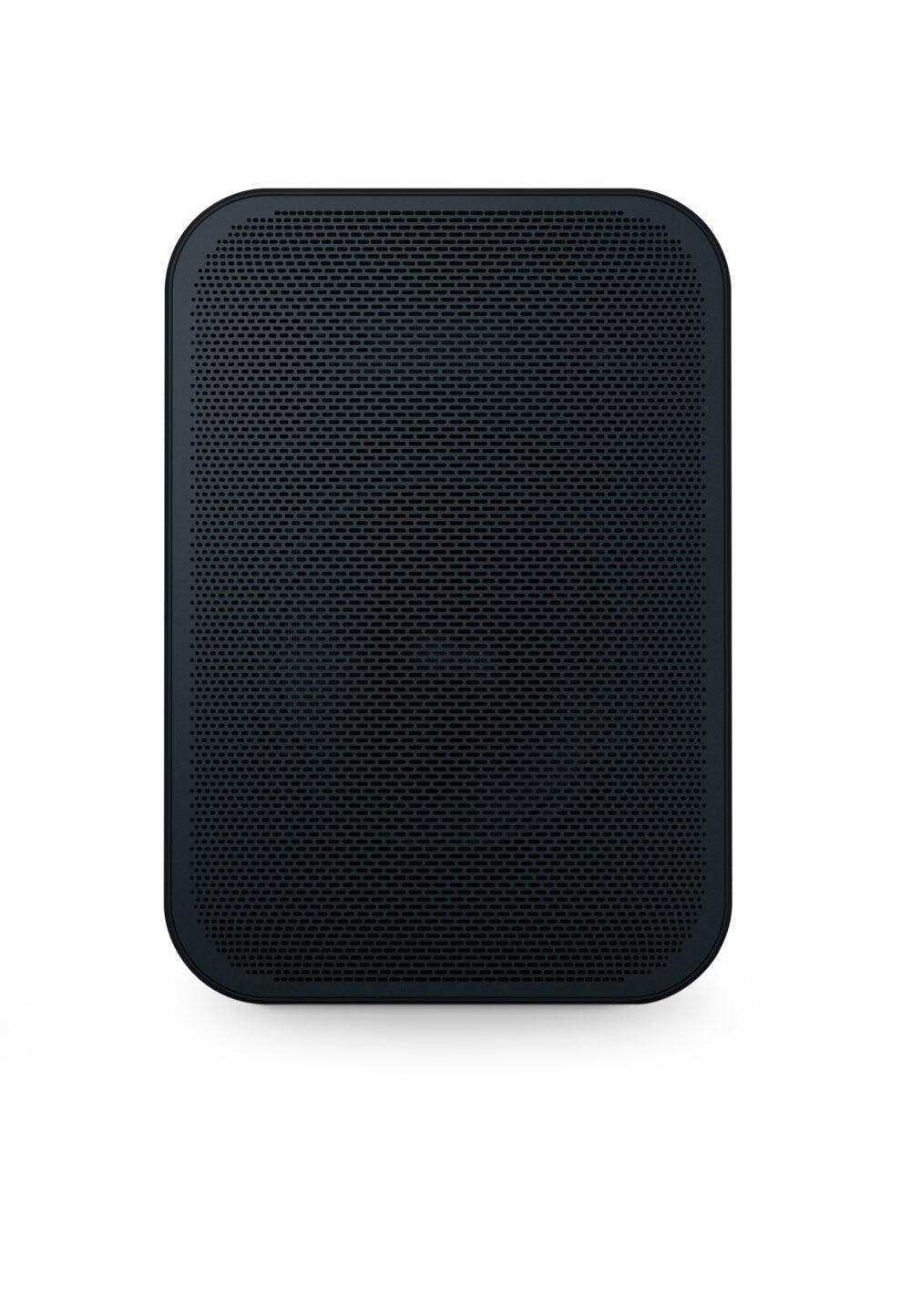

Bluesound BSP200-B – PoE+ Compact Network Streaming Speaker (Black)

Product Overview

The Bluesound Professional BSP200 (Black) is a PoE+-powered compact network active loudspeaker with an integrated BluOS streaming player, designed for commercial AV installations where a single ethernet cable delivers both power and network audio to the speaker. Powered by a 23W high-efficiency amplifier driving a 3.5-inch LF and 1-inch HF driver, the BSP200 covers 45Hz–20kHz with a maximum SPL of 102dB (PoE+). Its compact size and single-cable installation make it well-suited for tight commercial spaces — retail displays, boutique hotel rooms, restaurant bar areas, and office environments — where traditional speaker cabling and AC outlet requirements add cost and complexity.

Product Description

The BSP200's embedded BluOS player streams directly from commercial music services — SoundMachine, Custom Channels, QSIC, SiriusXM for Business, and Tunify — alongside Spotify, Tidal, Qobuz, and internet radio, with no separate streaming device required per zone. Hi-res audio to 192kHz/24-bit and MQA content are fully supported. Built-in DSP allows per-zone equalization and audio processing without external hardware. A USB Type-A port enables local drive playback from connected storage.

The BSP200 can be deployed as a standalone single-zone speaker, paired in stereo, or grouped with any number of BSP, BCS, or BluOS streaming players on the same network. The optional WM125-B wall mount adds 15° of tilt and 40° of swivel for precise positioning. An optional bracket provides 40° swivel and 360° rotation. Third-party control integration covers Control4, Crestron, RTI, URC, ELAN, and Lutron, and the optional CP100 wall panel provides on-wall zone control for staff.

Key Features

• PoE+ Single-Cable Installation — PoE+ (802.3at) from a standard managed switch delivers both power and network audio via one Cat5e/6 cable, eliminating AC outlet requirements at the speaker position.
• 3.5-Inch LF and 1-Inch HF Drivers — 45Hz–20kHz coverage, 23W system power, 102dB max SPL (PoE+), and 0.003% THD+N at rated power for clean, clear commercial audio in compact spaces.
• Built-In DSP — Per-zone equalization and audio processing accessible via the BluOS Controller app, eliminating the need for external DSP hardware in most commercial deployments.
• Integrated BluOS Streaming — Full commercial streaming player built in; streams SoundMachine, QSIC, SiriusXM for Business, Spotify, Tidal, Qobuz, and internet radio directly.
• Hi-Res to 192kHz/24-bit with MQA — FLAC, WAV, AIFF, MQA, MP3, AAC, OGG, and WMA formats supported from local network storage or streaming services.

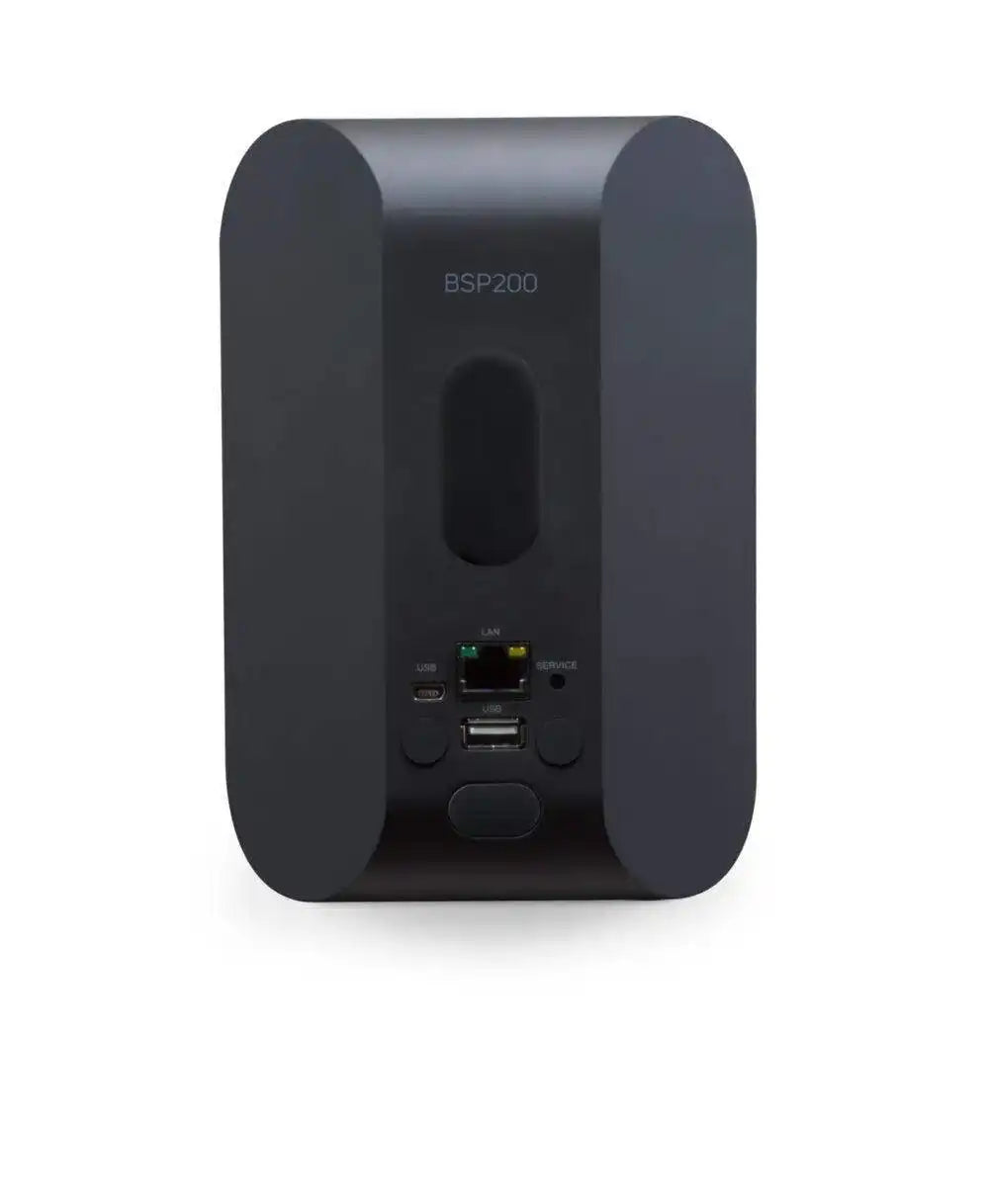

• USB Local Playback — Type-A USB for FAT32 drive playback independent of network streaming.
• Optional Wall Mount Compatibility — Works with the WM125-B bracket for tilt-and-swivel wall mounting in commercial spaces.
• Zone Grouping — Groups with any BluOS device on the network for synchronized multi-zone streaming across a facility.
• Control System Integration — Control4, Crestron, RTI, URC, ELAN, and Lutron supported.

Typical Applications

• Compact zone audio in boutique retail, hotel rooms, and restaurant bar areas
• Office environments and corporate huddle rooms using PoE network infrastructure
• Hospitality spaces — spa rooms, hotel corridors, lobby zones
• Small conference rooms and boardrooms
• House of worship breakout and lobby zones
• Multi-zone commercial installations where AC outlet routing is cost-prohibitive

Technical Specifications

Frequently Asked Questions

Does the BSP200 require a PoE injector or a PoE switch?

The BSP200 requires PoE+ (802.3at). A PoE+ capable managed or unmanaged switch at the rack or IDF is the standard approach. A single-port PoE+ injector can be used for individual speaker deployments or retrofits where the existing switch does not support PoE+.

How does the BSP200 compare to the BSP125?

The BSP200 is PoE-powered via ethernet — no AC outlet needed at the speaker. The BSP125 uses AC power and adds local analog/digital inputs and Wi-Fi. Choose the BSP200 for single-cable PoE installations; choose the BSP125 where local source input or Wi-Fi connectivity is required.

Can multiple BSP200 units be deployed as a stereo pair?

Yes. Two BSP200 units can be paired in stereo, or multiple units can operate as a mono array across a larger space, all managed from the BluOS Controller app or a control system.

Is the WM125 wall mount required for installation?

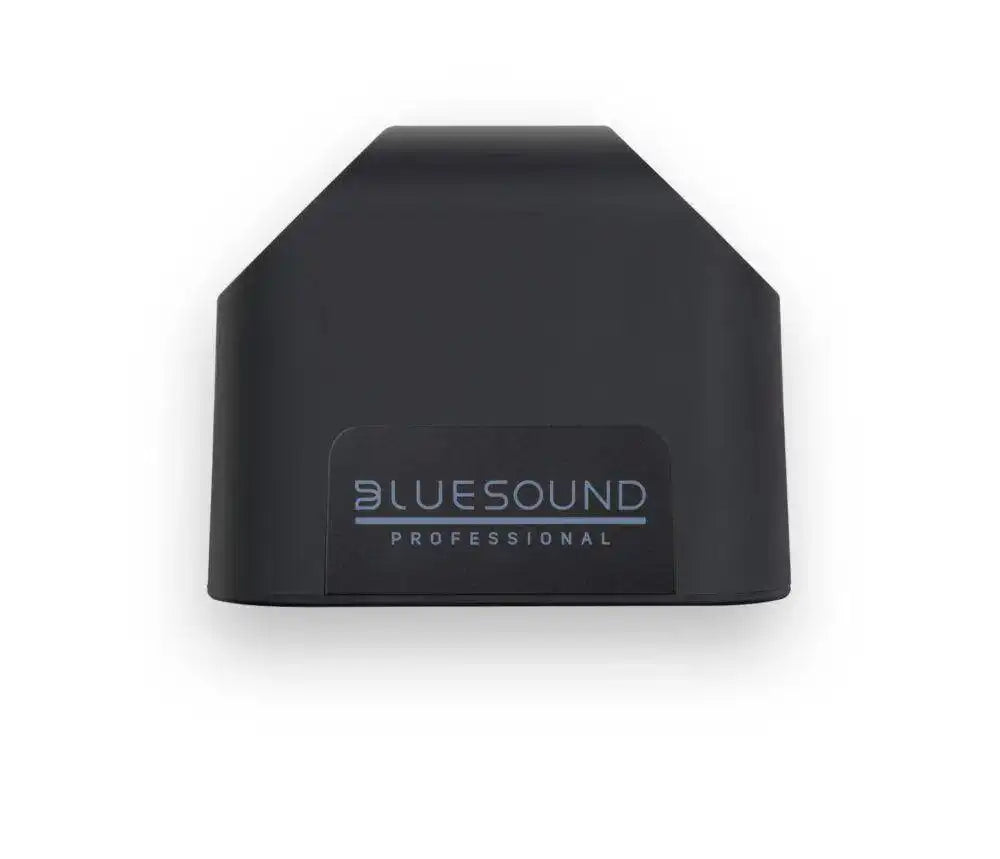

No. The BSP200 includes an integral bracket for basic wall mounting. The optional WM125-B adds 15° of tilt and 40° of swivel for finer aim adjustment.

What is the warranty on the BSP200?

Bluesound Professional products are backed by a manufacturer warranty. Contact Creation Networks at creationnetworks.net for warranty terms.
