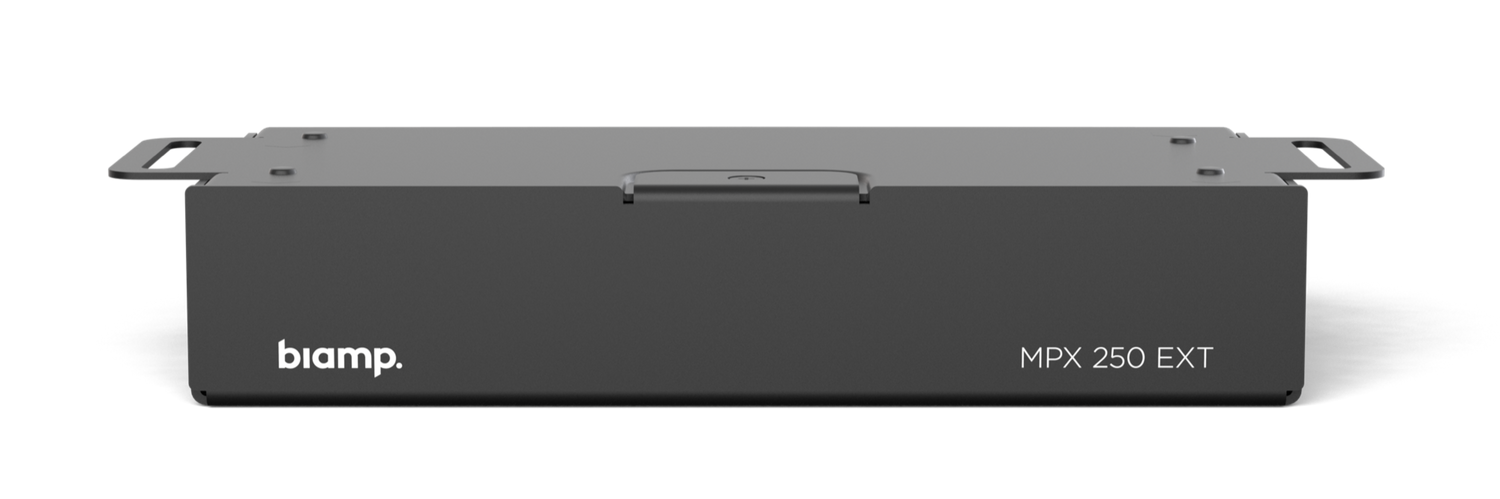

Biamp 920-02276-00001 EasyConnect MPX 250 EXT 30

Product Overview

The Biamp EasyConnect MPX 250 EXT 30 is an extension system that lets an EasyConnect MPX 250 BYOM hub reach room displays and A/V peripherals up to 30 feet away. It solves cable-routing constraints in larger conference rooms and boardrooms, where the connection point at the table sits far from the display wall. The system pairs a compact wall-side connection box with a 30-foot (10-meter) Kevlar-reinforced USB-C active optical cable, carrying video, audio, USB peripherals, and network in a single run. It maintains full MPX 250 functionality on the wall side, so a BYOM room can be laid out without compromise.

Product Description

The MPX 250 EXT 30 is built for AV system integration in rooms where the display side and the conference table are physically separated. The active optical MPX 250 Link cable supports USB-C video up to 8K at 60 Hz, USB 3.2 Gen 2 data up to 10 Gbps, and network connectivity over one plenum-friendly run, with a 200N pull-force rating and detachable electronics that simplify pulling the cable through conduit. The wall-side unit provides an HDMI 2.1 output, a USB-C extension port, a dual-role USB-C port, two USB-A ports, and gigabit Ethernet, and supports dual-display configurations with power delivery up to 100W. This is an accessory to the MPX 250 platform and requires an EasyConnect MPX 250 base unit, sold separately. Browse the full Biamp collection, and pair the extension with the EasyConnect MPX 250 base unit or add a table-side EasyConnect MPX 250 DC. It is a commercial-grade way to keep BYOM connectivity consistent across any room layout.

Key Features

• 30-Foot Reach — Extends MPX 250 connectivity up to 30 feet between the conference table and the display for flexible room layouts.
• Full Feature Pass-Through — Maintains all MPX 250 capabilities on the wall side, including video, audio, and peripheral control.
• Kevlar-Reinforced Optical Cable — The USB-C active optical MPX 250 Link cable carries a 200N pull-force rating with detachable electronics for easier installation.
• High-Bandwidth Video — Supports USB-C video up to 8K at 60 Hz and USB 3.2 Gen 2 data up to 10 Gbps.
• Dual-Display Support — The wall-side unit supports dual-display configurations and power delivery up to 100W.
• Discreet Mounting — The low-profile wall-side box mounts behind a display without compromising functionality.

Typical Applications

• Conference room
• Boardroom
• Huddle room
• Multi-purpose room
• Training room
• Commercial meeting space

Technical Specifications

Specifications sourced from the Biamp EasyConnect MPX 250 EXT 30 data sheet. Confirm detailed specifications against current Biamp documentation.

Frequently Asked Questions

Does the MPX 250 EXT 30 work on its own?
No. It is an extension system that requires an EasyConnect MPX 250 base unit, which is sold separately.

How far can it extend the connection?
The included MPX 250 Link active optical cable is 30 feet (10 meters) long and carries the full MPX 250 feature set to the wall side.

What video resolution does it support?
The system supports USB-C video up to 8K at 60 Hz and an HDMI 2.1 output rated up to 32 Gbps.

Can it drive two displays?
Yes. The wall-side unit supports dual-display configurations and provides power delivery up to 100W.

Is the cable suitable for in-wall or conduit runs?
Yes. The Kevlar-reinforced cable has a 200N pull-force rating and detachable electronics to simplify pulling it through conduit during installation.

What is included in the box?
The system includes the MPX 250 EXT wall-side unit with power adapter and mounting brackets, plus the 30-foot MPX 250 Link active optical cable.
